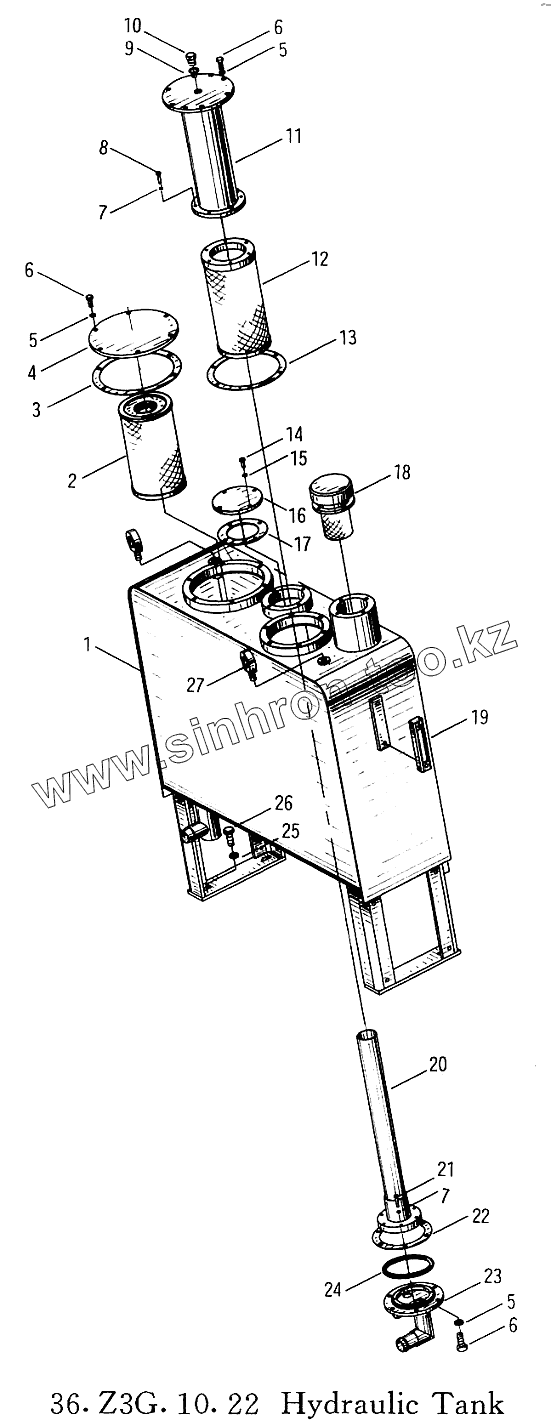

Каталог запасных частей к технике: XCMG ZL30G. Бак гидравлический
1
2
3
4
5
5
5
6
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z3G.10.22.1 | Tank | |
| 2 | Z3.10.6.4A | Filter Assembly | |
| 3 | Z3.10.6A-5 | Washer | |
| 4 | Z3.10.6-6A | Flange Cap | |
| 5 | Diesel Engine Accessories | ||
| 6 | Diesel Engine Accessories | ||
| 7 | Diesel Engine Accessories | ||
| 8 | Diesel Engine Accessories | ||
| 9 | Diesel Engine Accessories | ||
| 10 | ZL50E.7.1.4-1 | Plug M20X1.5 | |
| 11 | Z3G.10.22.2 | Fuel Cover | |
| 12 | Z3.10.6A.4 | Filter Assembly | |
| 13 | Z3.10.6A-1 | Washer | |
| 14 | Diesel Engine Accessories | ||
| 15 | Diesel Engine Accessories | ||
| 16 | Z3.10.6A-3 | Cover | |
| 17 | Z3.10.6A-4 | Washer | |
| 18 | ZL40(X).1.3.5A | Filter Assembly | |
| 19 | YWZ-127 | Gauge Assembly Level | |
| 20 | Z3G.10.22.3 | Joint | |
| 21 | Diesel Engine Accessories | ||
| 22 | Z3G.10.22-1 | Washer | |
| 23 | Z3G.10.22.4 | Joint | |
| 24 | Diesel Engine Accessories | ||
| 25 | Diesel Engine Accessories | ||
| 26 | Diesel Engine Accessories | ||
| 27 | Diesel Engine Accessories |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
