Каталог запасных частей к технике: XCMG ZL30BR. Pilot valve DJS3
1
2
3
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
15
16
17
18
19
20
20
21
22
22
23
24
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

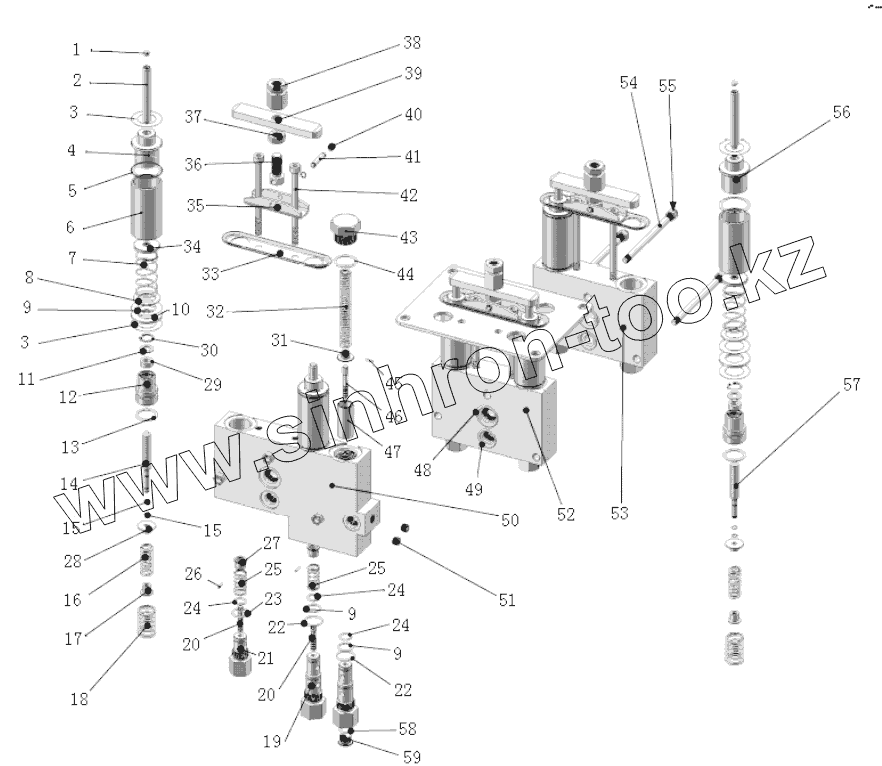

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB308-84 | СТАЛЬНОЙ ШАР 6G1000 | |
| 2 | DJS-5.04-01b | Pressure pin | |
| 3 | DJS-1.05 | Уплотнительная шайба | |
| 4 | DJS-5.18 | Электромагнит | |
| 5 | DJS-5.13 | Шайба | |
| 6 | DJS-5.09 | Втулка | |
| 7 | DJS-5.10 | Пружина | |
| 8 | DJS-5.11 | Шайба | |
| 9 | 801100292 | O-ring | |
| 10 | DJS-1.01 | Washer | |
| 11 | DXS-10-07 | Retaining cap | |
| 12 | DJS-1.02-08c | Protection | |
| 13 | 801100145 | O-ring | |
| 14 | DJS-2.03-03c | Valve lever | |
| 15 | DXS-10-03 | Steel wire ring | |
| 16 | DJS-1.02-04b | Spring | |
| 17 | DXS-10-05 | Spring seat | |
| 18 | DXS-17 | Spring | |
| 19 | DXS-18-01 | Sequence valve | |
| 20 | DXS-16-03 | Valve core gauge | |
| 21 | DXS-16-04 | Measuring valve | |
| 22 | GB/T3452.1-1992 | O-Ring | |
| 23 | GB/T3452.1-1992 | O-Ring | |
| 24 | 801100070 | O-ring | |
| 25 | DXS-16-01 | Spring | |
| 26 | GB879-86 | Штифт 5х20 | |
| 27 | DXS-16-02 | Valve core | |
| 28 | DXS-10-05 | Spring seat | |
| 29 | C1 10 | Retainer | |
| 30 | 805400089 | Spring ring | |
| 31 | DXS-18-03 | Spring base | |
| 32 | DXS-20 | Spring | |
| 33 | DJS-5.06 | Резиновое седло | |
| 34 | DJS-5.08 | Клемма | |
| 35 | DJS-5.14 | Кронштейн | |
| 36 | DJS-5.17 | Болт | |
| 37 | DJS-5.16 | Гайка | |
| 38 | DJS-5.01 | Гайка | |
| 39 | DJS-5.03 | Планка | |
| 40 | 805400033 | Retaining rings | |
| 41 | DJS-5.15 | Шплинт | |
| 42 | GB70-85 | Болт | |
| 43 | DXS-21 | Threaded plug | |
| 44 | 801100025 | O-ring | |
| 45 | GB879-86 | Штифт 5х20 | |
| 46 | DXS-18-02 | Valve core | |
| 47 | DXS-19 | Guide bushing | |
| 48 | GB/T3452.1-1992 | O-Ring | |
| 49 | 801100118 | O-ring | |
| 50 | DJS-2.02a | Boom valve | |
| 51 | DXS-22 | Threaded plug | |
| 52 | DJS-1.06a | Reversible bucket valve | |
| 53 | DJS-3.01a | Reversible bucket valve | |
| 54 | DJS-4.01 | Болт | |
| 55 | GB/T6170-2000 | Гайка M6 | |
| 56 | 805200045 | Гайка М8 | |
| 57 | DJS-1.02-01 | Pressure bar | |
| 58 | GB/T3452.1-1992 | O-Ring | |
| 59 | DXS-18-04 | Threaded plug |
