  5. YL20 Sprinkling System and Water, Pump Assembly

Каталог запасных частей к технике: XCMG YL16 (YL20). YL20 Sprinkling System and Water, Pump Assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
30
31
32
32
32
33
34
35
36
37
38
39
40
41
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
59
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112

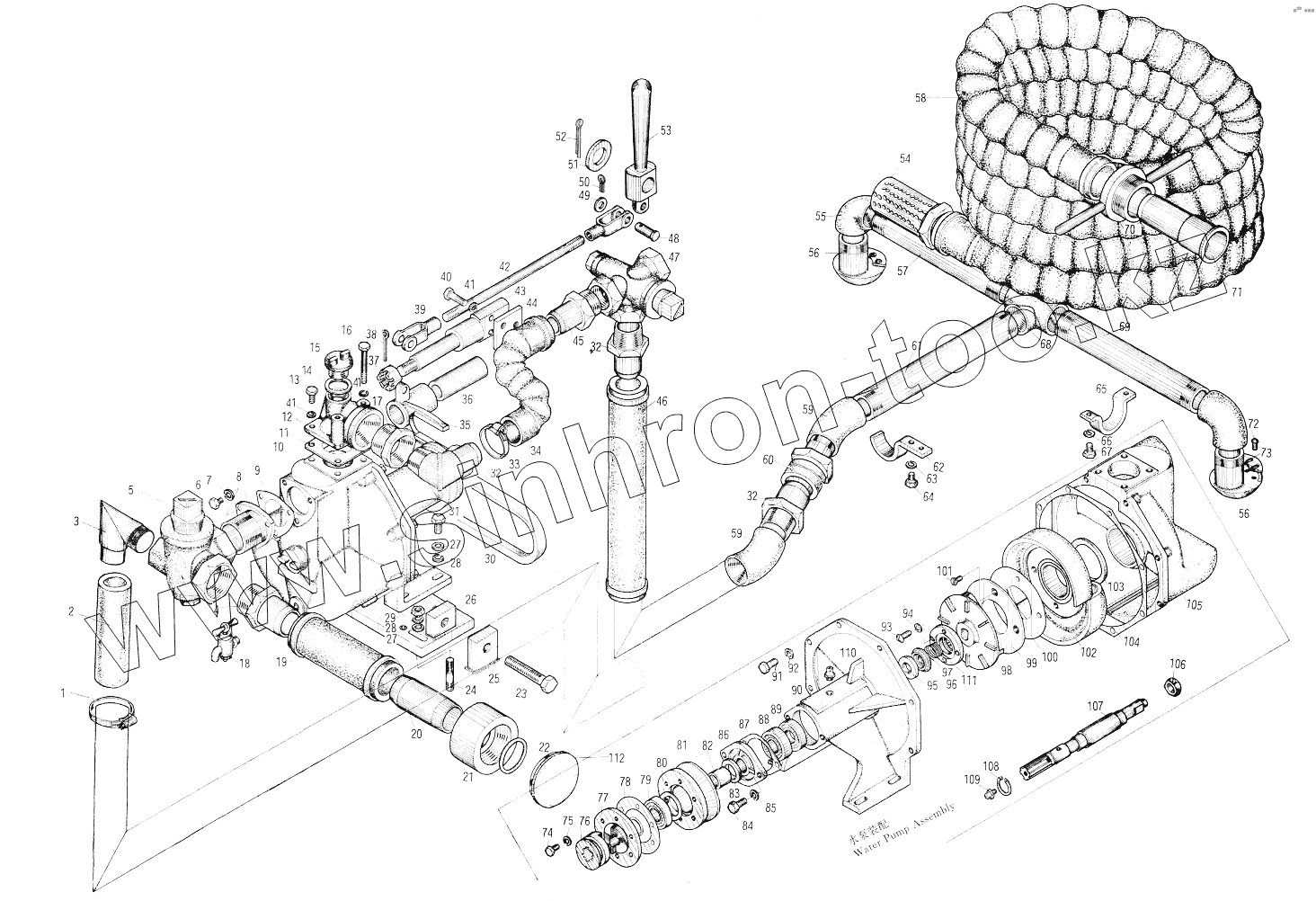

Позиция на иллюстрации Заводской номер детали Название детали
1 Зx/64-76 Hose clip
2 YL20-9-8 Rubber hose 2X200
3 YL20-9-1 Elbow 2
4 YL16-9-1 Union 2
5 X14W-6T Tee cock 1 1/2
6 M8x25/GB5783 Hex. bolt
7 8/GB93 Spring washer
8 YL16-9-3 Union
9 YL16-9-4 Gasket
10 YL16-9-2 Water pump assembly
11 YL16-9-12 Water pipe
12 YL16-9-13 Union
13 M8x25/GB5783 Hex. bolt
14 YL16-9-2-7 Washer
15 YL16-9-2-6 Plug
16 M8x75/GB5782 Hex. bolt
17 YL16-9-14 Reducing nipple
18 X53W-10 Water draining
19 YL20-9-2 Rubber hose 2X350
20 YL16-9-40 Core barrel
21 YL16-9-2 Water pump assembly
22 60x5-7/GB1235 O seal ring
23 YL16-9-6 Adjusting bolt
24 YL16-9-28 Stud
25 YL16-9-5 Adjusting block
26 YL16-9-1 Union 2
27 10/GB97 Flat washer
28 10/GB93 Spring washer
29 M10/GB6170 Hex. nut
30 C-1626/GB1174 V-belt
31 M10x30/GB5783 Hex. bolt
32 YL16-9-7 Union 1 1/2
33 2А/35-57 Hose clip
34 Armoured flexible conduit Armoured flexible conduit
35 YL16-9-25 Shift fork
36 YL16-9-24 Copper sleeve
37 M20x1.5/GB9457 Hex. nut
38 5x45/GB91 Cotter pin
39 3Y15-7-6-11 Fork connector
40 M8x35/GB5783 Hex. bolt
41 8/GB93 Spring washer
42 YL20-9-1 Elbow 2
43 YL16-9-8 Union
44 YL16-9-44 Bearing plate
45 YL16-9-3 Union
46 YL16-9-45 Rubber hose
47 X14W-6T Tee cock 1 1/2
48 A12x38/GB882 Pin
49 12/GB97 Flat washer
50 3x16/GB91 Cotter pin
51 30/GB97 Flat washer
52 5x50/GB91 Cotter pin
53 YL16-9-10 Handle
54 YL16-9-7 Union 1 1/2
55 SB4003-65 90-elbow 3/4
56 YL16-9-5 Adjusting block
57 YL16-9-39 Water pipe
58 Armoured flexible conduit Armoured flexible conduit
59 SB4007-65 45-elbow 1 1/2
60 YL16-9-48 Rubber hose 1 1/2X930
61 YL20-9-9 Water pipe
62 YL16-9-17 Clamp
63 8/GB93 Spring washer
64 M8x16/GB5783 Hex. bolt
65 YL16-9-38 Clamp
66 8/GB93 Spring washer
67 M8x16/GB5783 Hex. bolt
68 SB4014-65 Tee 1 1/2
69 YL16-9-36 Water pipe
70 YL16-9-8 Union
71 YL16-9-37 Core barrel
72 M6x10/GB67 Screw
73 YL16-9-5-1 Clamp
74 M6x16/GB5783 Hex. bolt
75 6/GB93 Spring washer
76 YL16-9-2-19 Sliding ratchet
77 YL16-9-2-20 Toothed plate
78 YL16-9-2-22 Adjusting shim
79 205/GB276 Bearing
80 YL16-9-2-23 Bearing pad
81 YL16-9-2-21 Pulley
82 YL16-9-2-24 Bearing bushing
83 YL16-9-2-18 Seal ring
84 M8x25/GB5783 Hex. bolt
85 8/GB93 Spring washer
86 YL16-9-2-17 End cover
87 YL16-9-2-16 Gasket
88 305/GB276 Bearing
89 160205/GB279 Bearing
90 YL16-9-2-15 Cover
91 M8x25/GB5783 Hex. bolt
92 8/GB93 Spring washer
93 6x20/GB67 Button head screw
94 6/GB93 Spring washer
95 YL16-9-2-26 Oil seal
96 YL16-9-2-27 Oil seal cover
97 YL16-9-2-9 Spring
98 YL16-9-2-5 Vane wheel
99 YL16-9-2-1 Press cover
100 YL16-9-2-10 Packing
101 M6x12/GB68 Counter sunk screw
102 YL16-9-2-2 Turbo body
103 YL16-9-2-3 Packing
104 YL16-9-2-11 Fibre pad
105 YL16-9-2-4 Housing
106 YL16-9-2-8 Left-hand thread
107 YL16-9-2-25 Water pump shaft
108 25/GB894 Snap ring
109 M6/GB1153 Elbow grease nipple
110 M10x1/GB1152 Nipple
111 YL16-9-2-28 Spring housing
112 YL16-9-51 Cover
