Каталог запасных частей к технике: XCMG YL16 (YL20). YL20 Rear Wheel Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

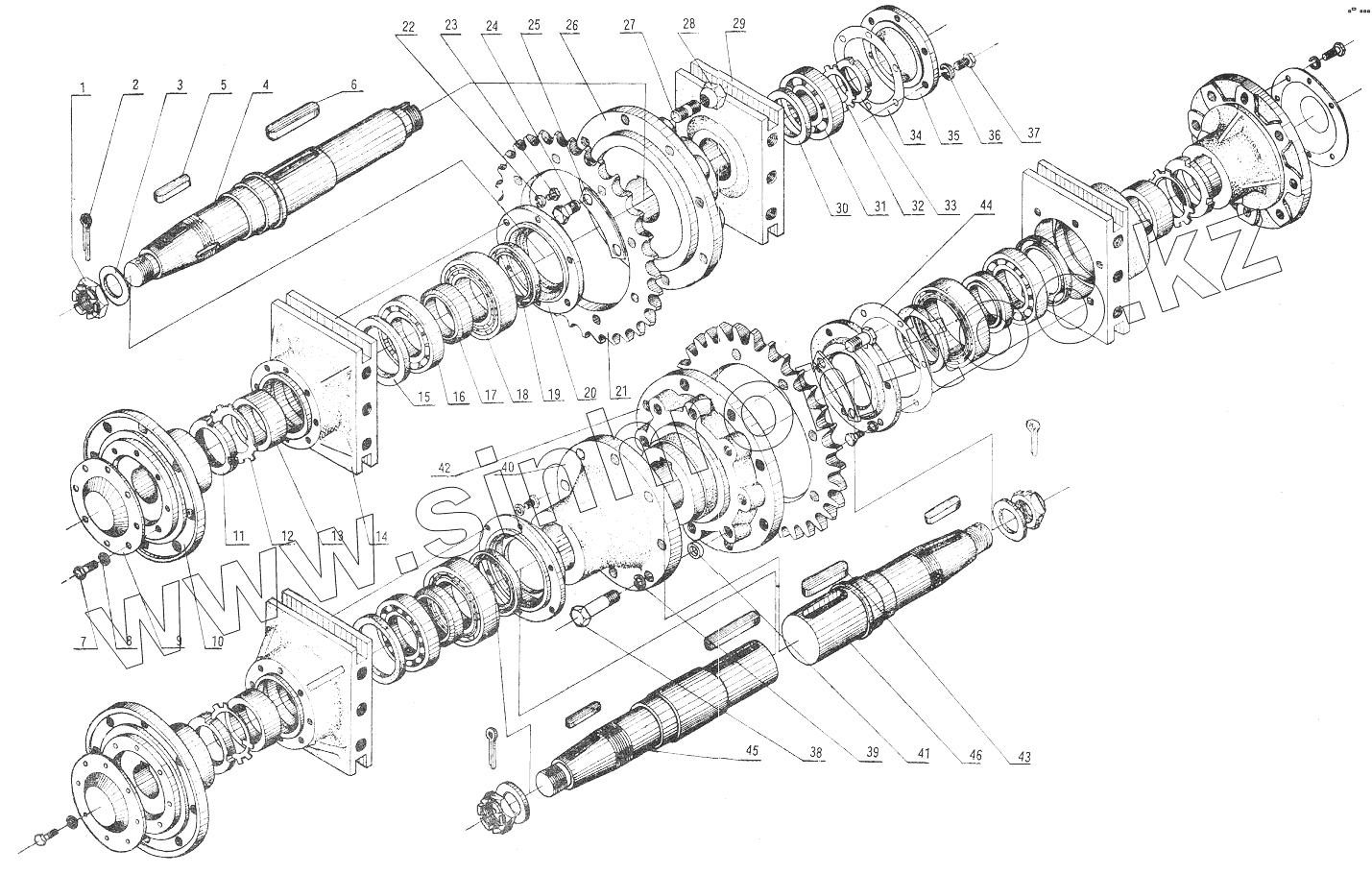

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | YL16-1-5 | Rear wheel axle nut | |
| 2 | 8x100/GB91 | Cotter pin | |
| 3 | YL16-1-6 | Stop ring | |
| 4 | YL20-2-1 | Rear wheel shaft | |
| 5 | 25x100/GB1096 | Flat key | |
| 6 | 28x140/GB1096 | Flat key | |
| 7 | M8x16/GB5783 | Hex. bolt | |
| 8 | 8/GB93 | Spring washer | |
| 9 | YL16-1-4 | Rear shaft end guard cover | |
| 10 | YL20-1-1 | Rear tyre seat | |
| 11 | M90x2/GB812 | Locknut | |
| 12 | 90/GB858 | Lockwasher | |
| 13 | YL16-1-10 | Rear axle sleeve | |
| 14 | YL20-1-3 | Rear axle adjusting bearing seat | |
| 15 | В-120x150x12/ GB9877-1 | Skeleton oil seal | |
| 16 | 218/GB276 | Single row self-aligning ball bearing | |
| 17 | YL16-1-11 | Rear axle sleeve | |
| 18 | 3520/GB286 | Double row spherical bearing | |
| 19 | В-110x140x12/ GB9877-1 | Skeleton oil seal | |
| 20 | YL16-1-12 | Bearing cover | |
| 21 | YL20-1-5 | Large chain wheel | |
| 22 | 12/GB93 | Spring washer | |
| 23 | М12x1.25x30/GB5786 | Hex. bolt | |
| 24 | М20x1.5x55/GB5786 | Hex. bolt | |
| 25 | YL20-1-9 | Shim | |
| 26 | YL20-2-2 | Chain wheel seat | |
| 27 | YL16-2-2 | Tyre stud | |
| 28 | М20x1.5/ СА20-310 3018 | Rim nut | |
| 29 | YL16-2-6 | Adjusting bearing seat | |
| 30 | 13-90x120x12/ GB9877-1 | Skeleton oil seal | |
| 31 | 1314/GB281 | Double row spherical bearing | |
| 32 | 64/GB858 | Lock washer | |
| 33 | M64x2/GB812 | Locknut | |
| 34 | YL16-2-5 | Fibre pad | |
| 35 | YL16-2-4 | Shaft end cover | |
| 36 | 12/GB93 | Spring washer | |
| 37 | M12x1.25x30/GB21 | Hex. bolt | |
| 38 | M20x1.5x70/GB5786 | Bolt | |
| 39 | 20/GB93 | Spring washer | |
| 40 | YL20-1-4 | Rear wheel coupling | |
| 41 | YL16-1-14 | Washer | |
| 42 | YL20-1-6 | Rear wheel coupling | |
| 43 | 32x130/GB1096 | Flat key | |
| 44 | YL16-1-19 | Fibre pad | |
| 45 | YL20-1-2 | Rear wheel axle (A) | |
| 46 | YL20-1-8 | Rear wheel axle (B) |
