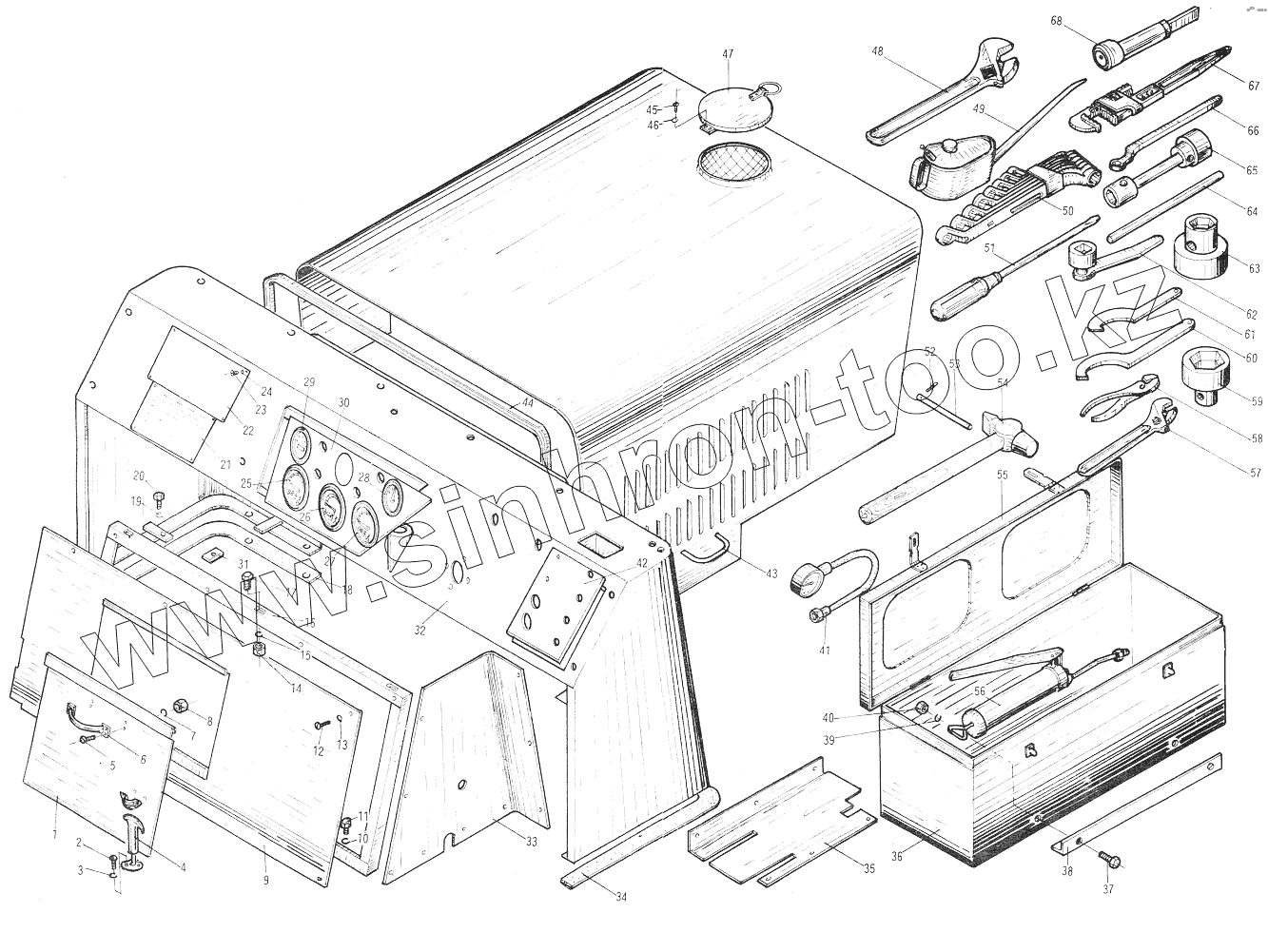

Каталог запасных частей к технике: XCMG YL16 (YL20). YL20 Instrument Box Housing and Tool Box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | YL16-12-11 | Cover plate | |
| 2 | M5x12/GB67 | Button head screw | |
| 3 | 5/GB93 | Spring washer | |
| 4 | Hood catch | Hood catch | |
| 5 | M5x12/GB68 | Counter sunk screw | |
| 6 | Door handle 5 | Door handle 5 | |
| 7 | 5/GB93 | Spring washer | |
| 8 | M5/GB6170 | Hex. nut | |
| 9 | YL16-12-10 | Cover plate | |
| 10 | 8/GB93 | Spring washer | |
| 11 | M8x20/GB5783 | Hex. bolt | |
| 12 | 5x12/GB67 | Button head screw | |
| 13 | 5/GB93 | Spring washer | |
| 14 | M8/GB6170 | Hex. nut | |
| 15 | 8/GB93 | Spring washer | |
| 16 | YL16-12-3 | Housing frame | |
| 17 | 8x20/GB5783 | Small hex. bolt | |
| 18 | YL16-12-4 | Rubber pad | |
| 19 | 10/GB93 | Spring washer | |
| 20 | M10x40/GB5783 | Hex. bolt | |
| 21 | YL16-12-13 | Name plate | |
| 22 | YL20-12-1 | Instrument box | |
| 23 | M4x10/GB67 | Button head screw | |
| 24 | 4/GB93 | Spring washer | |
| 25 | Oil temperature gage | Oil temperature gage | |
| 26 | Water temperature gage | Water temperature gage | |
| 27 | Oil pressure gage | Oil pressure gage | |
| 28 | Amperemeter | Amperemeter | |
| 29 | SG-3-24V | Timer | |
| 30 | YL20-10-2 | Left instrument board | |
| 31 | YL16-11-10 | Nut | |
| 32 | YL20-12-1 | Instrument box | |
| 33 | YL20-12-2 | Right side plate | |
| 34 | YL16-12-5 | Rubber pad | |
| 35 | YL20-12-3 | Right cover plate | |
| 36 | YL16-00-4-1a | Tool box body | |
| 37 | M8x16/GB5783 | Hex. bolt | |
| 38 | YL16-00-4-1a | Tool box body | |
| 39 | 8/GB93 | Spring washer | |
| 40 | M8/GB6170 | Hex. nut | |
| 41 | DI-11 | Manometer | |
| 42 | YL20-12-1 | Instrument box | |
| 43 | YL20-00-1-1 | Diesel engine housing | |
| 44 | S61F-07003 | Seal stuffing | |
| 45 | M4x16/GB68 | Counter sunk screw | |
| 46 | 4/GB93 | Spring washer | |
| 47 | YL16-00-1-1 | Diesel engine housing | |
| 48 | Adjustable wrench | Adjustable wrench | |
| 49 | Oil can | Oil can | |
| 50 | Double-end ring spanner | Double-end ring spanner | |
| 51 | Screw driver 10 | Screw driver 10 | |
| 52 | 2x16/GB879 | Pin | |
| 53 | 10x110/GB91 | Cotter pin | |
| 54 | Hammer | Hammer | |
| 55 | YL16-00-4-2а | Box cover | |
| 56 | Grease gun | Grease gun | |
| 57 | Adjustable wrench | Adjustable wrench | |
| 58 | Pliers | Pliers 6 | |
| 59 | YL16-00-4-10 | Socket spanner | |
| 60 | YL16-00-4-9 | Hook spanner | |
| 61 | YL16-00-4-6 | Hook spanner | |
| 62 | YL16-00-4-2 | Box cover | |
| 63 | YL16-00-4-7 | Socket spanner | |
| 64 | YL16-00-4-5 | Crowbar | |
| 65 | YL16-00-4-4 | Socket spanner | |
| 66 | YL16-00-4-3 | Spanner | |
| 67 | Pipe wrench | Pipe wrench 18 | |
| 68 | Manometer | Manometer |
