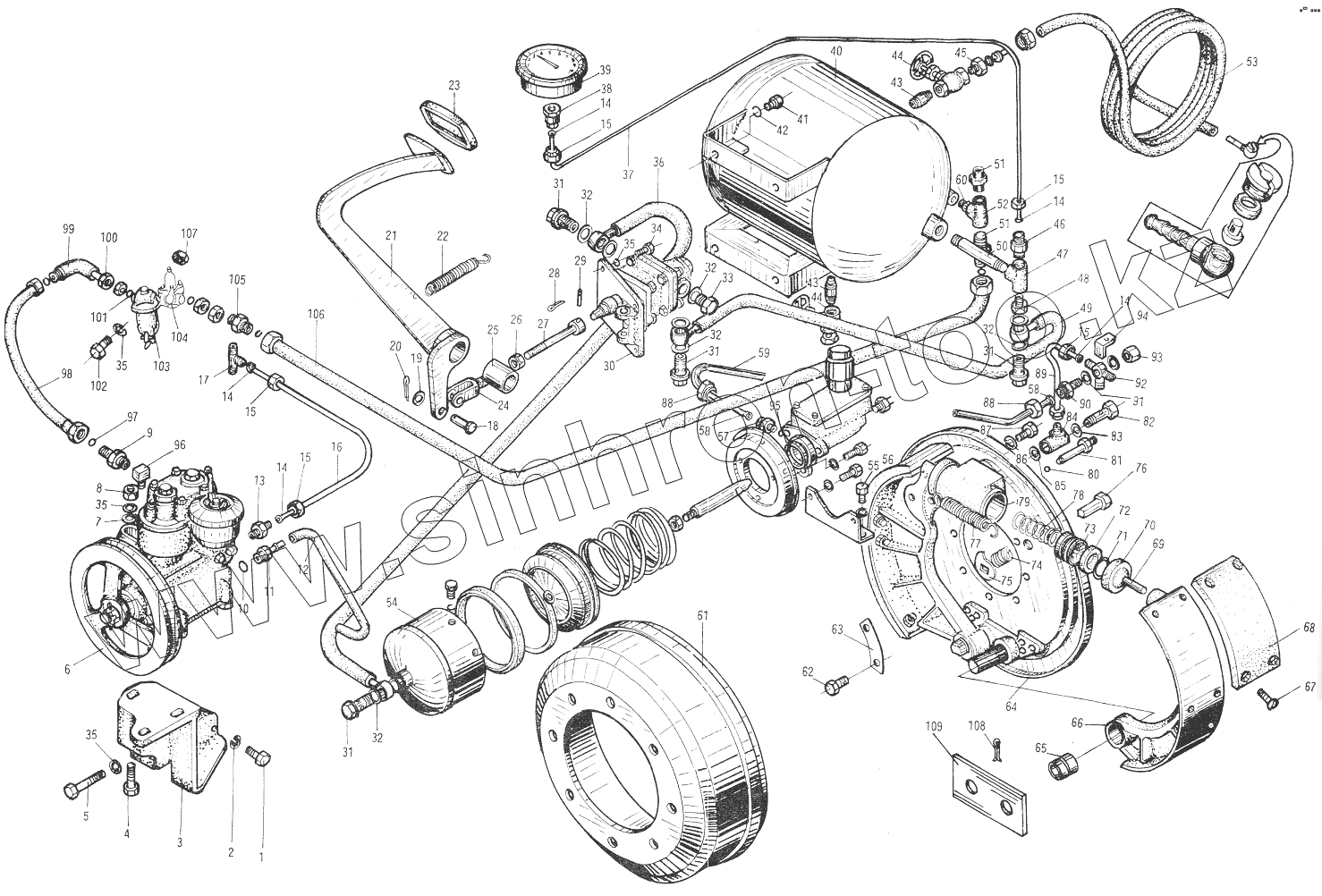

Каталог запасных частей к технике: XCMG YL16 (YL20). YL20 Foot Brake System

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
14
15
15
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
31
32
32
32
32
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
43
44
44
45
46
47
48
49
50
51
51
52
53
54
55
56
57
58
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
Позиция на иллюстрации Заводской номер детали Название детали
1 M10x30/GB5783 Hex. bolt
2 10/GB93 Spring washer
3 YL16-3-2-8a Air pump seat
4 M12x60/GB5782 Hex. bolt
5 M12x85/GB5782 Hex. bolt
6 EQ-140 Air pump
7 12/GB97-2 Flat washer
8 M12/GB6170 Hex. nut
9 YL16-3-2-12a Union
10 YL16-3-2-6 Washer
11 YL16-3-2-7 Union
12 d.10x1.5x800 Plastic hose
13 YL16-3-2-3 Union
14 YL16-3-7 Union
15 YL16-3-9 Nut
16 d.6x1x1100 Copper pipe
17 YL16-3-2-5 Tee
18 12x38/GB882 Pin
19 12/GB97-2 Flat washer
20 4x26/GB91 Cotter pin
21 YL16-3-1 Foot pedal
22 YL16-8-2-7 Tension spring
23 3Y15-7-6-2-7 Foot pedal pad
24 3Y15-7-6-11 Fork connector
25 YL16-8-2-8 Shaft sleeve
26 M12/GB6170 Hex. nut
27 YL16-3-3 Pushing rod
28 1.5x12/GB91 Cotter pin
29 YL16-3-27 Pin
30 JN150-3514011 Brake control valve
31 М22x1.5x40/JB999 Bolt
32 22/JB1002 Washer
33 М22x1.5/JB.1000 Plug
34 M8x25/GB5783 Hex. bolt
35 8/GB93 Spring washer
36 G75-3L=1200 Rubber canvas hose
37 6x1x2200 Copper pipe
38 YL16-3-8 Union
39 YT-3 Brake pressure gage
40 YL16-3-5-1 Air reservoir
41 M12x20/GB5783 Bolt
42 12/GB93 Spring washer
43 YL16-3-5-3 Tube
44 03.авг Copper valve
45 YL16-3-5-2 Union
46 YL16-3-5-6 Union
47 15 Tee
48 YL16-3-5-5a Union
49 G75-3 Rubber canvas hose
50 YL16-3-5-8 Connecting tube
51 YL16-3-2-12а Union
52 10 Elbow
53 Air hose assembly Air hose assembly
54 xМ-60С Booster cylinder
55 1M10x25/GB5783 Small hex. bolt
56 10/GB93 Spring washer
57 YL16-3-6-5 Union
58 YL16-3-16 Union
59 d.10x1x1500 Copper tube
60 YL16-3-5-9 Connecting tube
61 YL20-1-7 Brake hub
62 M12x1.5x40/GB5786 Hex. bolt
63 YL16-1-9 Shim
64 YL20-1-1-1 Brake plate
65 YL20-1-1-2-3 Fulcrum pin bush
66 YL20-1-1-2-1 Brake shoe
67 8x16/GB875 Rivet
68 YL20-1-1-2-2 Braking block
69 YL20-1-1-3-6 Brake roller
70 YL20-1-1-3-5 Rubber cap
71 47.5x3.55/GB3452-1 O-seal ring
72 YL20-1-1-3-3 Oil seal
73 YL20-1-1-3-2 Brake piston
74 YL16-1-1-12 Spring
75 YL16-1-1-13 Cam
76 YL16-1-1-11 Brake shoe lockpin
77 YL16-1-1-1 Brake shoe return spring
78 YL20-1-1-3-4 Spring
79 YL20-1-1-3-1 Brake pump body
80 d.8/GB308 Steel ball
81 YL16-3-9-6 Oil output union
82 YL16-3-9-9 Oil inlet bolt
83 YL16-3-9-10 Washer
84 YL16-3-9-8 Oil input union
85 YL16-3-9-11 Washer
86 14/GB93 Spring washer
87 M14x40/GB5783 Hex. bolt
88 YL16-3-2 Nut
89 d.6x1 Copper pipe
90 YL16-3-19 Union
91 YL16-3-21 Washer
92 YL16-3-18 Tee
93 YL16-3-20 Nut
94 YL16-3-17 Angle steel
95 YL16-3-6-12 Washer
96 YL16-3-2-13 Union
97 16x2.4/GB1235 O-seal ring
98 G75-0 Rubber canvas hose
99 YL16-3-29 Union
100 M22x1.5/GB6173 Nut
101 24x2.4/GB1235 O-seal ring
102 M8x85/GB5782 Bolt
103 JN150-351100 Oil-water separator
104 JN150-3512010 Pressure governor
105 YL16-3-1 Foot pedal
106 G75-0 Rubber canvas hose
107 M8/GB6170 Hex. nut
108 3x50/GB91 Pin
109 YL20-1-1-1 Brake plate
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
