Каталог запасных частей к технике: XCMG YL16 (YL20). YL20 Electrical Eguipment and Lamps

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

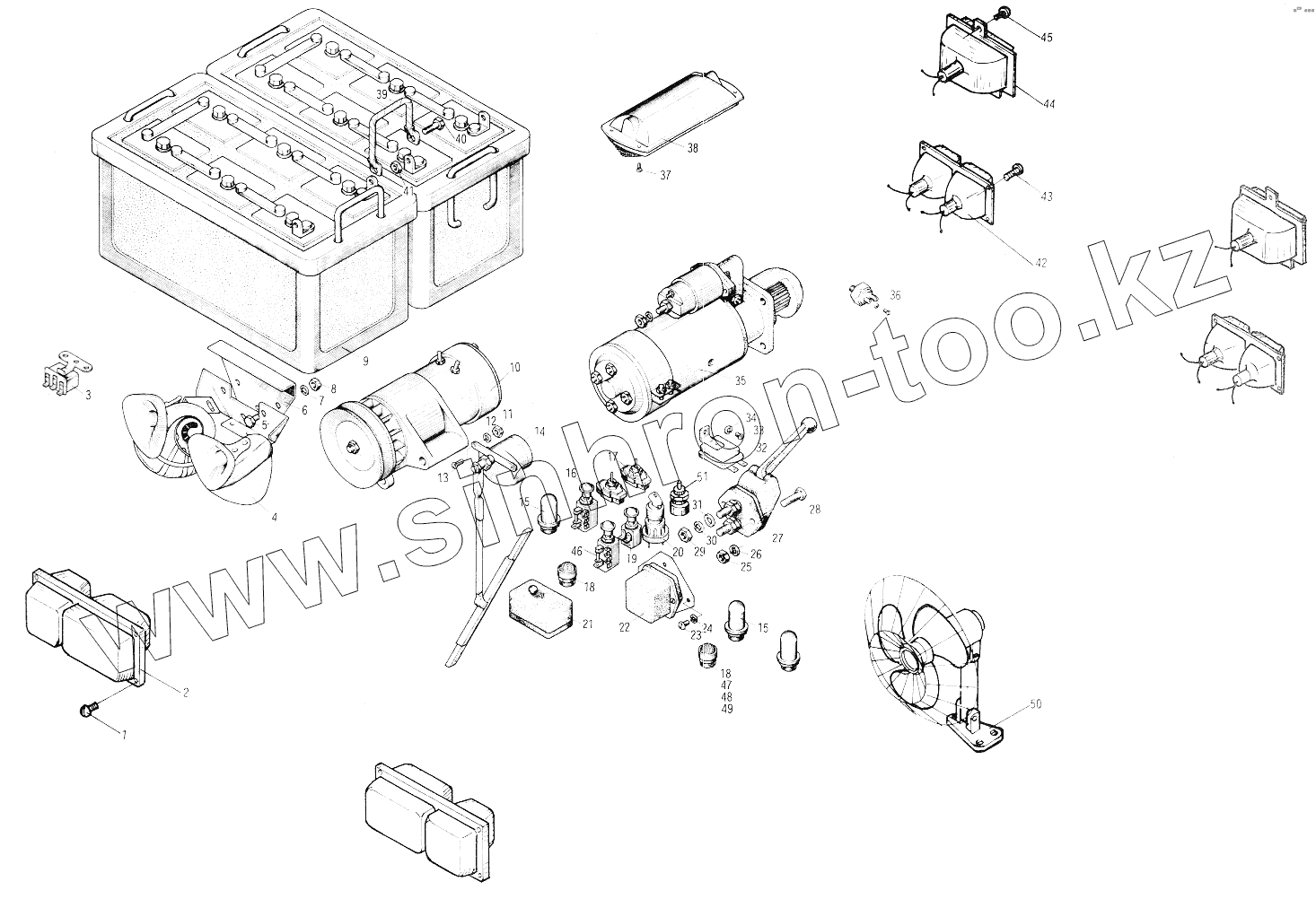

Позиция на иллюстрации Заводской номер детали Название детали
1 M5x10/GB67 Button head screw
2 DJ165 Front lamp 24V
3 Horn relay Horn relay
4 DL79DG Two-sound horn 24V
5 M8x16/GB5783 Hex. bolt
6 3Y15A-9-11 Horn holder
7 8/GB93 Spring washer
8 M8/GB6170 Hex. nut
9 6-Q-150 Storage battery
10 3JF-500A Generator
11 M6/GB6170 Hex. nut
12 6/GB93 Spring washer
13 M6x25/GB67 Button head screw
14 ZD2132 Electric wiper 24V
15 Instrument lamp Instrument lamp
16 JK107 Two-position switch
17 JK412-1 Instrument lamp switch
18 3Y15-7-8-1 Instrument lamp union
19 JK106 Single-position switch
20 JK411 Ignition switch
21 Bx503 Fuse box
22 FT221 Relay regulator
23 M5x10/GB67 Button head screw
24 5/GB93 Spring washer
25 M8/GB6170 Hex. nut
26 8/GB93 Spring washer
27 JB561 Power switch
28 M8x20/GB5783 Hex. bolt
29 M10/GB6170 Hex. nut
30 10/GB93 Spring washer
31 10/GB97 Flat washer
32 SG224A Flash relay
33 M5x16/GB67 Button head screw
34 5/GB93 Spring washer
35 Starter 24V Starter 24V
36 JK613 Hydraulic brake lamp switch
37 M4x16/GB68 Counter sunk screw
38 N-216x80 Long top lamp 24V
39 Battery wire Battery wire 50(mm)2
40 M8x20/GB5783 Hex. bolt
41 M8/GB6170 Hex. nut
42 DJ188 Rear small lamp 24V
43 M5x10/GB67 Button head screw
44 DJ165 Front lamp 24V
45 M4x10/GB67 Button head screw
46 JK108 Three-position switch
47 DS22-1 Signal lamp housing
48 N22-1 Signal lamp seat
49 QT24-1.5 Singal lamp 24V
50 ZDS-250 Wall fan 24V
51 JK260 Выключатель стартера
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
