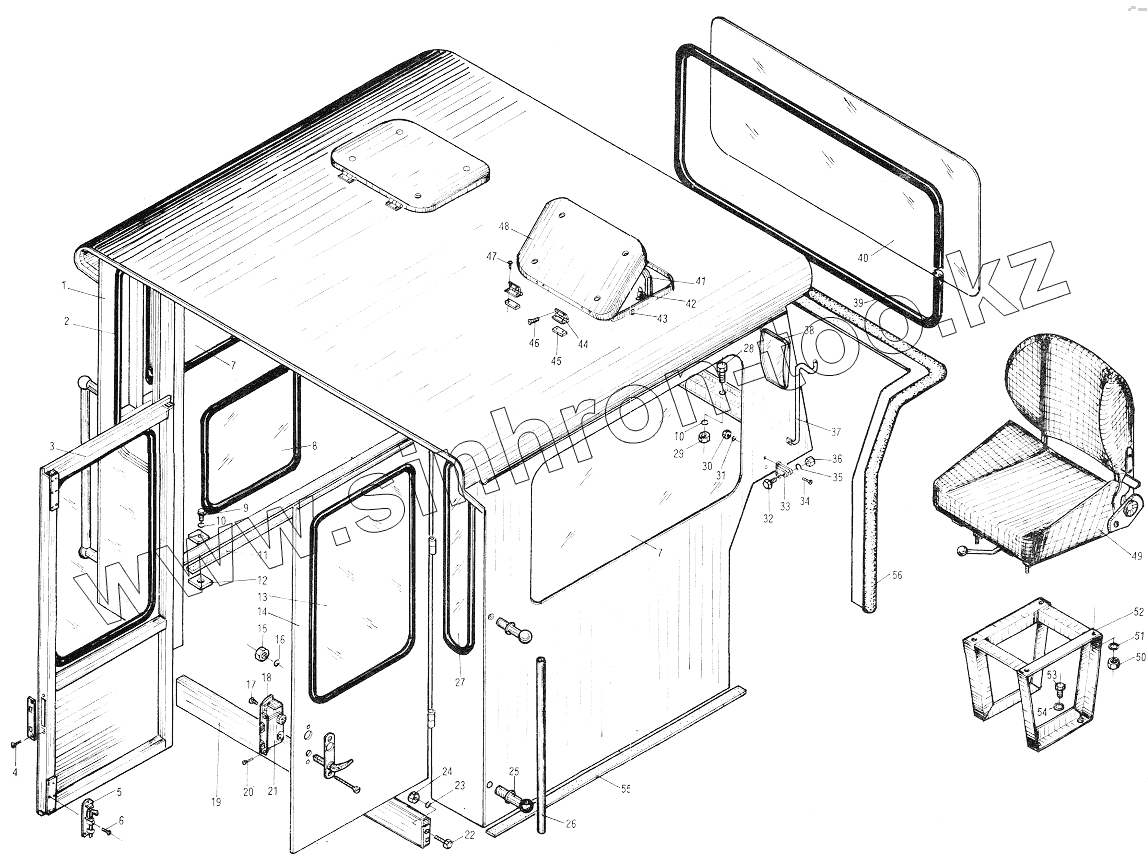

Каталог запасных частей к технике: XCMG YL16 (YL20). YL20 Cab and Seat

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
Позиция на иллюстрации Заводской номер детали Название детали
1 YL16-11-1 Cab frame
2 YL16-11-4 Glass
3 YL16-11-8 Right door
4 M5x10/GB68 Counter sunk screw
5 Driven-in pin 5 Driven-in pin 5
6 M4x15/GB68 Counter sunk screw
7 Siele window Siele window
8 YL16-11-6 Glass
9 M10x40/GB5783 Hex. bolt
10 10/GB93 Spring washer
11 YL16-11-8 Right door
12 YL16-11-10 Nut
13 YL16-1W-3 Glass
14 YL16-11-7 Glass
15 M14/GB6170 Hex. nut
16 14/GB93 Spring washer
17 M5x10/GB68 Counter sunk screw
18 YL16-11-3 Lock seat
19 YL16-11-6 Glass
20 M5x10/GB68 Counter sunk screw
21 9141S8 Door plate lock
22 M8x45/GB68 Button head screw
23 8/GB93 Spring washer
24 M8/GB6170 Hex. nut
25 YL16-11-5-2 Support
26 YL16-11-5-1 Steel pipe
27 YL16-11-7 Glass
28 M10x40/GB5783 Hex. bolt
29 M10/GB6170 Hex. nut
30 M6/GB6170 Hex. nut
31 6/GB93 Spring washer
32 M8x25/GB5/83 Hex. bolt
33 YL16-11-9 Support
34 M6x18/GB67 Button head screw
35 8/GB93 Spring washer
36 M8/GB6170 Hex. nut
37 YL16-11-1 Cab frame
38 50 Mirror
39 Lath, fillet Lath, fillet
40 YL16-11-2 Glass
41 YL16-11-4-2 Small support
42 M8/GB6172 Wing nut
43 M8/GB6170 Hex. nut
44 Hinge 2 Hinge 2
45 YL16-11-4-1 Packing-block
46 M4x10/GB68 Counter sunk screw
47 M4x10/GB68 Counter sunk screw
48 YL16-11-4-1 Packing-block
49 Seat Seat
50 M8/GB6170 Hex. nut
51 8/GB93 Spring washer
52 YL16-00-5-1 Chair leg
53 M10x25/GB5783 Hex. bolt
54 10/GB93 Spring washer
55 YL16-11-9 Support
56 9 pad 9 pad
