  5. YL16 Gear Box Fittings and Hand Brake

Каталог запасных частей к технике: XCMG YL16 (YL20). YL16 Gear Box Fittings and Hand Brake

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
85
86
87
88
89
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132

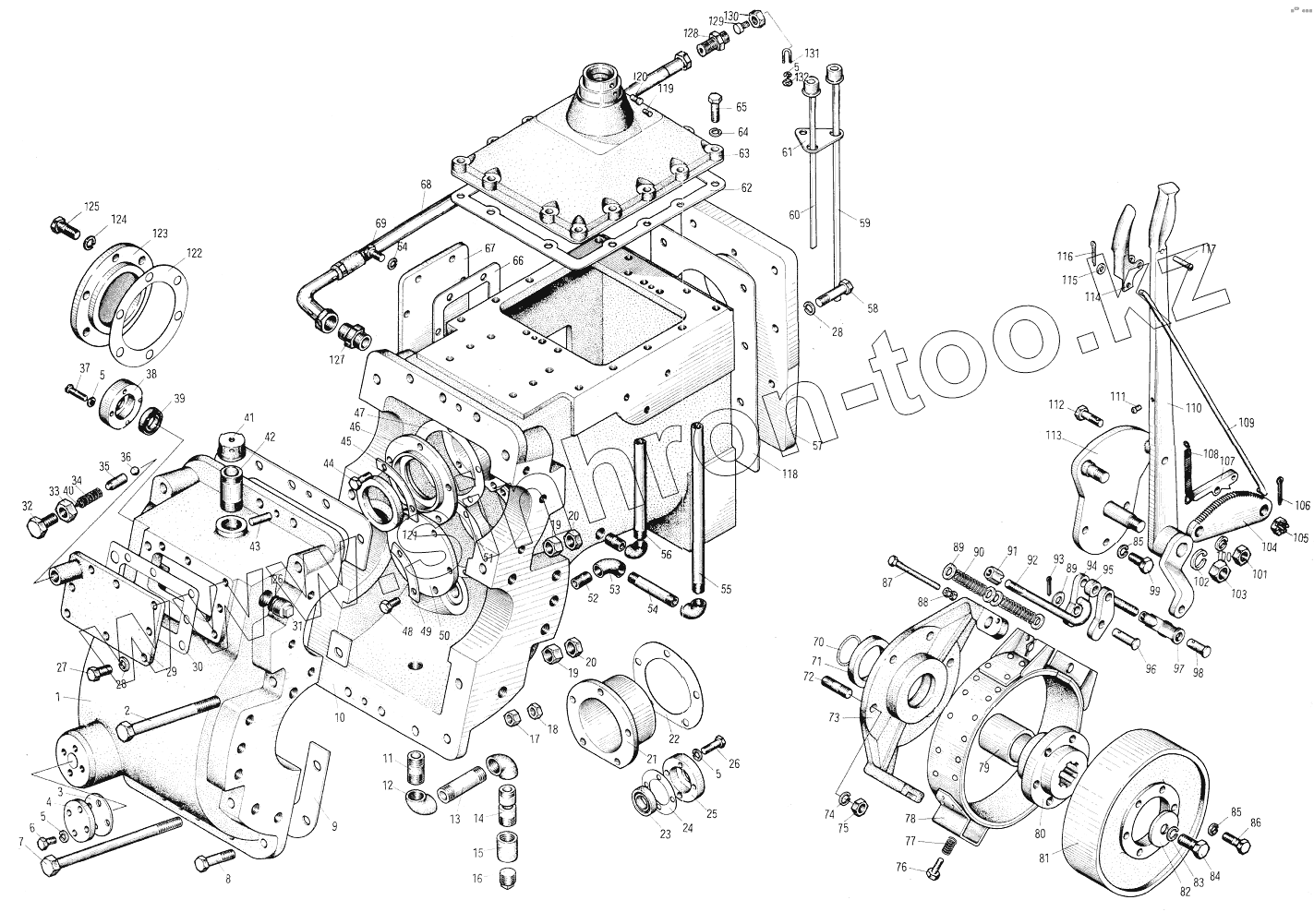

Позиция на иллюстрации Заводской номер детали Название детали
1 YL16-4-6 Gear box cover
2 3Y15-4-10 Bolt
3 3Y15-4-36 Gasket
4 3Y15-4-35 Pressure cover
5 8/GB93 Spring washer
6 M8x25/GB5783 Hex. bolt
7 3Y15-4-20 Bolt
8 M14x60/GB5783 Hex. bolt
9 3Y15-4-8 Gasket
10 YL16-4-2 Gear box body
11 YL16-4-9 Connecting pipe
12 GB3289-2-82 90 elbow
13 YL16-4-11 Connecting pipe
14 YL16-4-10 Connecting pipe
15 GB3289-22-82 Connector 3/4
16 GB3289-31-82 Plug 3/4
17 M14/GB6170 Hex. nut
18 M14/GB6174 Flat hex. nut
19 M18/GB6170 Hex. nut
20 M18/GB6170 Hex. nut
21 3Y15-4-6 Bearing sleeve
22 3Y15-4-7 Gasket
23 CA10-350907 Oil seal
24 3Y15-4-36 Gasket
25 3Y15-4-35 Pressure cover
26 M8x35/GB5783 Hex. bolt
27 M12x30/GB5783 Hex. bolt
28 12/GB93 Spring washer
29 YL16-4-7 Cover
30 YL16-4-8 Gasket
31 M27x2/JB1000 Pipe
32 M18x45/GB5783 Hex. bolt
33 M18/GB6170 Hex. nut
34 3Y15-4-16 Spring
35 YL16-4-17 Spring retainer
36 9/16VGB308 Steel ball
37 M8x20/GB67 Button head screw
38 3Y15-4-14 Gland
39 30x3.1/GB1235 O-ring
40 3Y15-4-17 Spring retainer
41 3Y15-4-7-1 Exhaust pipe cap
42 3Y15-4-7-3 Air pipe
43 10x40/GB117 Pin
44 M10x30/GB5783 Hex. bolt
45 3Y15-4-23 Check shim
46 3Y15-4-21 Shaft end cover
47 3Y15-4-22 Gasket
48 M10x25/GB5783 Hex. bolt
49 3Y15-4-24 Check shim
50 3Y15-4-25 Retaining cover
51 3Y15-4-26 Gasket
52 YL16-4-14 Connecting pipe
53 GB3289-2-82 90 elbow
54 YL16-4-12 Tube
55 YL16-4-13 Dip tube
56 YL16-4-15 Dip tube
57 YL16-4-3 Bearing clamp
58 M12x55/GB5782 Hex. bolt
59 3Y15-4-10 Bolt
60 3Y15-4-12 Cover plate
61 YL16-4-1 Oil tube clip
62 3Y15-4-4 Packing
63 3Y15A-4-3 Gear shift housing
64 10/GB93 Spring washer
65 M10x40/GB5783 Hex. bolt
66 3Y15-4-13 Fibre pad
67 3Y15-4-12 Cover plate
68 GB8065-1-88 Hose 13
69 M10x25/GB5783 Hex. bolt
70 60x3.1/GB1235 O-ring
71 HG4-692-72 Skeleton oil seal d.65xd.90x12
72 AM14x30/GB900 Stud
73 YL16-4-5-12 Brake bracket
74 14/GB93 Spring washer
75 M14/GB6170 Hex. nut
76 M8x30/GB5783 Hex. bolt
77 YL16-4-5-1.1 Spring
78 YL16-4-5-4 Brake belt
79 YL16-4-5-15 Strut pipe
80 YL16-4-5-14 Brake hub
81 YL16-4-5-13 Brake drum
82 YL16-4-5-10 Clamp
83 16/GB93 Spring washer
84 M16x1.5x40/GB5786 Hex. bolt
85 12/GB93 Spring washer
86 M12x40/GB5783 Hex. bolt
87 YL16-4-5-6 Bolt
88 M6/GB6170 Hex. nut
89 12/GB97-2 Flat washer
90 YL16-4-5-9 Spring
91 YL16-4-5-8 Nut
92 YL16-4-5-7 Tension screw
93 4x30/GB91 Cotter pin
94 YL16-4-5-16 Brake clamp
95 YL16-4-5-3 Pulling rod
96 A12x48/GB882-76 Pin
97 3Y15-7-6-11 Fork connector
98 A12x38/GB882-76 Pin
99 M12x30/GB5783 Hex. bolt
100 16/GB93 Spring washer
101 M16x1.5/GB6176 Hex. nut
102 20/GB93 Spring washer
103 M20x1.5/GB6176 Hex. nut
104 YL16-4-5-5 Toothed sector
105 M12/GB6178 Hex. castle nut
106 3x25/GB91 Cotter pin
107 YLl6-4-5-4 Pawl
108 YL16-4-5-3 Pulling rod
109 YL16-4-5-2 Pulling rod
110 YL16-4-5-1 Brake handle
111 M6x16/GB67 Button head screw
112 M12x40/GBS1-76 Hex. bolt
113 YL16-4-5-2 Pulling rod
114 YL16-4-5-1 Brake handle
115 6/GB97-2 Flat washer
116 2.5x15/GB91 Cotter pin
117 6x32/GB869 Button head rivet
118 YL16-4-4 Gasket
119 3Y15-4-27 Pin
120 3Y15-4-28 Pin
121 HG4-692-76 Skeleton oil seal d.70xd.100x12
122 3Y15-4-30 Gasket
123 3Y15A-4-29 Shaft retaining cover
124 14/GB93 Spring washer
125 M14x45/GB5783 Hex. bolt
126 27/JB982 Seal ring
127 YL16-4-9-1 Union
128 14/GB5628-2 Connector
129 YL16-4-9-3 Plug
130 A14/GB5647 Nut
131 YL16-4-9-4 U-clip
132 M8/GB6170 Hex. nut
