Каталог запасных частей к технике: XCMG YL16 (YL20). YL16 Electrical Eguipment and Lamps

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15

16

17

18

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

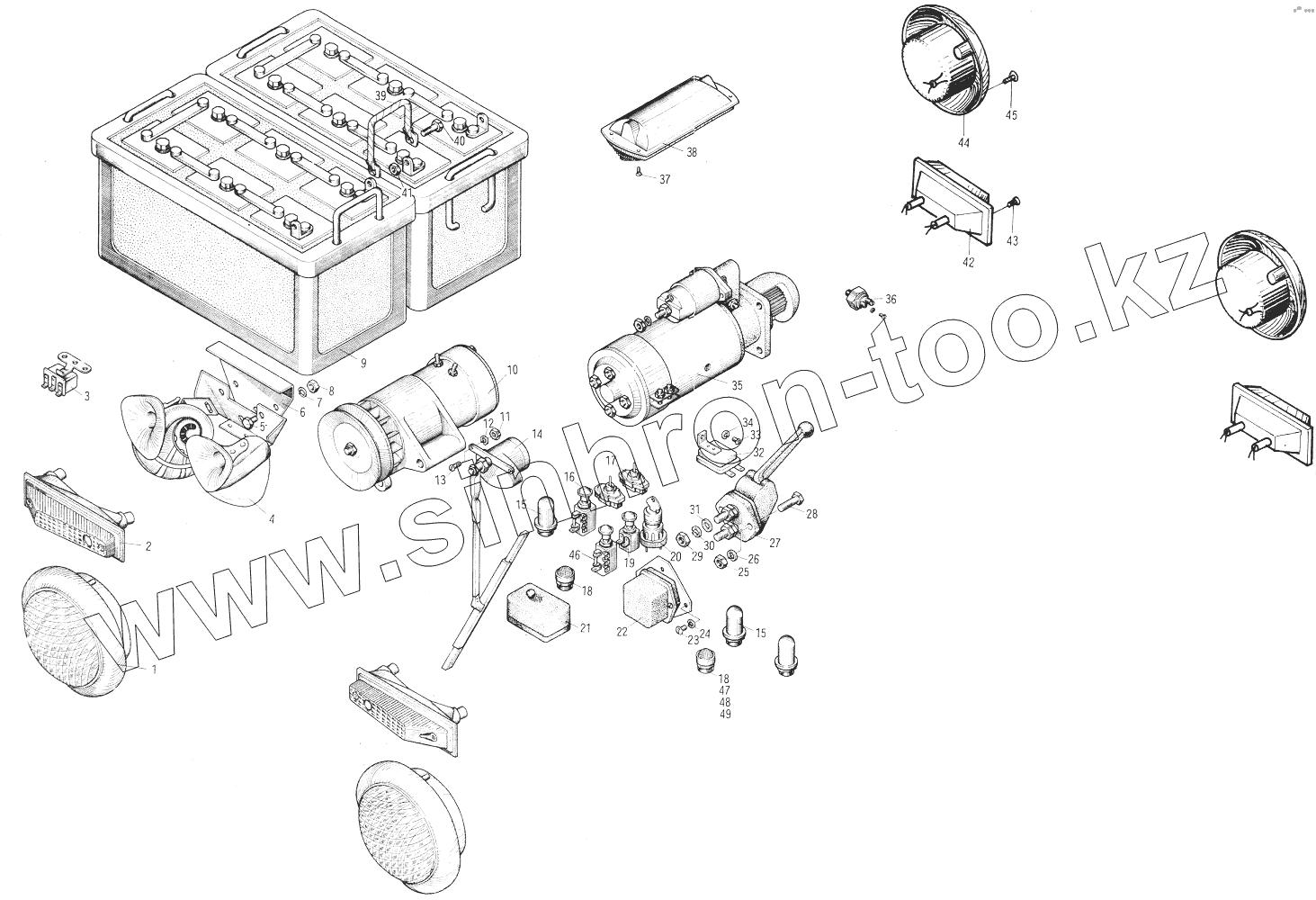

Позиция на иллюстрации	Заводской номер детали		Название детали
1	58-1		Front head lamp 24V
2	Z216Q		Front two-color lamp 24V
3	Horn relay		Horn relay
4	DL79DG		Two-sound horn 24V
5	M8x16/GB5783		Hex. bolt
6	3Y15A-9-11		Horn holder
7	8/GB93		Spring washer
8	M8/GB6170		Hex. nut
9	6-Q-150		Storage battery
10	3JF500A		Generator
11	M6/GB6170		Hex. nut
12	6/GB93		Spring washer
13	M6x25/GB67		Button head screw
14	ZD2132		Electric wiper 24V
15	Instrument lamp		Instrument lamp
16	JK107		Two-position switch
17	JK412-1		Instrument lamp switch
18	3Y15-7-8-1		Instrument lamp union
19	JK106		Single-position switch
20	JK411E		Ignition switch
21	Bx503		Fuse box
22	FT221		Relay regulator
23	M5x10/GB67		Button head screw
24	5/GB93		Spring washer
25	M8/GB6170		Hex. nut
26	8/GB93		Spring washer
27	JK561		Power switch
28	M8x20/GB5783		Hex. bolt
29	M10/GB6170		Hex. nut
30	10/GB93		Spring washer
31	10/GB97		Flat washer
32	SG224A		Flash relay
33	M5x16/GB67		Button head screw
34	5/GB93		Spring washer
35	Starter 24V		Starter 24V
36	JK613		Hydraulic brake lamp switch
37	M4x16/GB68		Counter sunk screw
38	N-216x80		Long top lamp 24V
39	Battery wire		Battery wire 50(mm)2
40	M8x20/GB5783		Hex. bolt
41	M8/GB6170		Hex. nut
42	Z216H		Rear small lamp 24V
43	M4x10/GB67		Button head screw
44	58-1		Front head lamp 24V
45	5x10/GB67		Button bead screw
46	JK108		Three-position switch
47	DS22-1		Signal lamp housing
48	N22-1		Signal lamp seat
49	QT24-1.5		Singal lamp 24V
