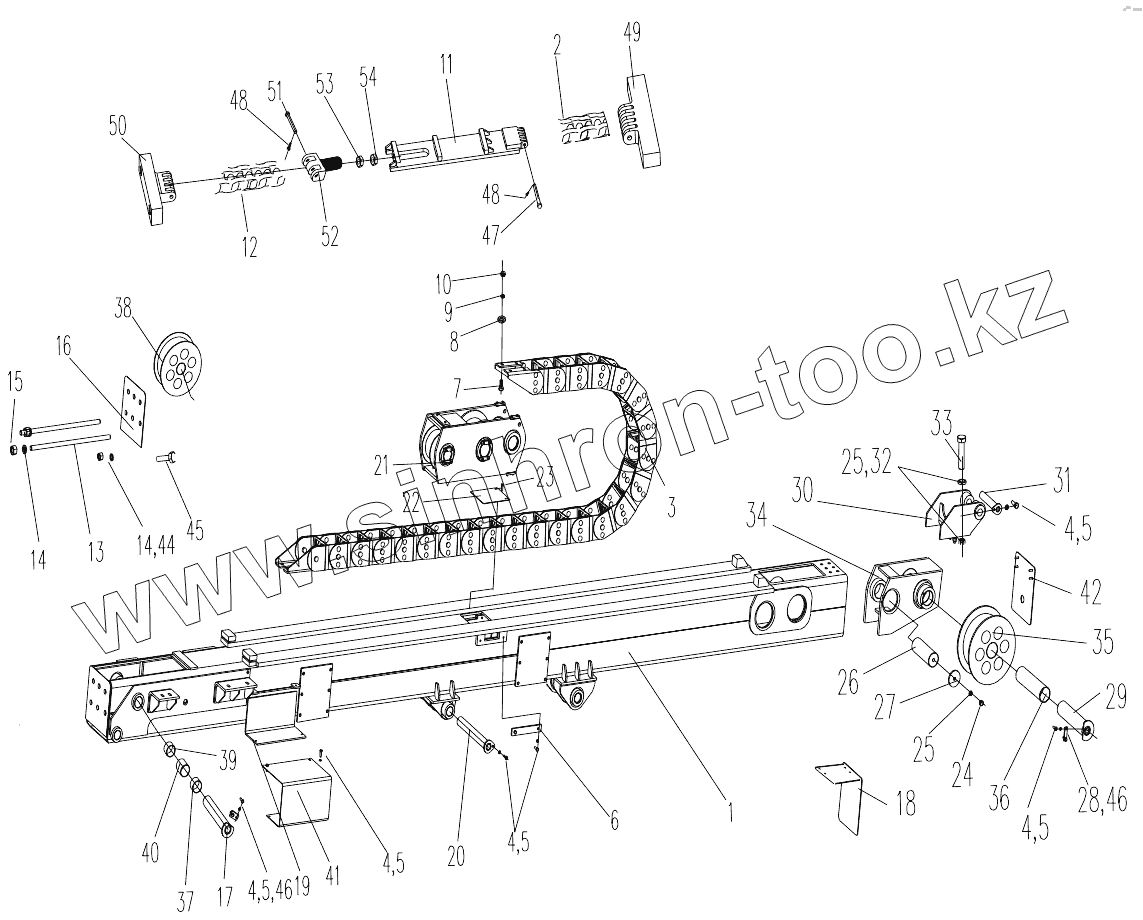

Каталог запасных частей к технике: XCMG XZ320. 0042402000 Drill Frame
1
2
3
4
4
4
4
4
5
5
5
5
5
6
7
8
9
10
11
12
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
44
45
46
46
47
48
48
49
50
51
52
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 101030139 | O-Ring | |
| 2 | 0041613012 | Core Axis | |
| 3 | 104000409 | Bolt | |
| 4 | 104040009 | Washer 6 | |
| 5 | 0041613030 | Cover | |
| 6 | 105000181 | Axletree | |
| 7 | 108040228 | Fours Sets Of V-Shaned Combination Seal | |
| 8 | 0041613016 | Adjust Tab | |
| 9 | 108000019 | Grease Cup | |
| 10 | 0041613008 | Cover | |
| 11 | 104040005 | Washer 12 | |
| 12 | 104000121 | Bolt | |
| 28 | 0041602087 | Baffle | |
| 29 | 0041602088 | Pin | |
| 30 | 0041602091 | Bracket | |
| 31 | 0041602096 | Pin | |
| 32 | 104030087 | Nut 16 | |
| 33 | 104000245 | Bolt | |
| 34 | 0042402009 | Mount | |
| 35 | 0041602107 | Roller | |
| 36 | 105000135 | Spring Bushing | |
| 37 | 0041602108 | Bushing | |
| 38 | 0041602109 | Front Roller | |
| 39 | 105000137 | Spring Bushing | |
| 40 | 105000136 | Spring Bushing | |
| 41 | 0041602110 | Cover | |
| 42 | 0042402012 | Mounting Plate | |
| 43 | 105000138 | Spring Bushing | |
| 44 | 104040022 | Washer 24 | |
| 45 | 104000427 | Bolt | |
| 46 | 0041602112 | Baffle | |
| 47 | 0041602038 | Tapered Pin | |
| 48 | 104070193 | Pin | |
| 49 | 0041602039 | Coupler | |
| 50 | 0041602048 | Stick | |
| 51 | 004140237 | Pin | |
| 52 | 0041602049 | Coupler | |
| 53 | 104030231 | Nut | |
| 54 | 104030230 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
