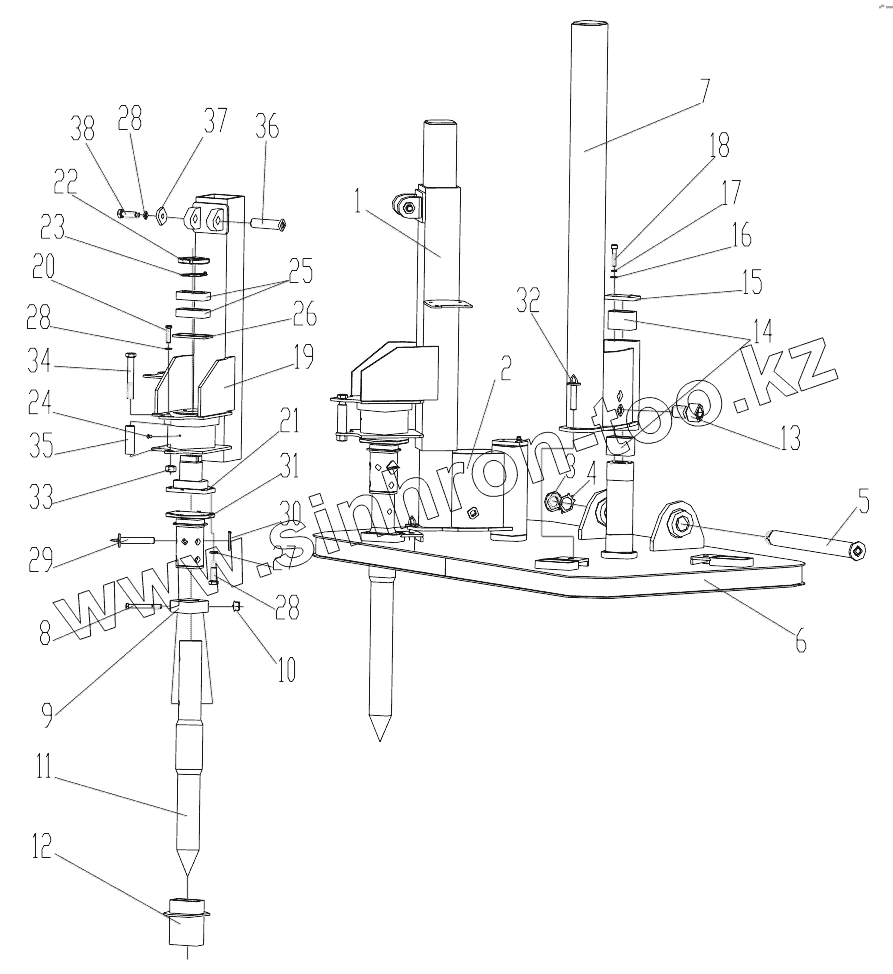

Каталог запасных частей к технике: XCMG XZ200. 425101780 Anchor Option
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 425500211 | Right Elevator Frame | |
| 2 | 425500213 | Right Circumvolve Frame | |
| 3 | 805238669 | Bolt | |
| 4 | 805300095 | Washer | |
| 5 | 425101110 | Shaft | |
| 6 | 425101782 | Tray | |
| 7 | 425500242 | Left Circumvolve Frame | |
| 8 | 805000403 | Bolt | |
| 9 | 425501338 | Circle Plate | |
| 10 | 805200297 | Nut | |
| 11 | 425501339 | Anchor | |
| 12 | 425501337 | Dust proof Cover | |
| 13 | 805103886 | Bolt | |
| 14 | 800516151 | Bearing | |
| 15 | 425500214 | Baffle | |
| 16 | 805302533 | Washer | |
| 17 | 805300010 | Шайба 8 | |
| 18 | 805100118 | Bolt | |
| 19 | 425501514 | LeftElevator Frame | |
| 20 | 805000023 | Bolt | |
| 21 | 425500252 | Flange Tray | |
| 22 | 805200144 | Nut | |
| 23 | 805300080 | Washer | |
| 24 | 801100337 | Oil Cup | |
| 25 | 800513740 | Bearing | |
| 26 | 803377728 | Felt Oil Seal | |
| 27 | 805300018 | Шайба 12 | |
| 28 | 805000716 | Болт М12х30 | |
| 29 | 425102299 | Shaft | |
| 30 | 805639446 | Safe Pin | |
| 31 | 425500255 | Drive Cover | |
| 32 | 425500215 | Pin | |
| 33 | 805200230 | Nut | |
| 34 | 805000605 | Bolt | |
| 35 | 425500243 | Handle | |
| 36 | 425101787 | Shaft | |
| 37 | 425100350 | Board | |
| 38 | 805000048 | Болт M12x35 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
