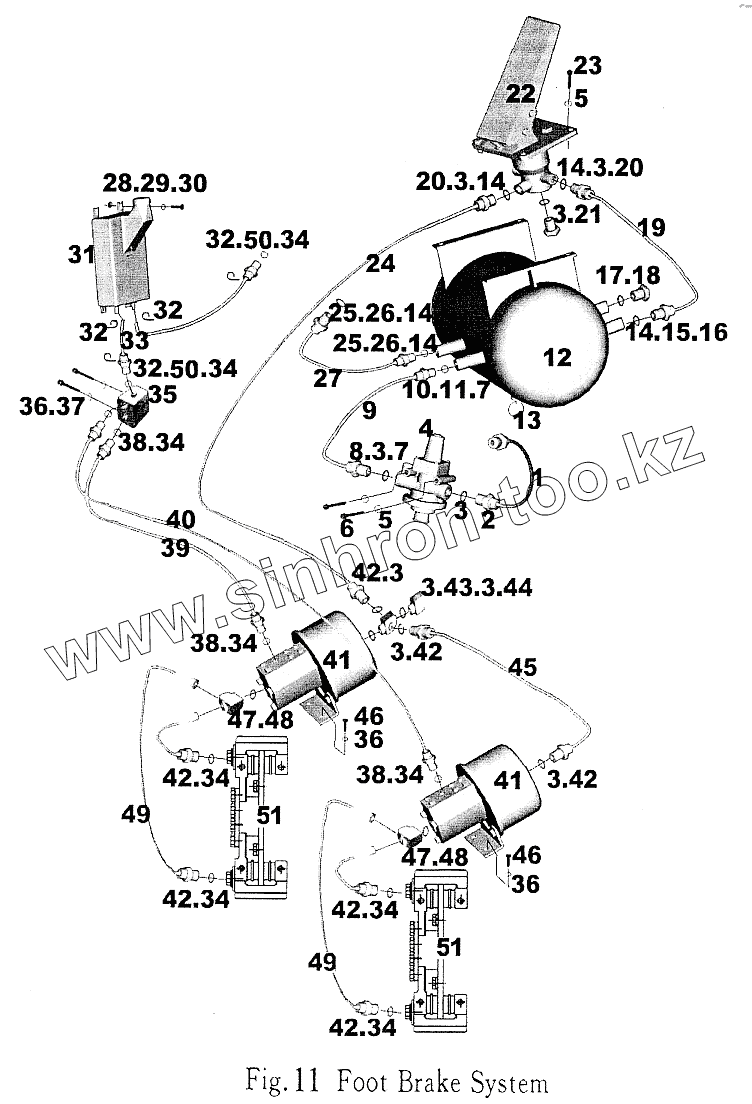

Каталог запасных частей к технике: XCMG XSM218 (XSM220). Тормозная система
1
2
3
3
3
3
3
3
3
3
3
3
4
5
5
6
7
7
8
9
10
11
12
13
14
14
14
14
14
15
16
17
18
19
20
20
21
22
23
24
25
25
26
26
27
28
29
30
31
32
32
32
32
33
34
34
34
34
34
34
34
34
34
35
36
36
36
37
38
38
38
39
40
41
41
42
42
42
42
42
42
42
43
44
45
46
46
47
47
48
48
49
49
50
50
51
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 34H710 | Hose | |
| 2 | 34H709 | Connector | |
| 3 | A5-4200 | Washer | |
| 4 | Al-4037 | Pressure Governor | |
| 5 | C4-3200 | Washer | |
| 6 | C0-2840 | Bolt | |
| 7 | A5-1844 | O-ring | |
| 8 | 34H296 | Connector | |
| 9 | B3-0098 | Pipe | |
| 10 | A3-1830 | Connector | |
| 11 | A5-4180 | Washer | |
| 12 | Al-4053 | Air Reservoir | |
| 13 | Al-4043 | Water Drainage Valve | |
| 14 | A5-1843 | O-ring | |
| 15 | Ao-4170 | Washer | |
| 16 | 34H302 | Connector | |
| 17 | A5-4150 | Washer | |
| 18 | A1-4011 | Safe Valve | |
| 19 | B3-0110 | Pipe | |
| 20 | 34H300 | Connector | |
| 21 | A5-3190 | Plug | |
| 22 | 34H620 | Brake Valve | |
| 23 | C0-0200 | Bolt | |
| 24 | B3-0099 | Pipe | |
| 25 | A3-1825 | Connector | |
| 26 | A5-4150 | Washer | |
| 27 | B3-0202 | Pipe | |
| 28 | C4-3150 | Washer 5 | |
| 29 | C3-0275 | Nut | |
| 30 | C0-1500 | Bolt | |
| 31 | 39E421 | Oil Cup | |
| 32 | B2-0495 | Clamp | |
| 33 | B2-1360 | Plastic Pipe | |
| 34 | A5-4140 | Washer | |
| 35 | 39E192 | Valve | |
| 36 | C0-0528 | Bolt | |
| 37 | C4-3220 | Washer | |
| 38 | 39E120 | Connector | |
| 39 | 39E190 | Pipe | |
| 40 | 39E191 | Pipe | |
| 41 | A6-3094 | Booster Cylinder | |
| 42 | 39E120 | Connector | |
| 43 | 39E117 | Connector | |
| 44 | A7-0003 | Stop switch | |
| 45 | B3-0204 | Pipe | |
| 46 | C0-3161 | Bolt | |
| 47 | 39E119 | Connector | |
| 48 | 39E116 | Washer | |
| 49 | 39E118 | Pipe | |
| 50 | 39E115 | Connector | |
| 51 | Diesel Engine Accessories |
