Каталог запасных частей к технике: XCMG XSM218, XSM220. Control Console and Instruments

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

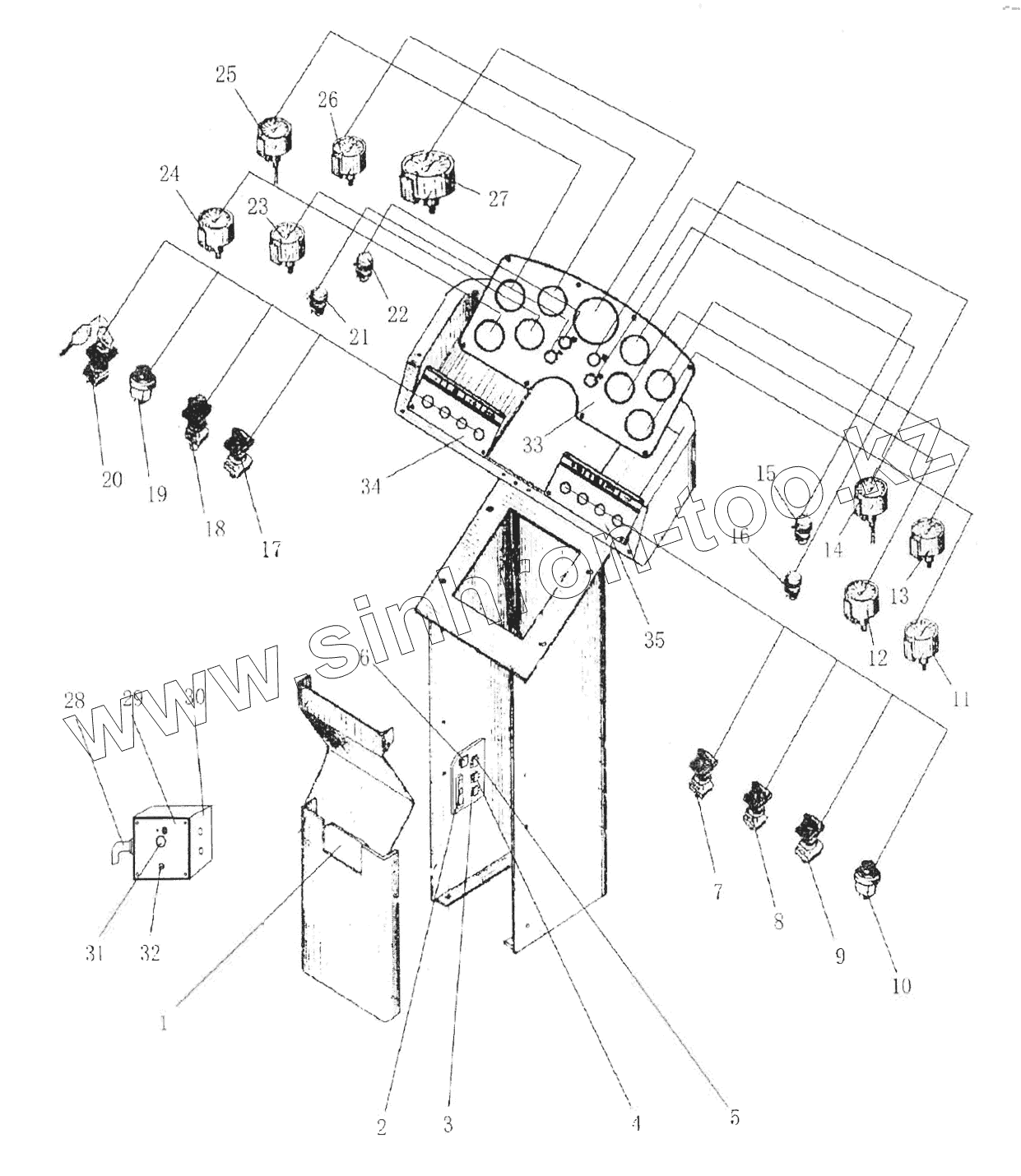

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Fuse bох		Fuse bох
2	Relay		Relay
3	D0-4380		Relay
4	D0-4380		Relay
5	D0-4380		Relay
6	А7-6130		Blink relay
7	Switch front lamp		Switch front lamp
8	Switch rear lamp		Switch rear lamp
9	Steering switch		Steering switch
10	Horn button		Horn button
11	Oil pressure gauge		Oil pressure gauge
12	Oil temperature gauge		Oil temperature gauge
13	Oil pressure gauge		Oil pressure gauge
14	А 7-5205		Gas pressure gauge
15	Oil fiter indicator		Oil fiter indicator
16	Right fiter indicator		Right fiter indicator
17	Swing select switch		Swing select switch
18	Swing switch		Swing switch
19	Start button		Start button
20	Selector		Selector
21	Left fter indicator		Left fter indicator
22	Reverse gear indicator		Reverse gear indicator
23	Oil temperature gauge		Oil temperature gauge
24	Fuel gauge		Fuel gauge
25	Anequency meter		Anequency meter
26	Water temperature gauge		Water temperature gauge
27	А7-5158		Rotate speed gauge
28	39Е420		Саые
29	39Е419		Panel plate
30	39Е414		Control ьох
31	Petrol pump switch		Petrol pump switch
32	Fuse		Fuse
33	39Е411		Front panel plate
34	39Е413		Left panel plate
35	39Е412		Right panel plate

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
