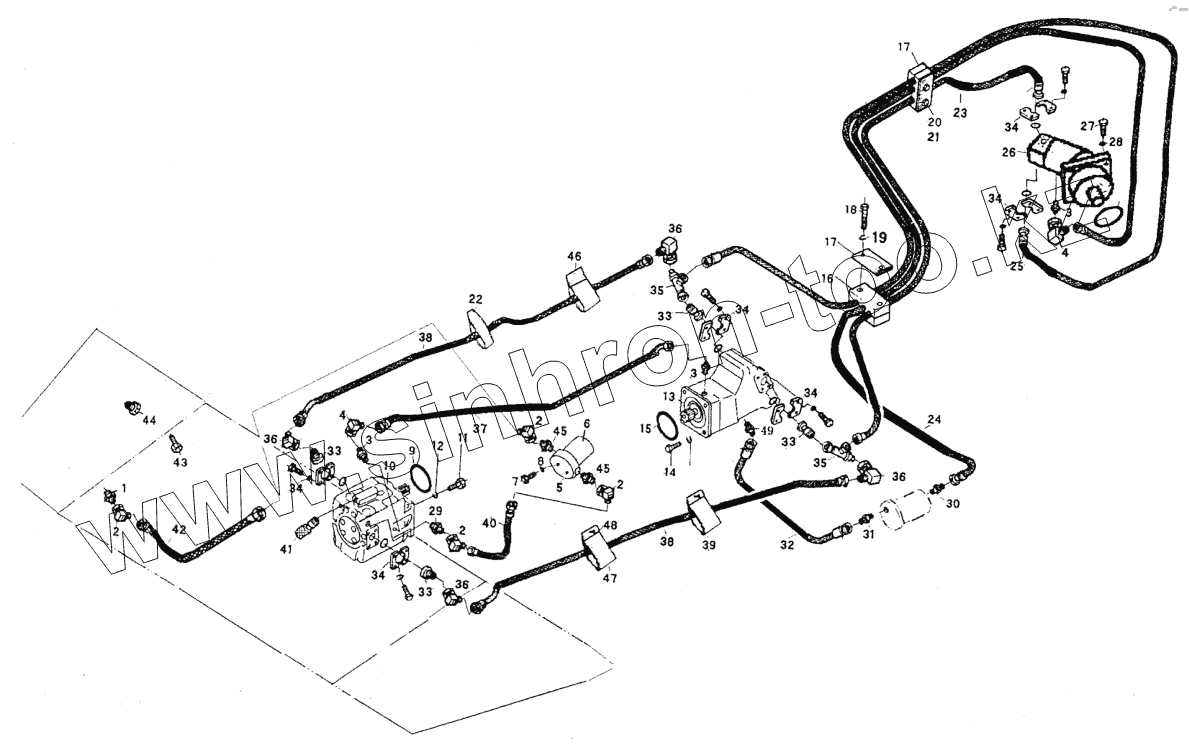

Каталог запасных частей к технике: XCMG XS160 (XS190). 2EW005 Hy-propulsion system
1
2
2
2
2
3
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
33
34
34
34
34
34
34
35
35
36
36
36
36
37
38
38
39
40
41
42
43
44
45
45
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | А3-2723 | Adapter | |
| 2 | А3-2381 | Adapter | |
| 3 | А3-2599 | Adapter | |
| 4 | А3-2593 | Adapter | |
| 5 | D0-5461 | Oil absorber | |
| 6 | D0-5736 | Oil filter | |
| 7 | 407065 | Bolt | |
| 8 | С4-3200 | Washer | |
| 9 | А5-1640 | Hydraulic | |
| 10 | А1-1019 | Propulsion pump | |
| 11 | С0-0760 | Bolt | |
| 12 | В8-1040 | Dish washer | |
| 13 | A1-0039 | Propulsion motor | |
| 14 | С0-4346 | Bolt | |
| 15 | А5-1692 | 0-ring | |
| 16 | 30020032 | Rubber block | |
| 17 | 2В2130 | Fixed plate | |
| 18 | С0-3640 | Bolt | |
| 19 | G4-3220 | Washer | |
| 20 | С0-3700 | Pressure plate | |
| 21 | С3-0446 | Nut | |
| 22 | В2-1794 | Tie | |
| 23 | А3-4645 | Hose | |
| 24 | А3-3026 | Hose | |
| 25 | А3-4646 | Hose | |
| 26 | А1-1018 | Propulsion motor | |
| 27 | С0-7032 | Bolt | |
| 28 | D0-2160 | Washer | |
| 29 | А3-2464 | Adapter | |
| 30 | А3-2656 | Adapter | |
| 31 | А3-2393 | Adapter | |
| 32 | А3-4639 | Hose | |
| 33 | А3-2720 | Adapter | |
| 34 | D0-8176 | Flange half | |
| 35 | А3-2629 | Adapter | |
| 36 | А3-2594 | Adapter | |
| 37 | А3-4636 | Hose | |
| 38 | А3-4644 | Hose | |
| 39 | В2-1522 | Fireproof plate | |
| 40 | А3-4641 | Hose | |
| 41 | Т1-0344 | Measure nipple | |
| 42 | А4-9184 | Hose | |
| 43 | А7-5175 | Sensor | |
| 44 | 204330 | Plug | |
| 45 | А3-3025 | Adapter | |
| 46 | В2-1521 | Rubber | |
| 47 | 30021650 | Hose holder | |
| 48 | C0-0300 | Bolt | |
| 49 | A3-2623 | Adapter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
