Каталог запасных частей к технике: XCMG XS143. 228401853 FRAME ASSEMBLE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

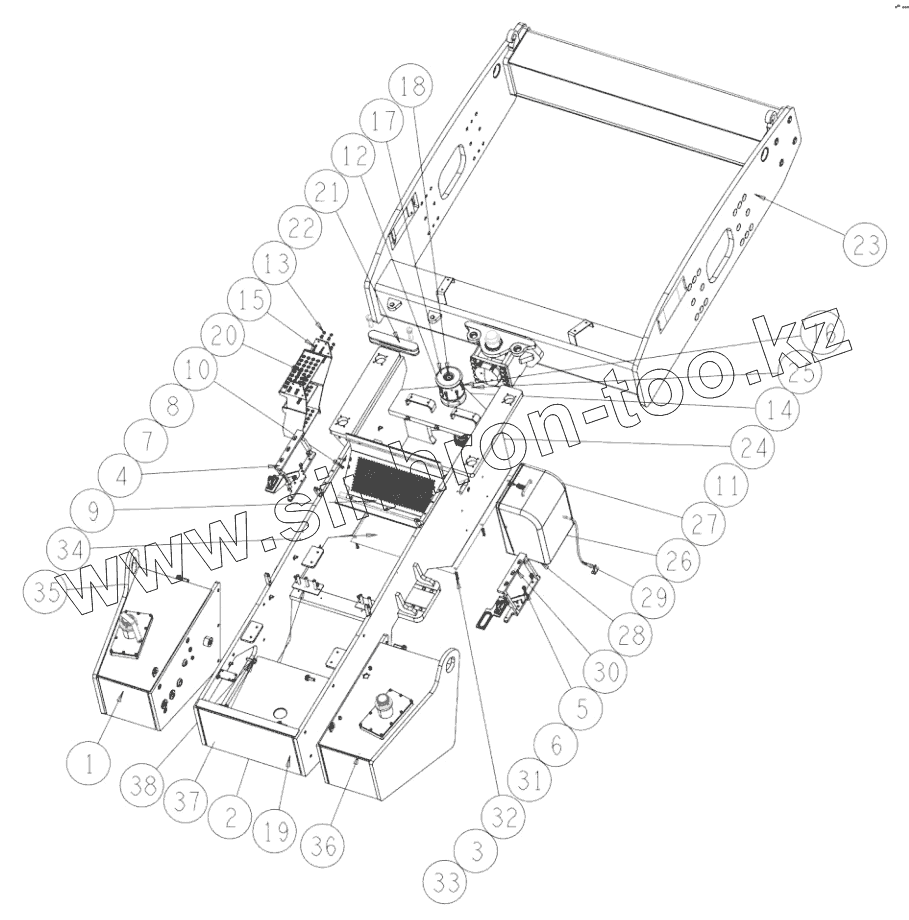

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 228702645 | OIL TANK | |
| 2 | 228401768 | FENCE | |
| 3 | 805338260 | Spring Washer | |
| 4 | 228401844 | TRANSMISSION LEFT SUPPORT | |
| 5 | 805006287 | Bolt | |
| 6 | 805338261 | Spring Washer | |
| 7 | 805338259 | Washer | |
| 8 | 805046484 | BOLT M8x25 | |
| 9 | 228703138 | PLATE | |
| 10 | 805338276 | WASHER 8 | |
| 11 | 800511347 | OSCILLATING BEARING GAC85S/K | |
| 12 | 228700370 | COVER | |
| 13 | 805200080 | Locknut | |
| 14 | 228700371 | WASHER | |
| 15 | 805046455 | Bolt | |
| 16 | 805006413 | BOLTM12x35 | |
| 17 | 228700367 | COVER | |
| 18 | 805046502 | BOLTM8x12 | |
| 19 | 228401850 | REAR FRAME | |
| 20 | 226803050 | THE LADDER | |
| 21 | 228700275 | PLANK | |
| 22 | 228700273 | PIN | |
| 23 | 228401653 | DRUM FRAME ASSEMBLE | |
| 24 | 228700375 | V-RING | |
| 25 | 801100336 | Масленка M10x1 | |
| 26 | 228303106 | BATTERY BOX | |
| 27 | 805011330 | Bolt | |
| 28 | 805046477 | NUTM8 | |
| 29 | 230502674 | SUPPLY TUBE ASSY | |
| 30 | 228401849 | RIGHT BRACKET | |
| 31 | 805338280 | WASHER 12 | |
| 32 | 805046524 | BOLT M10xl6 | |
| 33 | 805338278 | Washer | |
| 34 | 228401847 | BASEPLATE | |
| 35 | 805047579 | Bolt | |
| 36 | 228702646 | FUELTANK | |
| 37 | 805047076 | BOLT M20x60 | |
| 38 | 805301379 | WASHER 20 |
