Каталог запасных частей к технике: XCMG XS143. 228401839 PAINT MARKER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

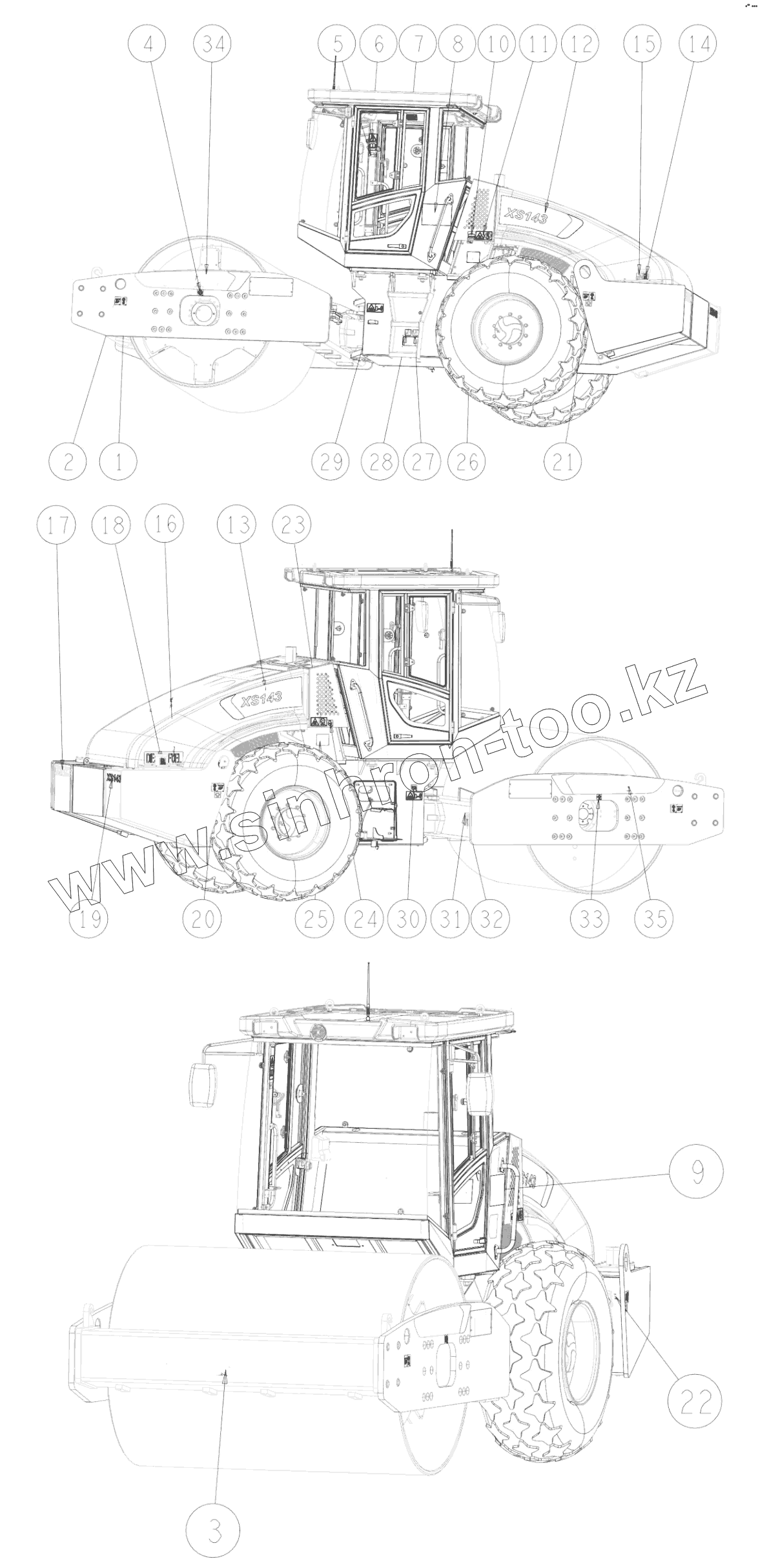

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 801902626 | DECAL-SUSPENDING | |
| 2 | 239900219 | FIXED DECAL | |
| 3 | 228303059 | XCMG LOGO | |
| 4 | 819906090 | SIGN | |
| 5 | 228700144 | EXIT DECAL | |
| 6 | 801902622 | READER | |
| 7 | 228302809 | ROPS MODEL | |
| 8 | 228303062 | MAINTENANCE MANUAL DECAL | |
| 9 | 819906088 | CONTROL INSTRUCTION | |
| 10 | 239900211 | SIGN | |
| 11 | 822138037 | SIGN | |
| 12 | 228401666 | LEFT REAR SIGN | |
| 13 | 228401665 | RIGHT REAR SIGN | |
| 14 | 819906726 | DECAL-HYDRAULIC TANK | |
| 15 | 228702285 | HYDRAULIC OIL NOTICE DECAL | |
| 16 | 228303063 | DIESEL FUEL LOGO | |
| 17 | 228401669 | LEFT BEHIND SMART MARKER | |
| 18 | 819905873 | DECAL OF FUEL FILLING | |
| 19 | 228401670 | SMALL SIGN | |
| 20 | 239900223 | LUBE DECALS | |
| 21 | 228700146 | TYRE PRESSURE | |
| 22 | 228700142 | HYDRAULIC OIL NOTICE DECAL | |
| 23 | 239900238 | WARNING | |
| 24 | 239900133 | SIGN | |
| 25 | 228703157 | MAINTENANCE OF RADIATORL | |
| 26 | 819906042 | OUTLET FOR THE LOW TEMPERATURE WATER | |
| 27 | 228300868 | OUTET FOR OIL | |
| 28 | 228300883 | OUTET FOR WATER | |
| 29 | 822138031 | SQUEEZE INSIGNIA | |
| 30 | 819947513 | SIGN | |
| 31 | 805500033 | RIVET 3x8 | |
| 32 | 228401676 | NAMEPLATE | |
| 33 | 239900220 | DECAL OF DRUM OIL LEVEL | |
| 34 | 228401668 | LEFT FRONT LOGO HYDRAULIC OIL LEVEL | |
| 35 | 228401667 | RIGHT DECAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
