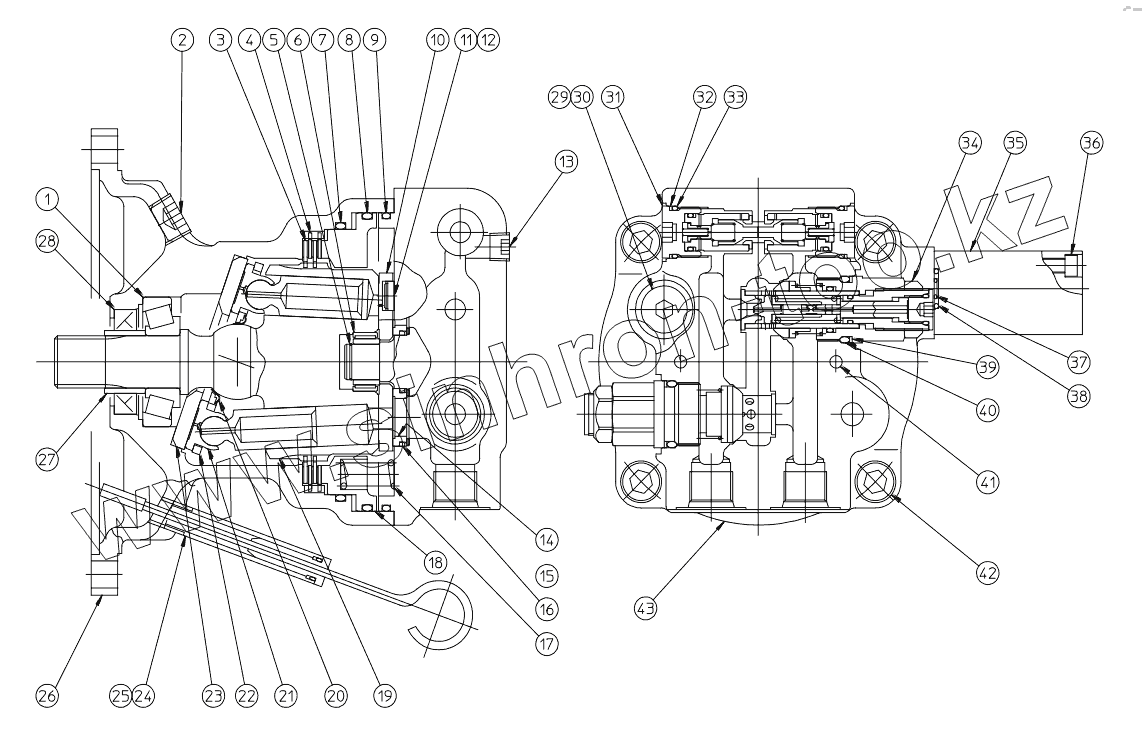

Каталог запасных частей к технике: XCMG XE80. 803007133 Swing Motor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 860200177 | Tapered roller | |
| 2 | 860200178 | Plug | |
| 3 | 860200179 | Lining Plate | |
| 4 | 860200180 | Plate | |
| 5 | 860200181 | Snap Ring | |
| 6 | 803009543 | Needle Bearring | |
| 7 | 803193043 | O-Ring | |
| 8 | 803193044 | O-Ring | |
| 9 | 803193045 | O-Ring | |
| 10 | 803009541 | Balanxce Plate | |
| 11 | 860200182 | Piston | |
| 12 | 860200183 | Teflon Ring | |
| 13 | 860200184 | Plug | |
| 14 | 860200185 | Bush | |
| 15 | 860200186 | Scrowave | |
| 16 | 860200187 | Teflon Ring | |
| 17 | 860200188 | Spring | |
| 18 | 860200189 | Piston | |
| 19 | 803009540 | Cylinder | |
| 20 | 803009539 | Back Spring | |
| 21 | 803009538 | Piston | |
| 22 | 803009537 | Return Plate | |
| 23 | 803009536 | Cam Plate | |
| 24 | 803009625 | Level Gauge Ass’y | |
| 25 | 803009626 | O-Ring | |
| 26 | 860200190 | Housing | |
| 27 | 860200191 | Inner Ring | |
| 28 | 803009535 | Oil Sealy | |
| 29 | 860200192 | O-Ring | |
| 30 | 860200193 | Plug | |
| 31 | 860200194 | Bypass Valve Assy | |
| 32 | 860200195 | Back Up Ring | |
| 33 | 860200196 | O-Ring | |
| 34 | 803009542 | Relief Valve Ass’y | |
| 35 | 860200197 | Time Delay Valve | |
| 36 | 860200198 | Hexagon Cscket Bolt | |
| 37 | 860200199 | O-Ring | |
| 38 | 860200200 | O-Ring | |
| 39 | 860200201 | Back Up Ring | |
| 40 | 860200202 | O-Ring | |
| 41 | 860200203 | Parallel Pine | |
| 42 | 860200204 | Hexagon Cscket Bolt | |
| 43 | 860200205 | Cover |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
