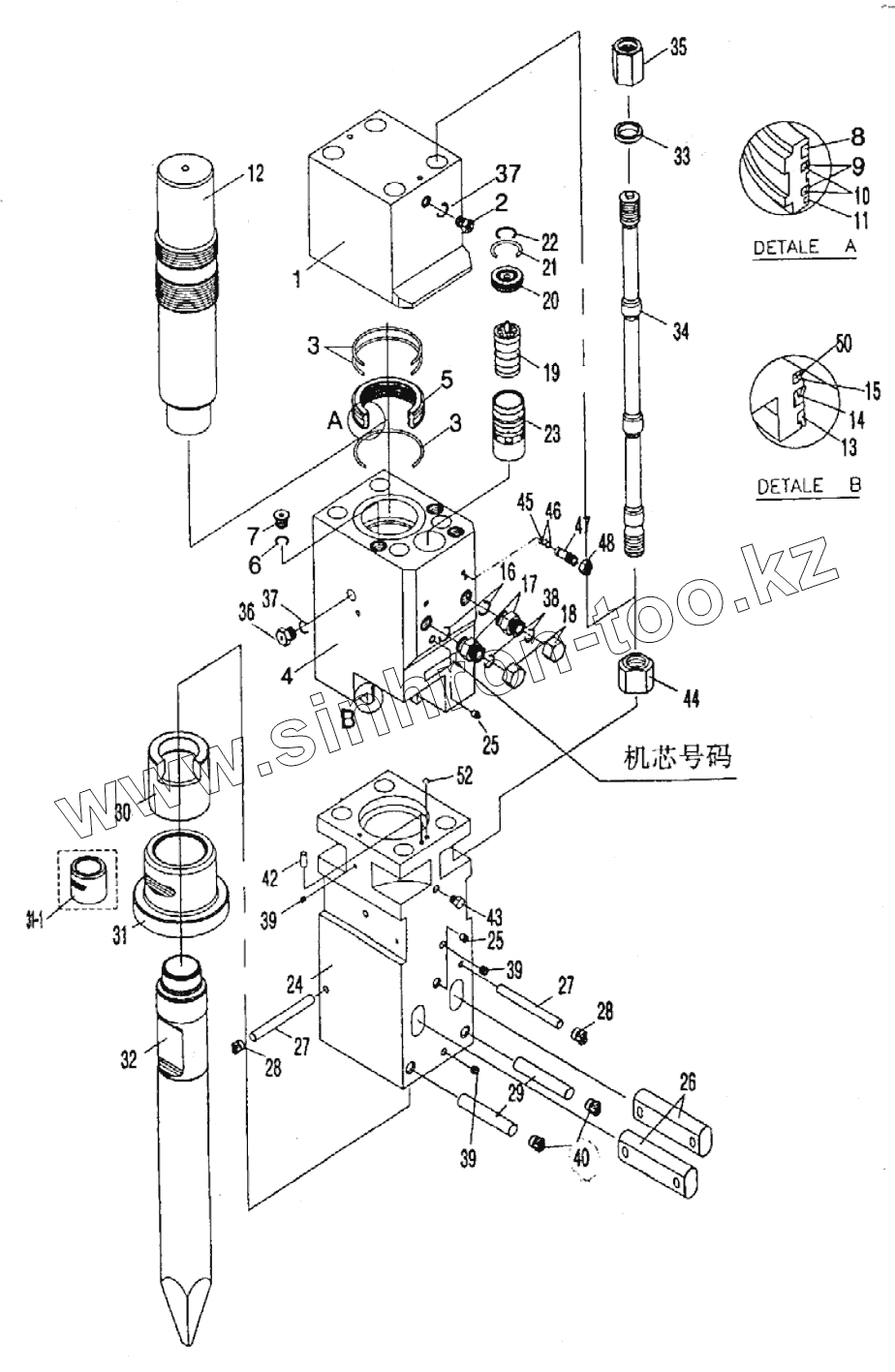

Каталог запасных частей к технике: XCMG XE230. Breaker
860120147
860120146
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
27
28
28
29
30
31
31
32
33
34
35
36
37
37
38
39
39
39
40
42
43
44
45
46
47
48
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 860120147 | 860120147 | Sealing steel ring | |
| 860120146 | 860120146 | Complete set of sealing rings | |
| 1 | 860120117 | Back head | |
| 2 | 860120118 | Charging v/v assy | |
| 3 | 860121063 | O-Ring | |
| 4 | 860120119 | Cylinder | |
| 5 | 860121064 | Seal retainer | |
| 6 | 860121065 | O-Ring | |
| 7 | 860120120 | Socket Plug | |
| 8 | 860121066 | Gas seal | |
| 9 | 860121067 | Step Seal | |
| 10 | 860121068 | O-Ring | |
| 11 | 860121069 | Buffer Seal | |
| 12 | 860120121 | Pistion | |
| 13 | 860121070 | Dust Seal | |
| 14 | 860121071 | U-Packing | |
| 15 | 860121072 | Buffer-Seal | |
| 16 | 860121073 | O-Ring | |
| 17 | 860120122 | Adapter | |
| 18 | 860120123 | Union Cap | |
| 19 | 860120124 | Valve | |
| 20 | 860120125 | Valve Plug | |
| 21 | 860121074 | O-Ring | |
| 22 | 860121075 | O-Ring | |
| 23 | 860120126 | Valve Sleeve | |
| 24 | 860120127 | Front Head | |
| 25 | 860120128 | Grease Nipple | |
| 26 | 860120129 | Rod Pin | |
| 27 | 860120130 | Stop Pin | |
| 28 | 860120131 | Rubber Plug | |
| 29 | 860120132 | Front Head Pin | |
| 30 | 860120133 | Ring Bush | |
| 31 | 860120134 | Front Cover | |
| 32 | 860120135 | Rod | |
| 33 | 860120136 | T/B Washer | |
| 34 | 860120137 | Through Bolt | |
| 35 | 860120138 | T/B Hex Nut | |
| 36 | 860120139 | Air Check Valve | |
| 37 | 860121076 | O-Ring | |
| 38 | 860121077 | O-Ring | |
| 39 | 860120140 | Hollow Hex Plug | |
| 40 | 860120141 | Rubber Plug | |
| 42 | 860121078 | Knock Pin | |
| 43 | 860121079 | Hex Head Plug | |
| 44 | 860120142 | T/B Round Nut | |
| 45 | 860121080 | O-Ring | |
| 46 | 860120143 | Back Up Pin | |
| 47 | 860120144 | Valve Adjuster | |
| 48 | 860120145 | Nut | |
| 52 | 860121081 | O-Ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
