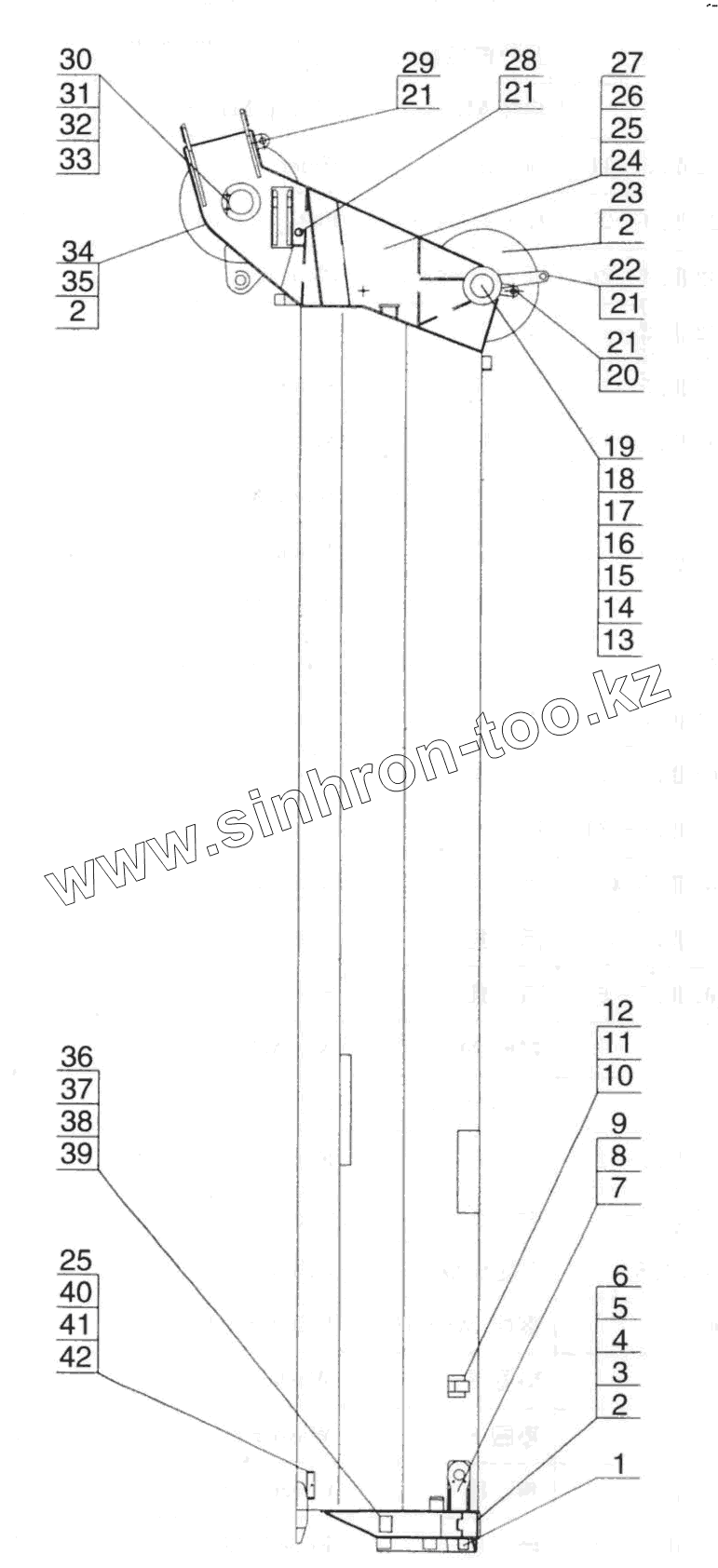

Каталог запасных частей к технике: XCMG QY70K (вариант). QY65K.02 II.5 Fifth Section
/9.gif)
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | QY65K.02II.5.1 | Fifth section structure | |
| 2 | 10810006 | Washer 10 | |
| 3 | QY65K.02II.5-11 | Slider | |
| 4 | QY25K.02II.4-25 | Plate t2x88x85 | |
| 5 | QY25K.02II.4-26 | Plate t1x88x85 | |
| 6 | QY25K.02II.2-8 | Pin | |
| 7 | QY65K.02II.5-13 | Slider | |
| 8 | QY65K.02II.5-14 | Mat | |
| 9 | 10420049 | Screw M10x20 | |
| 10 | QY65K.02II.5-12 | Track | |
| 11 | 10420079 | Screw M8x25 | |
| 12 | 10420432 | Screw M8x50 | |
| 13 | QY50K.02II.5-19 | Shaft | |
| 14 | QY50K.02II.5-20 | Cover Plate | |
| 15 | QY50K.02II.5-21 | Bolt | |
| 16 | QY50K.02II.5.4 | Bracket | |
| 17 | QY50K.02II.5-5 | Sleeve | |
| 18 | QY50K.02II.5-6 | Sleeve | |
| 19 | 10430007 | Nut M16 | |
| 20 | 10470139 | Pin B20x70 | |
| 21 | QY50K.02II.5-2 | Rope Hold | |
| 22 | QY50K.02II.5-3 | Clip | |
| 23 | QY35K.02.4.8 | Pulley | |
| 24 | 10410026 | Bolt M8x16 | |
| 25 | 10440062 | Washer 8 | |
| 26 | 10440001 | Washer 8 | |
| 27 | QY65K.02II.5-2 | Cover plate | |
| 28 | QY50K.02II.5-9 | Rope Hold | |
| 29 | QY65K.02II.5-3 | Rope hold | |
| 30 | 10410070 | Bolt M12x20 | |
| 31 | 10440010 | Washer 12 | |
| 32 | QY65K.02II.5-4 | Pin shaft | |
| 33 | QY25K.02II.4-13 | Retaining Plate | |
| 34 | QY65K.02II.5-5 | Sleeve | |
| 35 | QY65K.02II.5.6 | Pulley | |
| 36 | QY65K.02II.5-8A | Slider | |
| 37 | QY65K.02II.5-9 | Mat | |
| 38 | QY65K.02II.5-10 | Mat | |
| 39 | 10420027 | Screw M8x30 | |
| 40 | 10420034 | Screw M8x20 | |
| 41 | QY65K.02II.5-7 | Slider | |
| 42 | QY50K.02II.5-15 | Mat |
