Каталог запасных частей к технике: XCMG QY70K (вариант). QY60K.65.2 Pipes For Pressure Oil
/79.gif)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
43
43
44
45
46

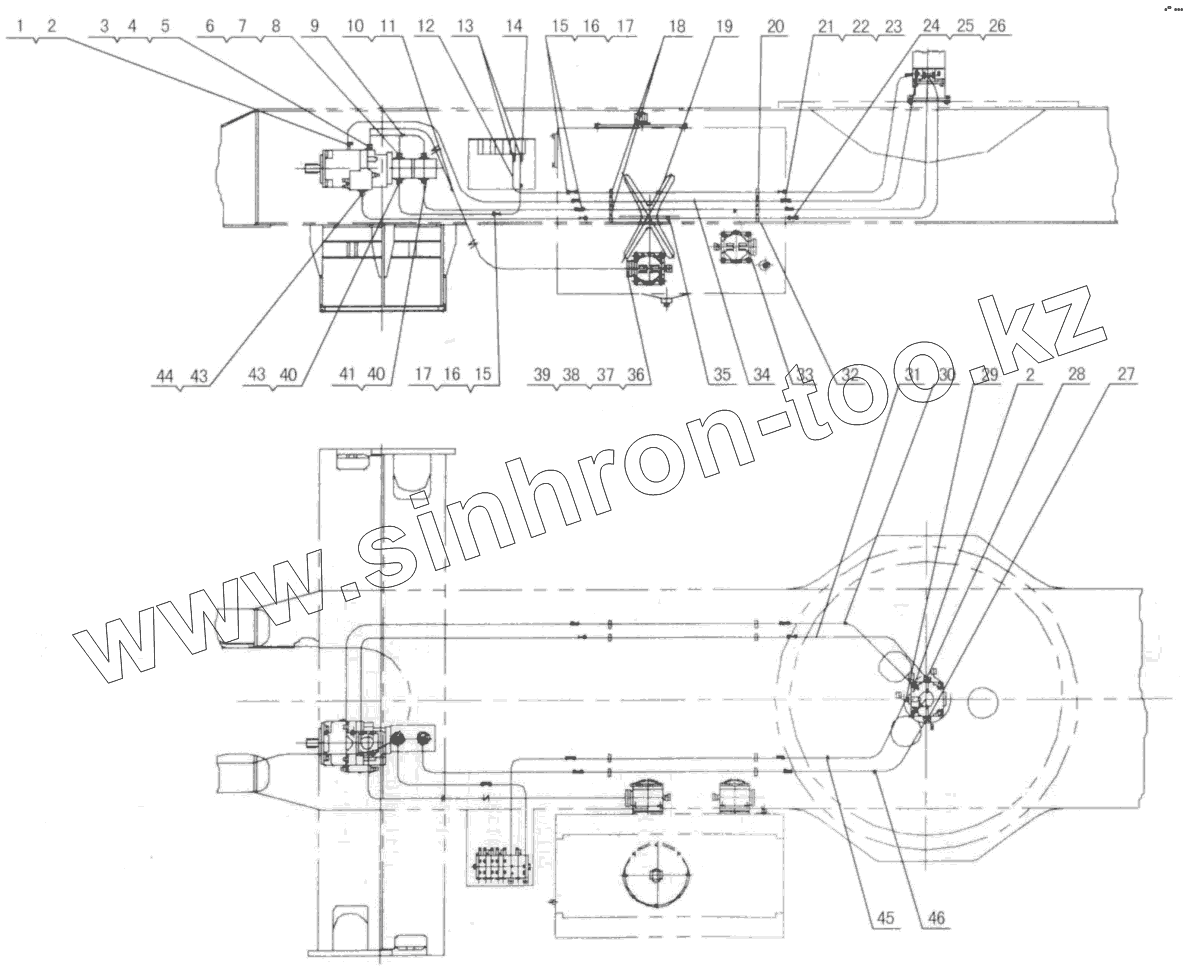

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 10125573 | Tube | |
| 2 | 20120023 | Tie-in | |
| 3 | 10420175 | Bolt M16x30 | |
| 4 | 10440002 | Washer 16 | |
| 5 | 20130029 | () seal ring | |
| 6 | 10420127 | Bolt M8x30 | |
| 7 | 10440001 | Washer 8 | |
| 8 | 10130451 | Seal ring 30x1, 8 G | |
| 9 | 08765878 | Flange | |
| 10 | 11210313 | Сlаmp | |
| 11 | Hose | Hose | |
| 12 | 00965803 | Seamless tube | |
| 13 | 20120021 | Tie-in | |
| 14 | 00965804 | Seamless tube | |
| 15 | 20120063 | Tie-in | |
| 16 | 20430005 | Nut | |
| 17 | 20120053 | Сutting fеrrulе | |
| 18 | 11210408 | Clip | |
| 19 | 00965805 | Seamless tube | |
| 20 | 11210793 | Pipe clip | |
| 21 | 20120511 | Pipe coupling | |
| 22 | 20430002 | Nut | |
| 23 | 20120555 | Cutting ring | |
| 24 | 20120550 | Fitting | |
| 25 | 20121585 | Nut | |
| 26 | 20120554 | Cutting ring | |
| 27 | 10123757 | Flange | |
| 28 | 10124482 | Flange | |
| 29 | 10124483 | Flange | |
| 30 | 10125599 | Tube | |
| 31 | 10122557 | Tube | |
| 32 | 11210923 | Pipe clip | |
| 33 | 00965807 | Seamless tube | |
| 34 | 00965806 | Seamless tube | |
| 35 | 00965808 | Seamless tube | |
| 36 | 08765876 | Flange | |
| 37 | 10410038 | Bolt M10x30 | |
| 38 | 10440006 | Washer 10 | |
| 39 | 10130102 | О rеаl ring 97.5х3.55G | |
| 40 | 20122330 | Flange | |
| 41 | 10125577 | Tube | |
| 42 | 10125578 | Tube | |
| 43 | 20122484 | Flange | |
| 44 | 10125579 | Tube | |
| 45 | 10125580 | Tube | |
| 46 | 10122515 | Tube | |
| 47 | 11210313 | Сlаmp | |
| 48 | 10125926 | Tube | |
| 49 | 10123758 | Flange | |
| 50 | 10123757 | Flange |
