Каталог запасных частей к технике: XCMG QY70K. 08611005 Turn table appliance
1
2
3
4
8
9
10
11
12
13
14
15
16
17
17
18
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
38
39
40
41
42
43
44
45

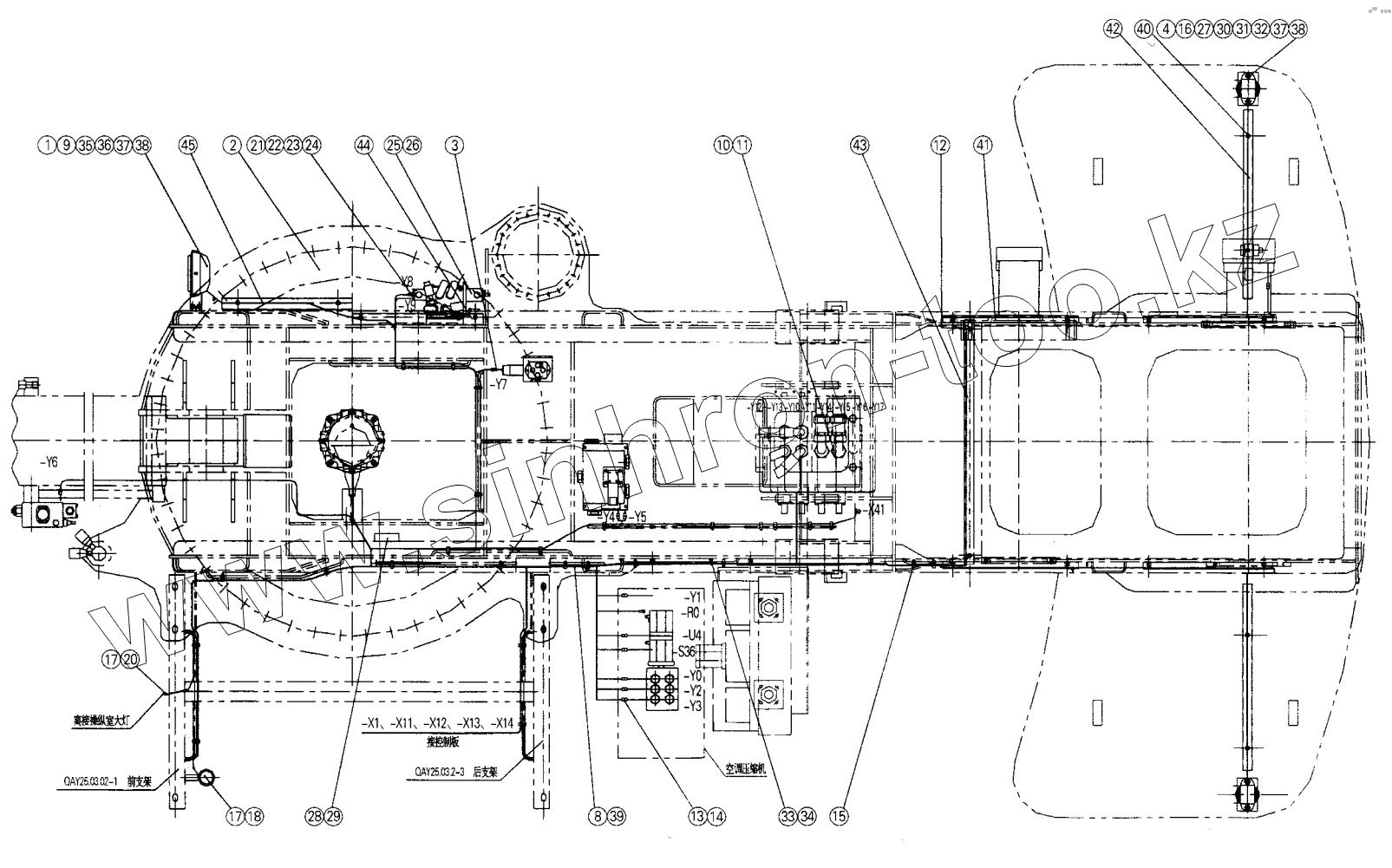

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 08611004 | Workinglamp support | |
| 2 | 12102716 | Turntable appliance welded construction | |
| 3 | 10220088 | Turn table wires | |
| 4 | 01200824 | Bracket | |
| 5 | 10220006 | Turn table wires | |
| 6 | 10220256 | Turn table wires | |
| 7 | 10220257 | Turn table wires | |
| 8 | 01811008 | Bracket | |
| 9 | 10200021 | Big lamp | |
| 10 | 20230101 | Tubular terminal | |
| 11 | 20250013 | Terminal | |
| 12 | 30249091 | Cable L=3m | |
| 13 | 10230010 | The jacket of plug | |
| 14 | 10230071 | Plug | |
| 15 | 11210023 | Clip strip | |
| 16 | 10200075 | Outline lamp | |
| 17 | 10200162 | Electric horm | |
| 18 | 30249122 | Sleeve L=20 | |
| 19 | 30249130 | Sleeve L=2m | |
| 20 | 30249014 | Wire L=12m | |
| 21 | 10230091 | Double plug | |
| 22 | 10230257 | Male end | |
| 23 | 10230261 | Sealed | |
| 24 | 10230260 | Insert flake | |
| 25 | 10230311 | Solenoid valve seat | |
| 26 | 20230051 | Cable tie- in | |
| 27 | 10200195 | Alarm lamp | |
| 28 | 20210054 | Sensor | |
| 29 | 10210009 | Sensor | |
| 30 | 10410339 | Bolt M5x30 | |
| 31 | 10440133 | Washer 5 | |
| 32 | 10420222 | Screw M6x10 | |
| 33 | 10430001 | Nut М8 | |
| 34 | 10440001 | Washer 8 | |
| 35 | 10410374 | Bolt M6x16 | |
| 36 | 10430009 | Nut М6 | |
| 37 | 10440021 | Washer 6 | |
| 38 | 10440022 | Washer 6 | |
| 39 | 10410001 | Bolt M6x12 | |
| 40 | 10410125 | Bolt M6x30 | |
| 41 | 08611032 | Cover board | |
| 42 | 08611033 | Cover board | |
| 43 | 02500614 | Cover board | |
| 44 | 01811032 | Cover board | |
| 45 | 01811033 | Cover board |
