Каталог запасных частей к технике: XCMG QY70K. 05611003 Boom electric system
1
1
1
1
1
1
2
2
2
2
2
2
3
3
3
3
3
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
42
43
44

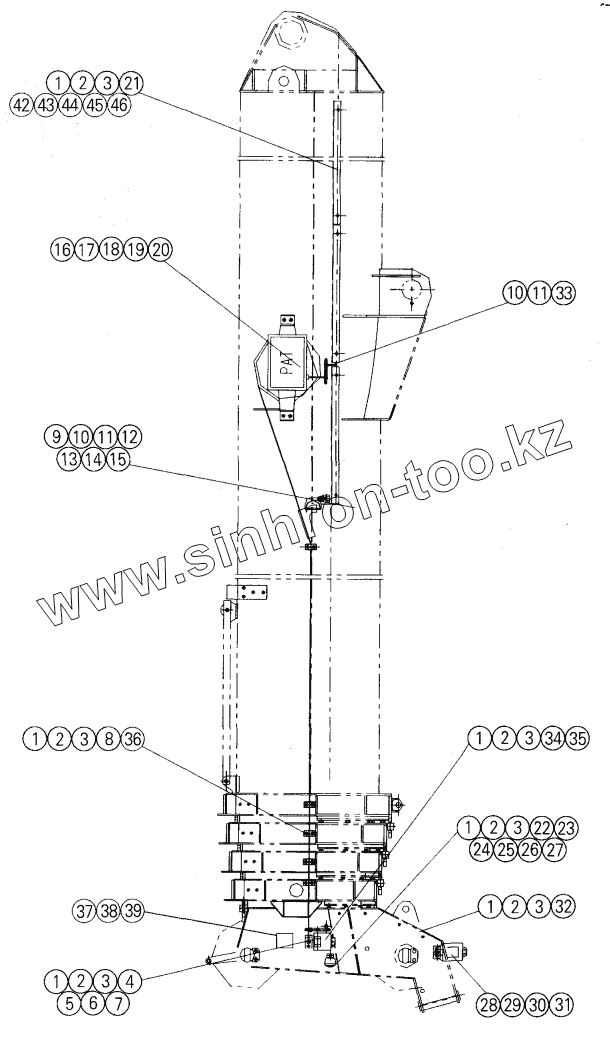

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 10440021 | Washer 6 | |
| 2 | 10440022 | Washer 6 | |
| 3 | 10420102 | Bolt M6x12 | |
| 4 | 01811003 | Wire support | |
| 5 | 11211049 | Loop | |
| 6 | 10260227 | Buckle | |
| 7 | 11413699 | Nip 6KTH | |
| 8 | 10210106 | Moment limiter body | |
| 9 | 01200818 | Working lamp support | |
| 10 | 10230096 | Columniform plug | |
| 11 | 10230093 | The jacket of cloumniform plug | |
| 12 | 10230098 | Columniform jack | |
| 13 | 10230094 | The jacket of columniform jack | |
| 14 | 10200021 | Big lamp | |
| 15 | 30249032 | Cable | |
| 16 | 10210025 | Length and angle sensor | |
| 17 | 11211006 | Clip strip | |
| 18 | 10440006 | Washer 10 | |
| 19 | 10410038 | Bolt M10x30 | |
| 20 | 10440009 | Washer 10 | |
| 21 | 01811009 | Wire support | |
| 22 | 10200170 | Caution lamp | |
| 23 | 01811010 | Caution lamp sup | |
| 24 | 10230040 | Sheet plug | |
| 25 | 10430002 | Nut M5 | |
| 26 | 10440112 | Washer 5 | |
| 27 | 11210952 | Sleeve L=15 | |
| 28 | 01811011 | Post | |
| 29 | 30249032 | Cable | |
| 30 | 10240024 | Heigh limit switch | |
| 31 | 10430004 | Nut M10 | |
| 32 | 01811008 | Bracket | |
| 33 | 30249004 | Insulating tape | |
| 34 | 10420184 | Bolt M4x10 | |
| 35 | 12053655 | Connector box | |
| 36 | 01811018 | Sequential telescoping control device | |
| 37 | 11413174 | anemoscope | |
| 38 | 10470138 | Pin 8x60 | |
| 39 | 06111080 | Anemoscope support | |
| 40 | 10230257 | Male end | |
| 41 | 10230259 | Sealed | |
| 42 | 10230260 | Insert flake | |
| 43 | 10230091 | Double plug | |
| 44 | 10230261 | Sealed |
