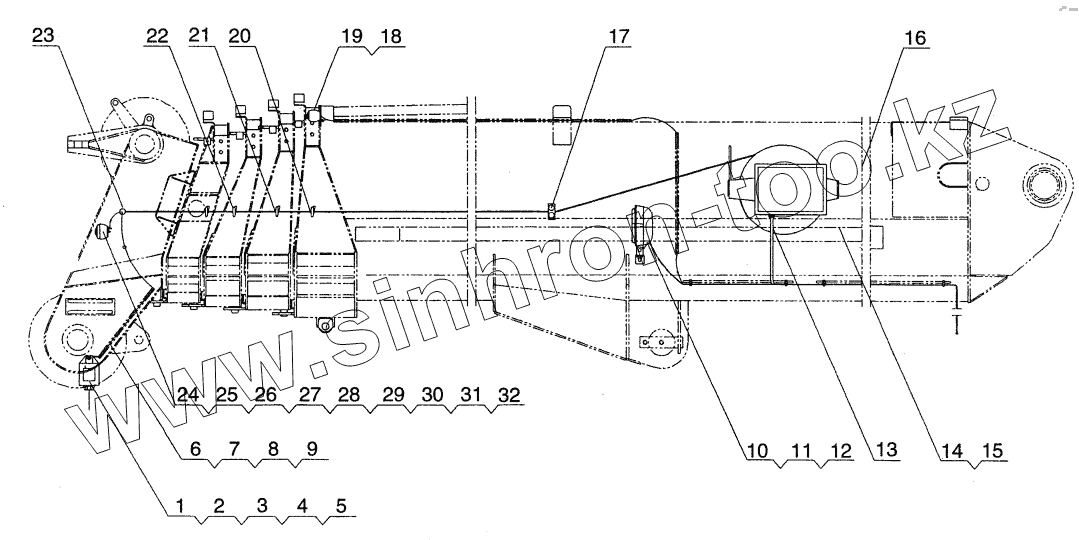

Каталог запасных частей к технике: XCMG QY65K. QY65K.11.3 Boom Electric System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 10240038 | Heigh limit switch | |
| 2 | 10440006 | Washer 10 | |
| 3 | 10440009 | Washer 10 | |
| 4 | 10430004 | Nut M10 | |
| 5 | 11210952 | Sleeve L=15 | |
| 6 | 10230096 | Columniform plug | |
| 7 | 10230098 | Columniform jack | |
| 8 | 10230094 | The jacket of columniform jack | |
| 9 | 10230093 | The jacket of cloumniform plug | |
| 10 | QY65K.11.1-10 | Working lamp support | |
| 11 | 30249130 | Sleeve L=2m | |
| 12 | 10200021 | Big lamp | |
| 13 | 10210025 | Length and angle sensor | |
| 14 | QY65K.11.3.4 | Binded wires | |
| 15 | 11211006 | Clip strip | |
| 16 | QY65K.11.3.3A | Boom electric system welded construction | |
| 17 | 12110280 | Wheel wire control | |
| 18 | QY65K.11.3-10 | Working lamp support | |
| 19 | 10200146 | Small lamp | |
| 20 | QY65K.11.3-5 | Wire support | |
| 21 | QY65K.11.3-6 | Wire support | |
| 22 | QY65K.11.3-7 | Wire support | |
| 23 | QY65K.11.3-1 | Post | |
| 24 | QY65K.11.3-11 | Caution lamp support | |
| 25 | 20200018 | Caution lamp | |
| 26 | 10230040 | Sheet plug | |
| 27 | 10430002 | Nut M5 | |
| 28 | 10440133 | Washer 5 | |
| 29 | 10430009 | Nut М6 | |
| 30 | 10440021 | Washer 6 | |
| 31 | 10440022 | Washer 6 | |
| 32 | 10420222 | Screw M6x10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
