Каталог запасных частей к технике: XCMG QY65K. QY65K.02II.4 4th Section
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
42
43
44
45
46

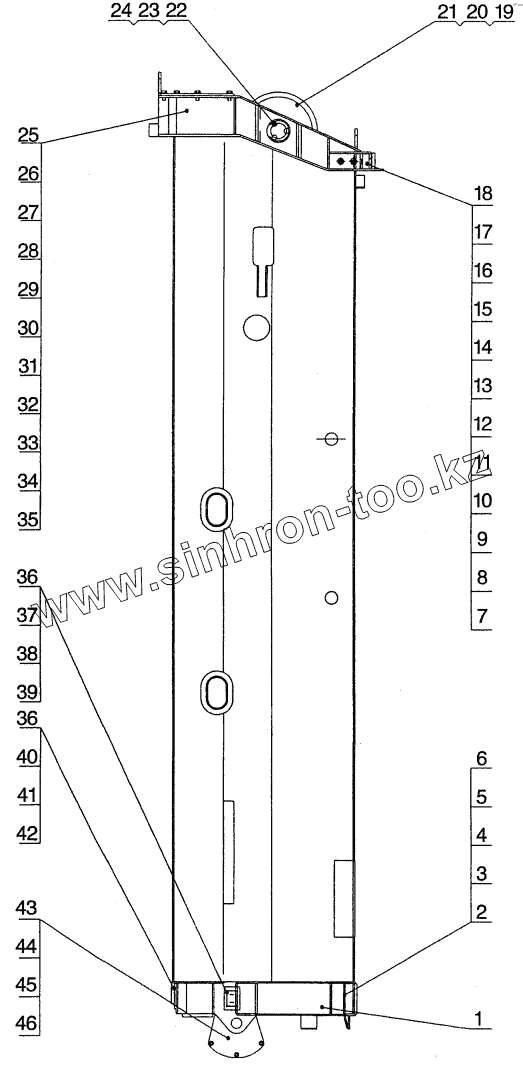

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | QY65K.02II.4.1 | 4 th section structure | |
| 2 | 10810006 | Washer 10 | |
| 3 | QY65K.02II.4-17 | Slider | |
| 4 | QY25K.02II.3-5 | Mat | |
| 5 | QY25K.02II.3-6 | Mat | |
| 6 | QY25K.02II.2-8 | Pin | |
| 7 | 10420079 | Screw M8x25 | |
| 8 | 10440001 | Washer 8 | |
| 9 | 10430001 | Nut М8 | |
| 10 | 10440131 | Washer 8 | |
| 11 | QY35K.02II.3-2 | Plate | |
| 12 | QY35K.02II.3-3 | Skids | |
| 13 | QY25K.02II.l-6 | Bolt | |
| 14 | 10430078 | Nut M16 | |
| 15 | QY25K.02II.l-7 | Support | |
| 16 | 10470107 | Pin B16x80 | |
| 17 | 10470007 | Pin 4x30 | |
| 18 | QY25K.02II.3-2 | Slider | |
| 19 | QY65K.02II.4-6 | Shaft | |
| 20 | QY65K.02II.4-8 | Sleeve | |
| 21 | QY65K.02II.4.7 | Pulley | |
| 22 | QY65K.02II.4-5 | Retaining shaft | |
| 23 | 10410010 | Bolt M8x25 | |
| 24 | 10440001 | Washer 8 | |
| 25 | 10420018 | Bolt M12x30 | |
| 26 | 10440010 | Washer 12 | |
| 27 | QY25K.02II.3-24 | Retaining plate | |
| 28 | QY65K.02II.4-9 | Mat | |
| 29 | QY65K.02II.4-10 | Mat | |
| 30 | QY65K.02II.4-11 | Gasket | |
| 31 | QY65K.02II.4-12A | Slider | |
| 32 | QY65K.02II.4-13A | Slider | |
| 33 | QY65K.02II.4-14 | Gasket | |
| 34 | QY65K.02II.4-15 | Slider | |
| 35 | QY65K.02II.4-16 | Slider | |
| 36 | 10420110 | Screw M8x20 | |
| 37 | QY65K.02II.4-18 | Slider | |
| 38 | QY65K.02II.4-19 | Mat | |
| 39 | QY65K.02II.4-20 | Mat | |
| 40 | QY65K.02II.4-4 | Slider | |
| 41 | QY25K.02II.2-17 | Mat | |
| 42 | QY25K.02II.2-18 | Mat | |
| 43 | QY65K.02II.4-3 | Sleeve | |
| 44 | QY65K.02II.4-2 | Shaft | |
| 45 | QY50K.02II.4.2 | Pulley | |
| 46 | 10450016 | Shield Ring 40 |
