XZ50K.57B Rear Axle

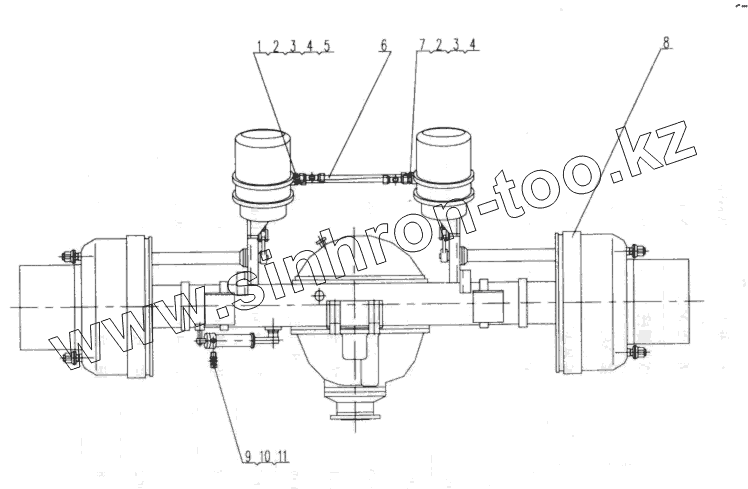

Каталог запасных частей к технике: XCMG QY50K (вариант). XZ50K.57B Rear Axle
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
500KN, 500KSN (2013)
DT-140B (2010)
LW-166 (2008)
LW-541F (2010)
LW300FN (2013)
LW300KN (2013)
LW321F (2010)
QY25K (2010)
QY25K5-I (2009)
QY30K5-I (2009)
QY30KH (2009)
QY30KL (2009)
QY30KT5 (2009)
QY50K (2010)
QY50K (вариант) (2010)
QY65K (2010)
QY70K (2010)
QY70K (вариант) (2010)
WZ30-25 (2008)
WZ30-25 (англ.) (2008)
XCT25L4_S (2019)
XCT25L5_S (2019)
XE150D (2011)
XE230 (2011)
XE80 (2012)
XS143 (2017)
XS160 (XS190) (2010)
XSM218 (XSM220) (2010)
XSM218, XSM220 (2010)
XZ16K-XZ50K (2010)
XZ200 (2014)
XZ320 (2012)
XZ360E (2016)
XZ500 (2012)
XZ65K (2010)
XZ680A (2014)
YL16 (YL20) (2008)
YZC7 (2010)
ZL30BR (2014)
ZL30G (2008)
ZL30H (2012)
ZL50G (2008)
Автогрейдер-GR135 (2012)
ГНБ XZ-180 (2012)
Катки XD30, XD40 (2008)
Раб. оборуд. грейдеров GR (2010)
Схема
>
Не выбрано
YK50K.00 Truck Crane
YK50K.01 Hook
YK50K.02 II Boom
YK50K.02 II.1 Base Boom
YK50K.02 II.1.2 Roll
YK50K.02 II.2 2nd Section
YK50K.02 II.3 3rd Section
YK50K.02 II.4 4th Section
YK50K.02 II.5 Fifth Section
YK50K.02 II.6 Telescoping Units
QY16K.03C Manipulate Ventrieulus
QY16K.05 Rotation Table
QY50K.05.2A Pin
QY50K.06 Slewing Bearing
QY50K.07 Slewing Movement
QY50K.08 Lifting Movement
QY16K.11.1A Operating Cabs Electric System
QY50K.11.1A Turn Table Appliance
QY50K.11.2B Boom Electric System
QY35K.11.3B The Jib Boom Electric System
QY35K.11.4A Boom End Single Pulley Electric System
QY16K.11.6 Balance Electric System
QY50K.13 Hydraulic System Pipeline Of Crane(control)
QY50K.13 Hydraulic System Pipeline of Crane(main)
QY50K.14C Jib Boom
QAY50.18 Boom End Single Chain Wheel
QY50K.20 II Balance
QY50K.20 II.2 Jib Balance
QY35K.29 Sub-hook
QY50K.90 Steel Cable & Ringing
JSQ Cab
XZ16K.25A Lighting System
XZ50K.26 Beam Wires
XZ50K.26 II Beam Wires
XZ16K.74A Battery Box
XZ35K.39А Air Reservoir Assembly
XZ16K.41А Air Valve Assembly
XZ16K.41.1А Foot Relay Valve Assembly
XZ16K.41.2B Solenoid Valve Assembly
XZ16K.41.ЗА Foot Relay Valve Assembly
XZ16K.41.4A Hand Relay Valve Assembly
XZ16K.41.6 Air Dryer Assembly
XZ16K.41.7 Air Reservoir Assembly
XZ50K.41 II Air Valve Assembl
XZA200.41.3 ABS Solenoid Valve Assembly
XZ16C.41.2 Hand Relay Valve Assembly
XZ16C.41.3 Solenoid Valve Assembly
XZ16C.41.4 Foot Relay Valve Assembly
XZ50K.42 Air Circuit Pipe Assembly
XZ50K.42II Pneumatic System Pipe Assembly
XZ50K.45 Engine Install( I )
XZ50K.45 Engine Instalt( II )
XZ50K.45 Engine Install( III )
XZ50K.45 II Engine Install
XZ50K.45 III Engine Install
XZ35K.46 Fuel Tank
XZ50K.46 Fuel Tank
XZ50K.47 Muffler Assembly
XZ25K.47 Muffler Assembly
XZ16K.47 II Muffler Assembly
XZ50K.48 Radiator Assembly
XZ25K.48 Radiator Assembly
XZ50K.50A Gear-box
XZ50K.51 Oil Pump Assembly
XZ50K.51 II Oil Pump Assembly
XZ50K.53B Transmission Shaft
XZ50K.53.1B Forepart Of Transmission Shaft
XZ50K.53.ЗА Transmission Shaft For Middle Axle
XZ16K.53.4 Transmission Shaft For Rear Axle
XZ50K.53 II Tansmission Shaft
XZ50K.53 II. 1 Forepart Of Transmission Shaft
XZ50K.53 II. 3 Transmission Shaft For Middle Axle
XZ50K.53 II. 4 Transmission Shaft For Rear Axle
XZ50K.54 II Front Axle
XZ50K.54A Front Axle
16DIF-C105CF Front Axle
Front Axle Hub
XZ35K.55A Front Suspension
XZ35K.55.2А Plate Spring
XZ50K.56B Middle Axle
80794000 Middle Axle
Middle Axle Redarder
XZ50K.57B Rear Axle
80737000 Rear Axle
Rear Axle Redarder
Raer Axle Hub Reducter
Rear Axle Break Assembly
XZ50K.56 III Third Axle
XZ50K.57 III Real Axle
xz16K.58A Rear Suspension(Pull Rod Fixing)
XZ16K.58A Rear Suspension(Balance Beam Fixing)
XZ16K.58A Rear Suspension(Plate Spring Fixing)
XZ16K.58. 3.2 Pull Rod Fixing
XZ16K.58.5 Plate Spring
XZ50K.37B Steering Hydraulic System
XZ50K.65 Steering System
XZ50K.67 Air Filter Assembly
А473 Air Filter Assembly
Р012 Her Cleaner Assembly
XZ50K.70A Transmission Operation
XZ16K.83A Air Conditioning Unit
XZ25K.83A Air Conditioning Unit
QY50K.65А Carrier Pipe Assembly
QY50K.65.1 Pipes For Valve To Outrigge
QY50K.65.ЗА Pipes For Pressure Oil
QY50K.65.4A Pipes For Pressure Oil
QY50K.65.5 Pipes For Front Outrigger Oil
QY50K.65.6 Pipes For Outrigger
QY35K.66 Hydraulic Oil Tank
QY35K.67 Hydraulic Oil Tank Support
QY50K.68 Level Cylinder
QY50K.69.1 The Front Vertical Cylinder
QY50K.69.2 The Front Vertical Cylinder
QY16K.70 Center Revolving Body
QY16K.70 II Center Revolving Body
QY50K.72A Outrigger Operation System
1
2
2
3
3
4
4
5
6
7
8
9
10
11
Позиция на иллюстрации
Заводской номер детали
Название детали
1
XZ16K.56-1A
Endstraight connector
2
10440018
Wаshеr 16
3
10120341
Сlip slееvе 14
4
10121953
Nut Е14
5
10120534
Соnnесtiоn G14
6
10124653
Rubbеr hоsе соnnесtоr
7
XZ16K.56-3A
Endstraight connector
8
16TMRF-D222BC
Drive axle
9
10440029
Wаshеr 10
10
10120724
Соnnесtiоn Е6
11
10410246
Воlt М10х1
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
