Каталог запасных частей к технике: XCMG QY50K (вариант). XZ16K.58. 3.2 Pull Rod Fixing

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 500KN, 500KSN (2013) DT-140B (2010) LW-166 (2008) LW-541F (2010) LW300FN (2013) LW300KN (2013) LW321F (2010) QY25K (2010) QY25K5-I (2009) QY30K5-I (2009) QY30KH (2009) QY30KL (2009) QY30KT5 (2009) QY50K (2010) QY50K (вариант) (2010) QY65K (2010) QY70K (2010) QY70K (вариант) (2010) WZ30-25 (2008) WZ30-25 (англ.) (2008) XCT25L4_S (2019) XCT25L5_S (2019) XE150D (2011) XE230 (2011) XE80 (2012) XS143 (2017) XS160 (XS190) (2010) XSM218 (XSM220) (2010) XSM218, XSM220 (2010) XZ16K-XZ50K (2010) XZ200 (2014) XZ320 (2012) XZ360E (2016) XZ500 (2012) XZ65K (2010) XZ680A (2014) YL16 (YL20) (2008) YZC7 (2010) ZL30BR (2014) ZL30G (2008) ZL30H (2012) ZL50G (2008) Автогрейдер-GR135 (2012) ГНБ XZ-180 (2012) Катки XD30, XD40 (2008) Раб. оборуд. грейдеров GR (2010)

Схема > Не выбрано YK50K.00 Truck Crane YK50K.01 Hook YK50K.02 II Boom YK50K.02 II.1 Base Boom YK50K.02 II.1.2 Roll YK50K.02 II.2 2nd Section YK50K.02 II.3 3rd Section YK50K.02 II.4 4th Section YK50K.02 II.5 Fifth Section YK50K.02 II.6 Telescoping Units QY16K.03C Manipulate Ventrieulus QY16K.05 Rotation Table QY50K.05.2A Pin QY50K.06 Slewing Bearing QY50K.07 Slewing Movement QY50K.08 Lifting Movement QY16K.11.1A Operating Cabs Electric System QY50K.11.1A Turn Table Appliance QY50K.11.2B Boom Electric System QY35K.11.3B The Jib Boom Electric System QY35K.11.4A Boom End Single Pulley Electric System QY16K.11.6 Balance Electric System QY50K.13 Hydraulic System Pipeline Of Crane(control) QY50K.13 Hydraulic System Pipeline of Crane(main) QY50K.14C Jib Boom QAY50.18 Boom End Single Chain Wheel QY50K.20 II Balance QY50K.20 II.2 Jib Balance QY35K.29 Sub-hook QY50K.90 Steel Cable & Ringing JSQ Cab XZ16K.25A Lighting System XZ50K.26 Beam Wires XZ50K.26 II Beam Wires XZ16K.74A Battery Box XZ35K.39А Air Reservoir Assembly XZ16K.41А Air Valve Assembly XZ16K.41.1А Foot Relay Valve Assembly XZ16K.41.2B Solenoid Valve Assembly XZ16K.41.ЗА Foot Relay Valve Assembly XZ16K.41.4A Hand Relay Valve Assembly XZ16K.41.6 Air Dryer Assembly XZ16K.41.7 Air Reservoir Assembly XZ50K.41 II Air Valve Assembl XZA200.41.3 ABS Solenoid Valve Assembly XZ16C.41.2 Hand Relay Valve Assembly XZ16C.41.3 Solenoid Valve Assembly XZ16C.41.4 Foot Relay Valve Assembly XZ50K.42 Air Circuit Pipe Assembly XZ50K.42II Pneumatic System Pipe Assembly XZ50K.45 Engine Install( I ) XZ50K.45 Engine Instalt( II ) XZ50K.45 Engine Install( III ) XZ50K.45 II Engine Install XZ50K.45 III Engine Install XZ35K.46 Fuel Tank XZ50K.46 Fuel Tank XZ50K.47 Muffler Assembly XZ25K.47 Muffler Assembly XZ16K.47 II Muffler Assembly XZ50K.48 Radiator Assembly XZ25K.48 Radiator Assembly XZ50K.50A Gear-box XZ50K.51 Oil Pump Assembly XZ50K.51 II Oil Pump Assembly XZ50K.53B Transmission Shaft XZ50K.53.1B Forepart Of Transmission Shaft XZ50K.53.ЗА Transmission Shaft For Middle Axle XZ16K.53.4 Transmission Shaft For Rear Axle XZ50K.53 II Tansmission Shaft XZ50K.53 II. 1 Forepart Of Transmission Shaft XZ50K.53 II. 3 Transmission Shaft For Middle Axle XZ50K.53 II. 4 Transmission Shaft For Rear Axle XZ50K.54 II Front Axle XZ50K.54A Front Axle 16DIF-C105CF Front Axle Front Axle Hub XZ35K.55A Front Suspension XZ35K.55.2А Plate Spring XZ50K.56B Middle Axle 80794000 Middle Axle Middle Axle Redarder XZ50K.57B Rear Axle 80737000 Rear Axle Rear Axle Redarder Raer Axle Hub Reducter Rear Axle Break Assembly XZ50K.56 III Third Axle XZ50K.57 III Real Axle xz16K.58A Rear Suspension(Pull Rod Fixing) XZ16K.58A Rear Suspension(Balance Beam Fixing) XZ16K.58A Rear Suspension(Plate Spring Fixing) XZ16K.58. 3.2 Pull Rod Fixing XZ16K.58.5 Plate Spring XZ50K.37B Steering Hydraulic System XZ50K.65 Steering System XZ50K.67 Air Filter Assembly А473 Air Filter Assembly Р012 Her Cleaner Assembly XZ50K.70A Transmission Operation XZ16K.83A Air Conditioning Unit XZ25K.83A Air Conditioning Unit QY50K.65А Carrier Pipe Assembly QY50K.65.1 Pipes For Valve To Outrigge QY50K.65.ЗА Pipes For Pressure Oil QY50K.65.4A Pipes For Pressure Oil QY50K.65.5 Pipes For Front Outrigger Oil QY50K.65.6 Pipes For Outrigger QY35K.66 Hydraulic Oil Tank QY35K.67 Hydraulic Oil Tank Support QY50K.68 Level Cylinder QY50K.69.1 The Front Vertical Cylinder QY50K.69.2 The Front Vertical Cylinder QY16K.70 Center Revolving Body QY16K.70 II Center Revolving Body QY50K.72A Outrigger Operation System

1

2

3

4

5

6

7

8

9

10

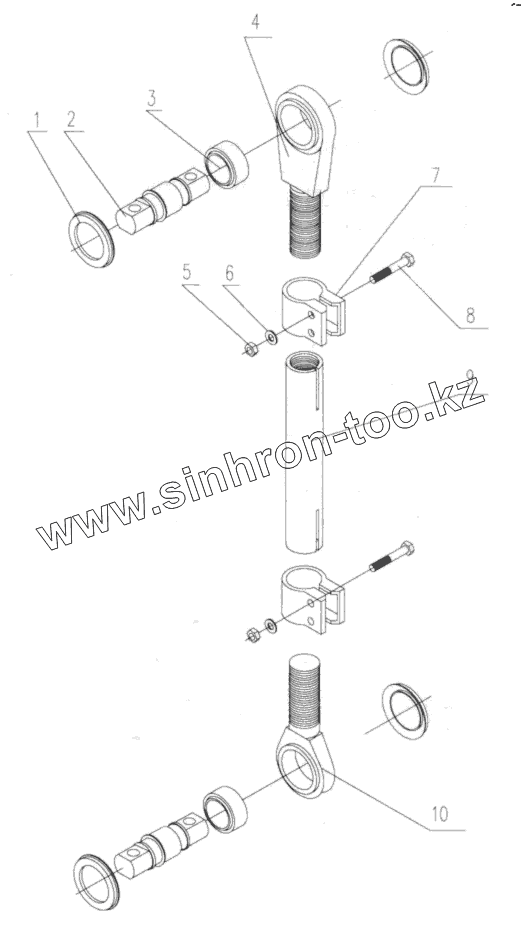

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Cover		Cover
2	Pin		Pin shaft
3	GB3041-81		Bear
4	Head		Head
5	10430005		Nut M12
6	10440012		Washer 12
7	Clip		Clip
8	10410852		Bolt
9	Shanft		Shanft
10	Head		Head

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
