Каталог запасных частей к технике: XCMG QY50K. Стрела
2
3
14
15
15
15
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

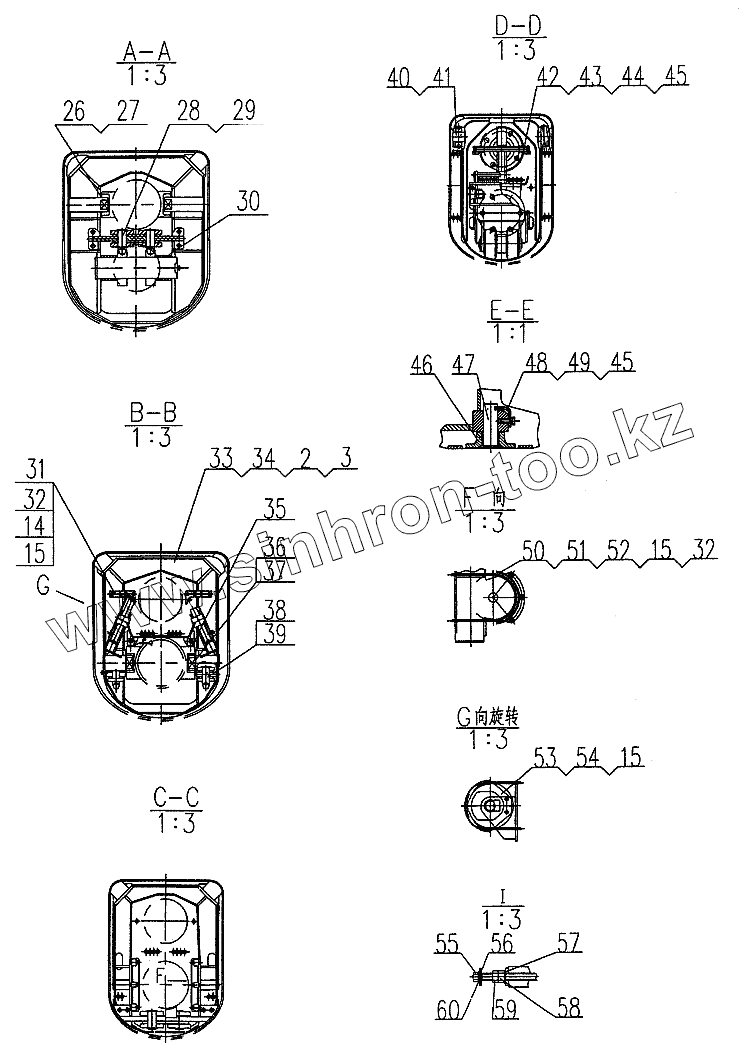

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 10410038 | Bolt M10x30 | |
| 3 | 10440006 | Washer 10 | |
| 14 | 10410011 | Bolt M8x20 | |
| 15 | 10440001 | Washer 8 | |
| 26 | QY50K.02II.6-17 | Mat | |
| 27 | QY50K.02II.6-18 | Mat | |
| 28 | QY50K.02II.6-19 | Pin Shaft | |
| 29 | QY50K.02II.6-20 | Clip | |
| 30 | QY50K.02II.6-21 | Space | |
| 31 | QY50K.02II.6.22 | Rope Hold | |
| 32 | 10440062 | Washer 8 | |
| 33 | QY50K.02II.6.23 | Rope Trestle | |
| 34 | 10440009 | Washer 10 | |
| 35 | QY50K.02II.6-24 | Plate | |
| 36 | QY50K.02II.6-25 | Mat | |
| 37 | QY50K.02II.6-26 | Mat | |
| 38 | QY25K.02II.5-27 | Pin | |
| 39 | QY25K.02II.5-28 | Clip | |
| 40 | QY25K.02II.5.22 | Wheel | |
| 41 | QY50K.02II.6-27 | Pin Shaft | |
| 42 | QY50K.02II.6-28 | Rope Holder | |
| 43 | 10410006 | Bolt M6x35 | |
| 44 | 10430009 | Nut М6 | |
| 45 | 10440022 | Washer 6 | |
| 46 | QY50K.02II.6.30 | Pully | |
| 47 | QY50K.02II.6-31 | Pin | |
| 48 | QY50K.02II.6-32 | Retaining Plate | |
| 49 | 10410374 | Bolt M6x16 | |
| 50 | QY50K.02II.6.33A | Rope Holder | |
| 51 | 10420399 | Bolt M8x35 | |
| 52 | 10430001 | Nut М8 | |
| 53 | QY50K.02II.6.34 | Rope Holder | |
| 54 | 10410026 | Bolt M8x16 | |
| 55 | 10430224 | Nut M12 | |
| 56 | 10440119 | Washer 16 | |
| 57 | 10440005 | Washer 16 | |
| 58 | 10430008 | Nut M20 | |
| 59 | 10430125 | Nut M20 | |
| 60 | 10440005 | Washer 16 |
