Каталог запасных частей к технике: XCMG QY50K. Гидросистема
1
2
3
4
5
6
7
8
9
11
11
12
12
13
13
14
14
14
15
15
16
16
17
17
18
18
19
20
21
22
24
25
25
25
25
26
27
28
29
30
32
33
36
43
43
44
45
46
47
48
51
51
54
55
56
57

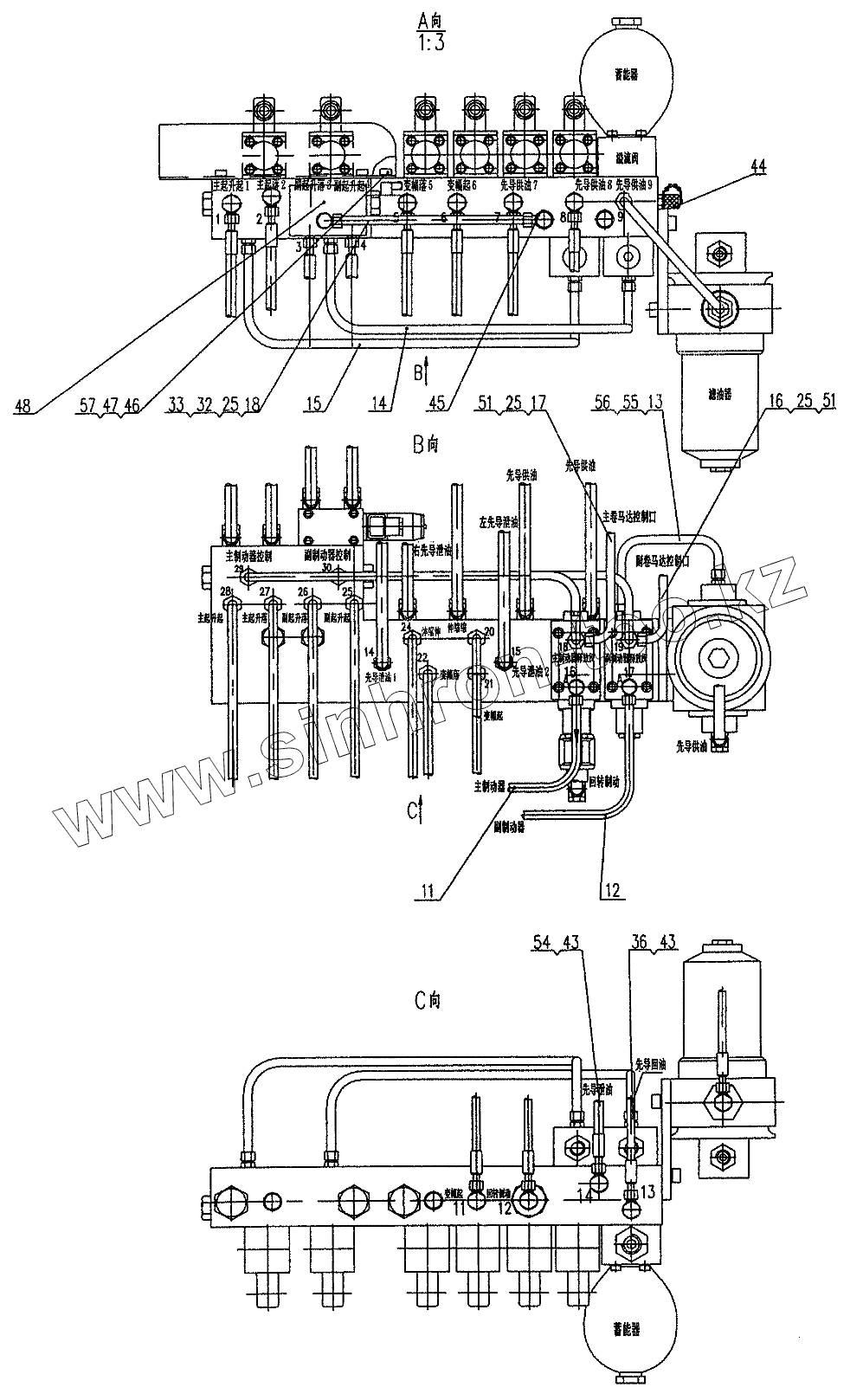

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | QY16K.13.1-1 | Fitting | |
| 2 | QY16K.13.1-2 | Bracket | |
| 3 | QY35K.13.1-1 | Seamless tube d8x1.5 | |
| 4 | QY35K.13.1-2 | Seamless tube d8x1.5 | |
| 5 | QY35K.13.1-3 | Seamless tube d8x1.5 | |
| 6 | QY35K.13.1-4 | Seamless tube d8x1.5 | |
| 7 | QY35K.13.1-5 | Seamless tube d8x1.5 | |
| 8 | QY35K.13.1-6 | Seamless tube d8x1.5 | |
| 9 | QY35K.13.1-7 | Seamless tube d8x1.5 | |
| 11 | QY35K.13.1-9 | Seamless tube d8x1.5 | |
| 12 | QY35K.13.1-10 | Seamless tube d8x1.5 | |
| 13 | QY35K.13.1-11 | Seamless tube d10x1.5 | |
| 14 | QY35K.13.1-12 | Seamless tube d8x1.5 | |
| 15 | QY35K.13.1-13 | Seamless tube d8x1.5 | |
| 16 | QY35K.13.1-14 | Seamless tube d8x1.5 | |
| 17 | QY35K.13.1-15 | Seamless tube d8x1.5 | |
| 18 | QY35K.13.2.16А | Pipes of elevating mech | |
| 19 | QY35K.13.1-17 | Seamless tube d8x1.5 | |
| 20 | QY35K.13.1-18 | Seamless tube d8x1.5 | |
| 21 | QY35K.13.1-19 | Seamless tube d8x1.5 | |
| 22 | QY35K.13.1-20 | Seamless tube d8x1.5 | |
| 23 | 20100417 | Pilot unit righ land | |
| 24 | 20100418 | Pilot unit left land | |
| 25 | 10120574 | Fitting G8/G1/4 | |
| 26 | 10440016 | Washer 14 | |
| 27 | 10440017 | Washer 12 | |
| 28 | 10123043 | Tube | |
| 29 | 10123042 | Tube | |
| 30 | 10110032 | Filter | |
| 32 | 10123035 | Nut 8 | |
| 33 | 10120107 | Cutting ring 8 | |
| 36 | 10123038 | Tube | |
| 41 | 10122445 | Fitting E8 | |
| 42 | 10123037 | Tube | |
| 43 | 10120695 | Fitting G10/G1/4 | |
| 44 | 20120505 | Fitting | |
| 45 | 10100154 | Contrlo valve block | |
| 46 | 10420002 | Screw M10x20 | |
| 47 | 10440006 | Washer 10 | |
| 48 | 10100257 | Electromagnetic valve | |
| 49 | 10123045 | Fitting G08 | |
| 50 | 10122317 | Fitting G8 | |
| 51 | 20121679 | Fitting | |
| 52 | 10123041 | Tube | |
| 53 | 10123044 | Tube | |
| 54 | 10123043 | Tube | |
| 55 | 10120369 | Nut G10 | |
| 56 | 10120368 | Cutting ring G10 | |
| 57 | 10420034 | Screw M8x20 | |
| 58 | 10420108 | Screw M6x35 | |
| 59 | 10440022 | Washer 6 |
