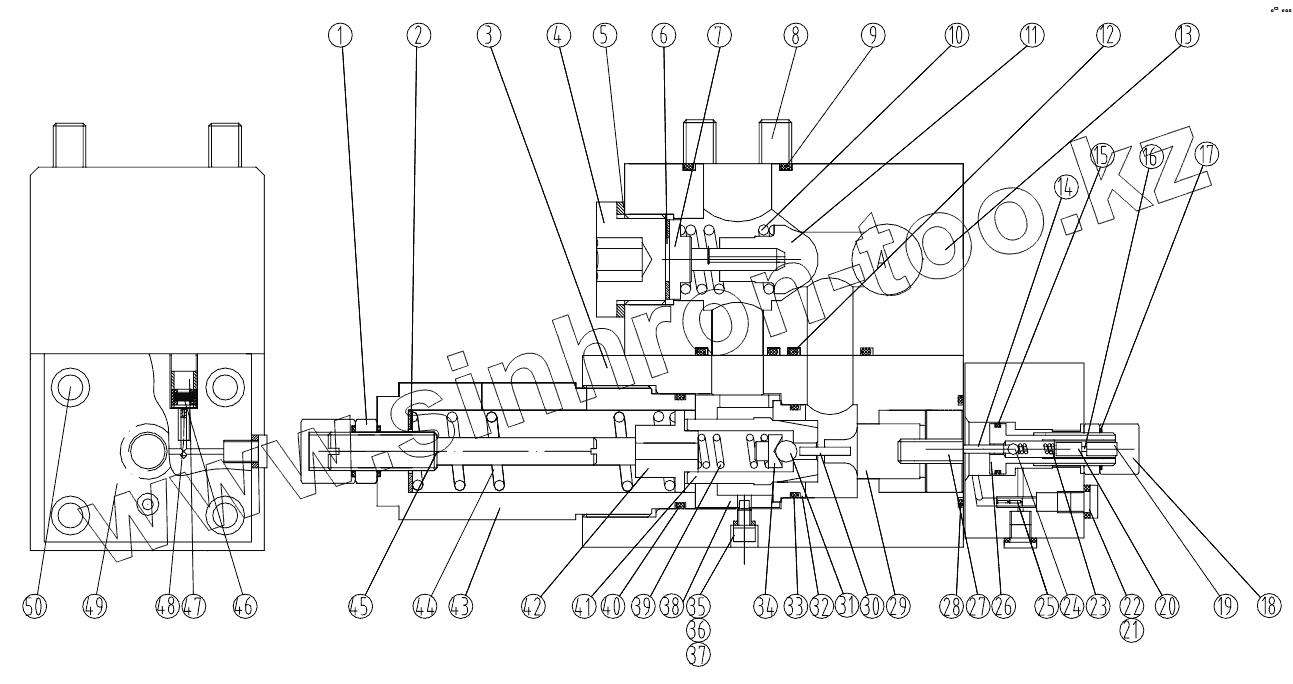

Каталог запасных частей к технике: XCMG QY30KL. 803000300 Load Control

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Nut M14x1		Nut M14x1
2	Washer		Washer
3	body valve		body valve
4	Plug M33x1.5		Plug M33x1.5
5	Gasket 33		Gasket 33
6	Washer 16x1.5		Washer 16x1.5
7	seat		Seat
8	Bolt M12x75		Bolt M12x75
9	O- ring 40x3.5		O- ring 40x3.5
10	Spring		Spring
11	valve		Valve
12	O-ring 31x3.5		O-ring 31x3.5
13	Body Valve		Body Valve
14	Needle 3x30		Needle 3x30
15	O-ring 17x1.8		O-ring 17x1.8
16	Ring 4		Ring 4
17	O-ring 15x1.8		O-ring 15x1.8
18	Nut M14x1		Nut M14x1
19	Bolt M8x10		Bolt M8x10
20	Bolt M8x10		Bolt M8x10
21	Plug M8x1		Plug M8x1
22	Gasket 8		Gasket 8
23	Spring		Spring
24	Steel ball 6		Steel ball 6
25	Damping 0.3		Damping 0.3
26	Adjustment bar		Adjustment bar
27	Bolt M8x25		Bolt M8x25
28	O-ring 35.5x2.65		O-ring 35.5x2.65
29	Ram		Ram
30	Needle 3x20		Needle 3x20
31	Steel ball 8		Steel ball 8
32	Seat1		Seat1
33	O-ring 30x2.65		O-ring 30x2.65
34	Seat2		Seat2
35	Gasker 5		Gasker 5
36	Ring 5		Ring 5
37	Bolt M5x12		Bolt M5x12
38	Valve sheath		Valve sheath
39	Spring		Spring
40	O-ring 42x3.1		O-ring 42x3.1
41	Valve		Valve
42	Seat3		Seat3
43	Spring sheath		Spring sheath
44	Spring		Spring
45	Adjustment bar		Adjustment bar
46	Gravitation filter		Gravitation filter
47	Bolt nut M10x4		Bolt nut M10x4
48	Damping		Damping
49	Valve cover		Valve cover
50	Bolt M8x25		Bolt M8x25

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
