Каталог запасных частей к технике: XCMG QY25K. QY25K.13 Hydraulic System Pipeline of Crane (main)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
24
24
25
26
26
27
27
27
28
29
30
31
32
32
32
32
32
33
34
35
35
35
36
37
38
38
38
38
39
39
39
40
41
42
43
44
45
46
47
48
49
50
51

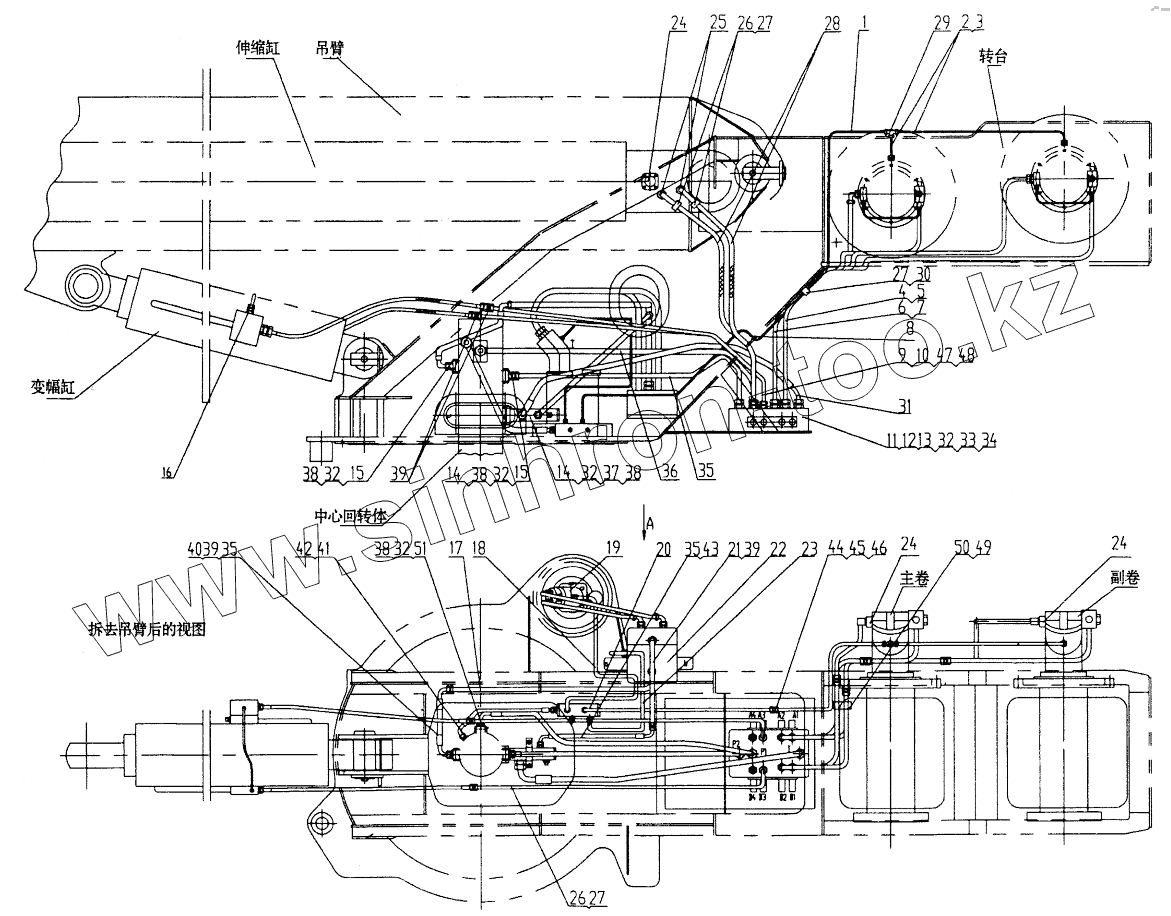

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | QY25K.13.1-1 | Seamless tube d.10x1.5 | |
| 2 | QY25K.13.1-2 | Seamless tube d.10x1.5 | |
| 3 | QY25K.13.1-3 | Seamless tube d.10x1.5 | |
| 4 | QY25K.13.1-4 | Seamless tube d.25x2.5 | |
| 5 | QY25K.13.1-5 | Seamless tube d.25x2.5 | |
| 6 | QY25K.13.1-6 | Seamless tube d.25x2.5 | |
| 7 | QY25K.13.1-7 | Seamless tube d.25x2.5 | |
| 8 | QY25K.13.1-8 | Seamless tube d.10x1.5 | |
| 9 | QY25K.13.1-9 | Seamless tube d.20x2 | |
| 10 | QY25K.13.1-10 | Seamless tube d.20x2 | |
| 11 | QY16K.13.2.11А | Assembly of operating valve | |
| 12 | QY16K.13.2-12 | Bracket | |
| 13 | QY25K.13.1-19 | Tendon | |
| 14 | QY16K.13.2.14 | Compositive- pipe | |
| 15 | QY16K.13.2.24В | Pipes of lifting mech | |
| 16 | QY16K.13.2.17А | Pipes of elevatin mech | |
| 17 | QY25K.13.1-11 | Seamless tube d.20x2 | |
| 18 | QY25K.13.1-12 | Seamless tube d.10x1.5 | |
| 19 | QY16K.13.2.19А | Pipes of swing gear | |
| 20 | QY16K.13.2.21 | Compositive- pipe | |
| 21 | QY25К.13.1-13 | Seamless tube d.20x2 | |
| 22 | QY16K.13.2.18 | Pipes of Commutation valve | |
| 23 | QY25K.13.1-14 | Seamless tube d.10x1.5 | |
| 24 | 10100147 | Balance valve | |
| 25 | 20120452 | Fitting | |
| 26 | 10121099 | Pipe clip | |
| 27 | 11210545 | Track | |
| 28 | 10120698 | Tube | |
| 29 | 10120846 | Fitting G10 | |
| 30 | 11211003 | Pipe clip | |
| 31 | 10123130 | Tube | |
| 32 | 10410229 | Bolt M10x100 | |
| 33 | 10440006 | Washer 10 | |
| 34 | 10430004 | Nut M10 | |
| 35 | 10121041 | Tube | |
| 36 | 10123131 | Tube | |
| 37 | 20130003 | О-ring 47.22x3.55 | |
| 38 | 10420005 | Screw M10x25 | |
| 39 | 20120459 | Fitting | |
| 40 | 10123132 | Tube | |
| 41 | 10120560 | Fitting G14 | |
| 42 | 10123133 | Tube | |
| 43 | 10121002 | Tube | |
| 44 | 10120539 | Fitting G10 | |
| 45 | 10120529 | Nut 10 | |
| 46 | 10120368 | Cutting ring G10 | |
| 47 | 20430008 | Nut | |
| 48 | 20120472 | Cuting ring | |
| 49 | 11211034 | Track L=180 | |
| 50 | 11210339 | Pipe clip | |
| 51 | 10123947 | Flange |
