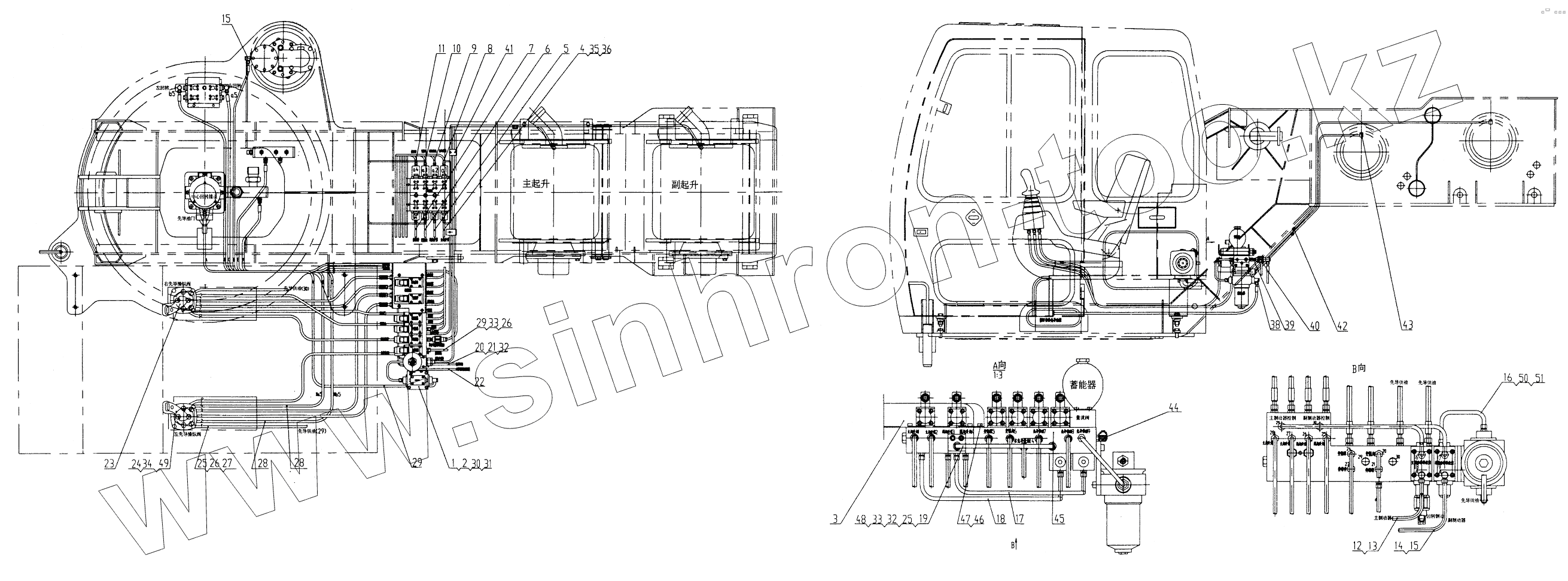

Каталог запасных частей к технике: XCMG QY25K. QY25K.13 Hydraulic System Pipeline of Crane (control)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
29
29
30
31
32
32
33
33
34
35
36
38
39
40
41
42
43
44
45
46
47
48
49
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | QY16K.13.1-1 | Fitting | |
| 2 | QY16K.13.1-2 | Bracket | |
| 3 | QY16K.13.1-16А | QY16K.13.1-16А | |
| 4 | QY25K.13.3-1 | Seamless tube d.8x1.5 | |
| 5 | QY25K.13.3-2 | Seamless tube d.8x1.5 | |
| 6 | QY25K.13.3-3 | Seamless tube d.8x1.5 | |
| 7 | QY25K.13.3-4 | Seamless tube d.8x1.5 | |
| 8 | QY25K.13.3-5 | Seamless tube d.8x1.5 | |
| 9 | QY25K.13.3-6 | Seamless tube d.8x1.5 | |
| 10 | QY25K.13.3-7 | Seamless tube d.8x1.5 | |
| 11 | QY25K.13.3-8 | Seamless tube d.8x1.5 | |
| 12 | QY25K.13.3-9 | Seamless tube d.8x1.5 | |
| 13 | QY25K.13.3-10 | Seamless tube d.8x1.5 | |
| 14 | QY25K.13.3-11 | Seamless tube d.8x1.5 | |
| 15 | QY25K.13.3-12 | Seamless tube d.8x1.5 | |
| 16 | QY25K.13.3-13 | Seamless tube d.10x1.5 | |
| 17 | QY25K.13.3-14 | Seamless tube d.8x1.5 | |
| 18 | QY25K.13.3-15 | Seamless tube d.8x1.5 | |
| 19 | QY25K.13.3-16 | Seamless tube d.8x1.5 | |
| 20 | QY25К.13.3-17 | Seamless tube d.10x1.5 | |
| 21 | QY25K.13.3-18 | Seamless tube d.10x1.5 | |
| 22 | QY25K.13.3-19 | Seamless tube d.8x1.5 | |
| 23 | 20100417 | Pilot unit righ land | |
| 24 | 20100418 | Pilot unit left land | |
| 25 | 10120574 | Fitting G8/G1/4 | |
| 26 | 10440016 | Washer 14 | |
| 27 | 10123137 | 10123137 | |
| 28 | 10123136 | 10123136 | |
| 29 | 10123135 | 10123135 | |
| 30 | 101101032 | 101101032 | |
| 31 | 10440008 | Washer 33 | |
| 32 | 10120539 | Fitting G10 | |
| 33 | 10120695 | Fitting G10/G1/4 | |
| 34 | 10440022 | Washer 6 | |
| 35 | 10123035 | Nut 8 | |
| 36 | 10120107 | Cutting ring 8 | |
| 37 | 10122445 | Fitting E8 | |
| 38 | 10120692 | Fitting G8/G1/4 | |
| 39 | 10122101 | Fitting G8/G1/4 | |
| 40 | 10100152 | Throttle check valve | |
| 41 | 11211190 | Pipe clip | |
| 42 | 10123045 | Fitting G08 | |
| 43 | 10122317 | Fitting G8 | |
| 44 | 20120505 | Fitting | |
| 45 | 10100154 | Contrlo valve block | |
| 46 | 10420146 | Bolt M10x20 | |
| 47 | 10440006 | Washer 10 | |
| 48 | 10100257 | Electromagnetic valve | |
| 49 | 10420029 | Bolt М6х30 | |
| 50 | 10120369 | Nut G10 | |
| 51 | 10120368 | Cutting ring G10 |
