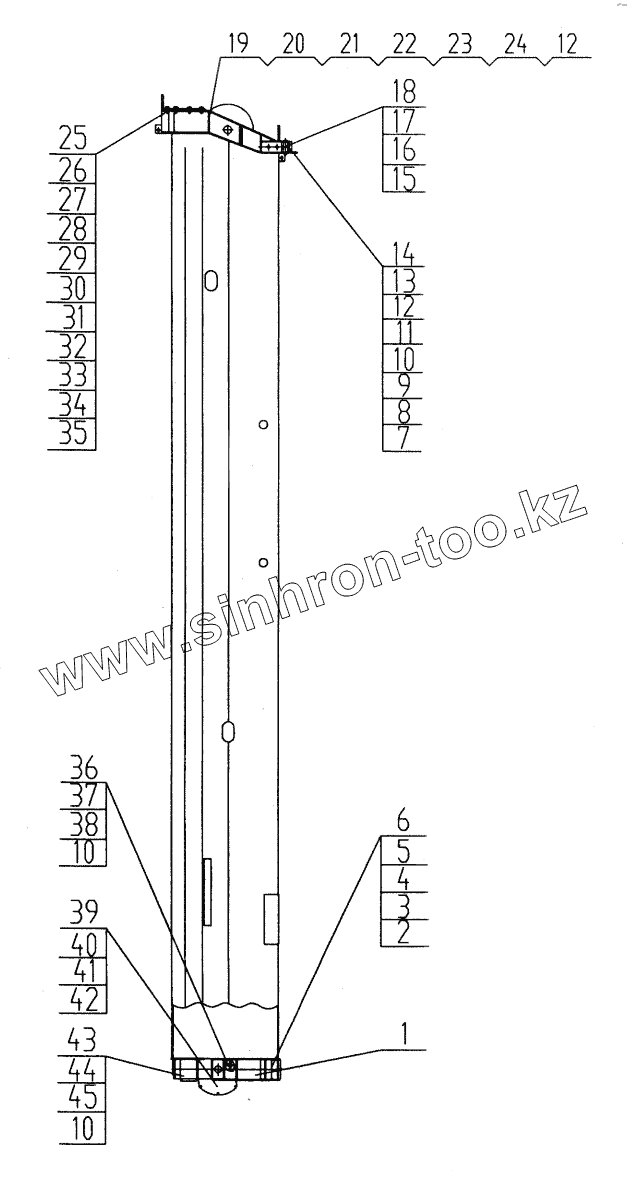

Каталог запасных частей к технике: XCMG QY25K. QY25K.02III.3 3rd Section
1
2
3
4
5
6
7
8
9
10
10
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | QY25K.02III.3.1 | 3rd section structure | |
| 2 | QY25K.02III.3-10 | Slider | |
| 3 | QY25K.02II.3-5 | Mat | |
| 4 | QY25K.02II.3-6 | Mat | |
| 5 | QY25K.02II.2-8 | Pin | |
| 6 | 10810006 | Washer 10 | |
| 7 | QY25K.02II.1-6 | Bolt | |
| 8 | QY25K.02II.3-25 | Plate | |
| 9 | QY25K.02II.3-26 | Plate | |
| 10 | 10420206 | Screw M8x25 | |
| 11 | 10440001 | Washer 8 | |
| 12 | 10430001 | Nut М8 | |
| 13 | 10440131 | Washer 8 | |
| 14 | 10430078 | Nut M16 | |
| 15 | QY25K.02II.1-7 | Support | |
| 16 | QY25K.02II.3-2 | Slider | |
| 17 | 10470107 | Pin B16x80 | |
| 18 | 10470007 | Pin 4x30 | |
| 19 | QY25K.02II.3-11 | Retaining plate | |
| 20 | QY25K.02II.3-12 | Bolt | |
| 21 | QY25K.02II.3-13 | Sleeve | |
| 22 | QY25K.02II.3-14 | Shaft | |
| 23 | QY25K.02II.3-15 | Bushing | |
| 24 | QY25K.02II.3.19 | Pulley | |
| 25 | QY25K.02II.3-2 | Slider | |
| 26 | QY25K.02III.3-3 | Mat t1x121x125 | |
| 27 | QY25K.02III.3-4 | Mat | |
| 28 | QY25K.02III.3-5A | Slider | |
| 29 | QY25K.02III.3-6 | Mat | |
| 30 | QY25K.02III.3-7A | Slider | |
| 31 | QY25K.02III.3-8A | Slider | |
| 32 | QY25K.02II.3-24 | Retaining plate | |
| 33 | QY25K.02III.3-9 | Slider | |
| 34 | 10440010 | Washer 12 | |
| 35 | 10420018 | Bolt M12x30 | |
| 36 | QY25K.02II.2-14 | Mat | |
| 37 | QY25K.02II.2-15 | Mat | |
| 38 | QY25K.02II.3-10 | Slider | |
| 39 | QY25K.02II.3.3 | Pulley | |
| 40 | QY25K.02II.3-7 | Pin shaft | |
| 41 | QY25K.02II.3-8 | Sleeve | |
| 42 | 10450016 | Shield Ring 40 | |
| 43 | QY25K.02II.2-17 | Mat | |
| 44 | QY25K.02II.2-18 | Mat | |
| 45 | QY25K.02III.2-3 | Slider |
