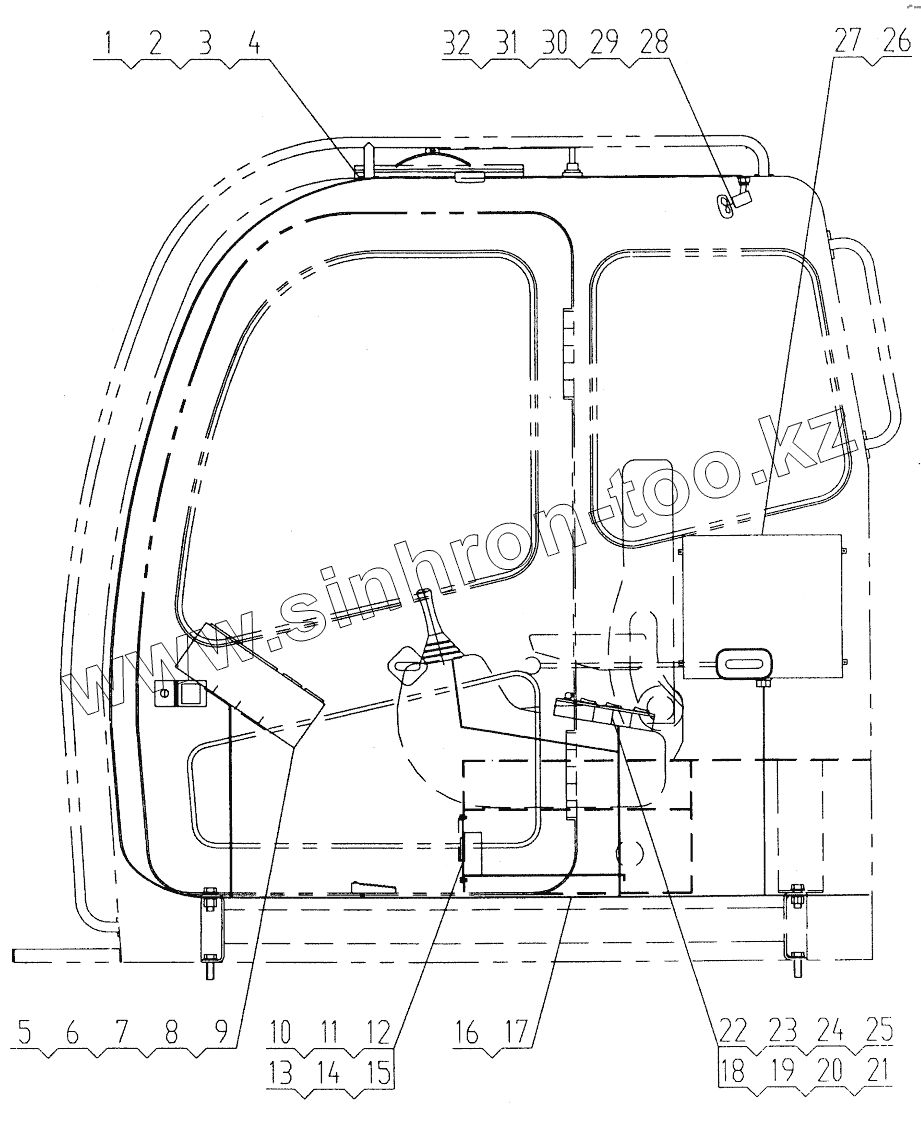

Каталог запасных частей к технике: XCMG QY25K. QY16K.11.1А Operating Cabs Electric System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | QY16K.11.1.1А | Operating cabs wiers | |
| 2 | 20240056 | Push Switch | |
| 3 | 10200086 | Lamp | |
| 4 | 10230031 | Sheet plug | |
| 5 | QY16K.11.1.6A | Control boxassembly | |
| 6 | 10440021 | Washer 6 | |
| 7 | 10440022 | Washer 6 | |
| 8 | 10430009 | Nut М6 | |
| 9 | 10410024 | Bolt M6x25 | |
| 10 | QY16K.11.1.11 | Control plate assembly | |
| 11 | 10240095 | Fuse boxassembly | |
| 12 | QY16K.11.1-12 | Fuse assembly instruction | |
| 13 | 10430002 | Nut M5 | |
| 14 | 10440133 | Washer 5 | |
| 15 | QY16K.11.1.2 | Control plate support | |
| 16 | 20240058 | Check switch | |
| 17 | 10230045 | Double plug | |
| 18 | QY16K.11.1-8 | Control instruction II | |
| 19 | QY16K.11.1.10В | Right control assembly | |
| 20 | 10230087 | The jacket of plug | |
| 21 | 10440112 | Washer 5 | |
| 22 | 10420255 | Screw M5x12 | |
| 23 | QY16K.11.1.9 | Left control assembly | |
| 24 | 10230019 | The jacket of plug | |
| 25 | QY16K.11.1-7 | Control instruction I | |
| 26 | 10210092 | Moment limiter body | |
| 27 | 11210123 | Clip strip | |
| 28 | 10230047 | The jacket of plug | |
| 29 | 10440062 | Washer 8 | |
| 30 | 10440001 | Washer 8 | |
| 31 | 10430001 | Nut М8 | |
| 32 | 10410780 | Bolt M8x10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
