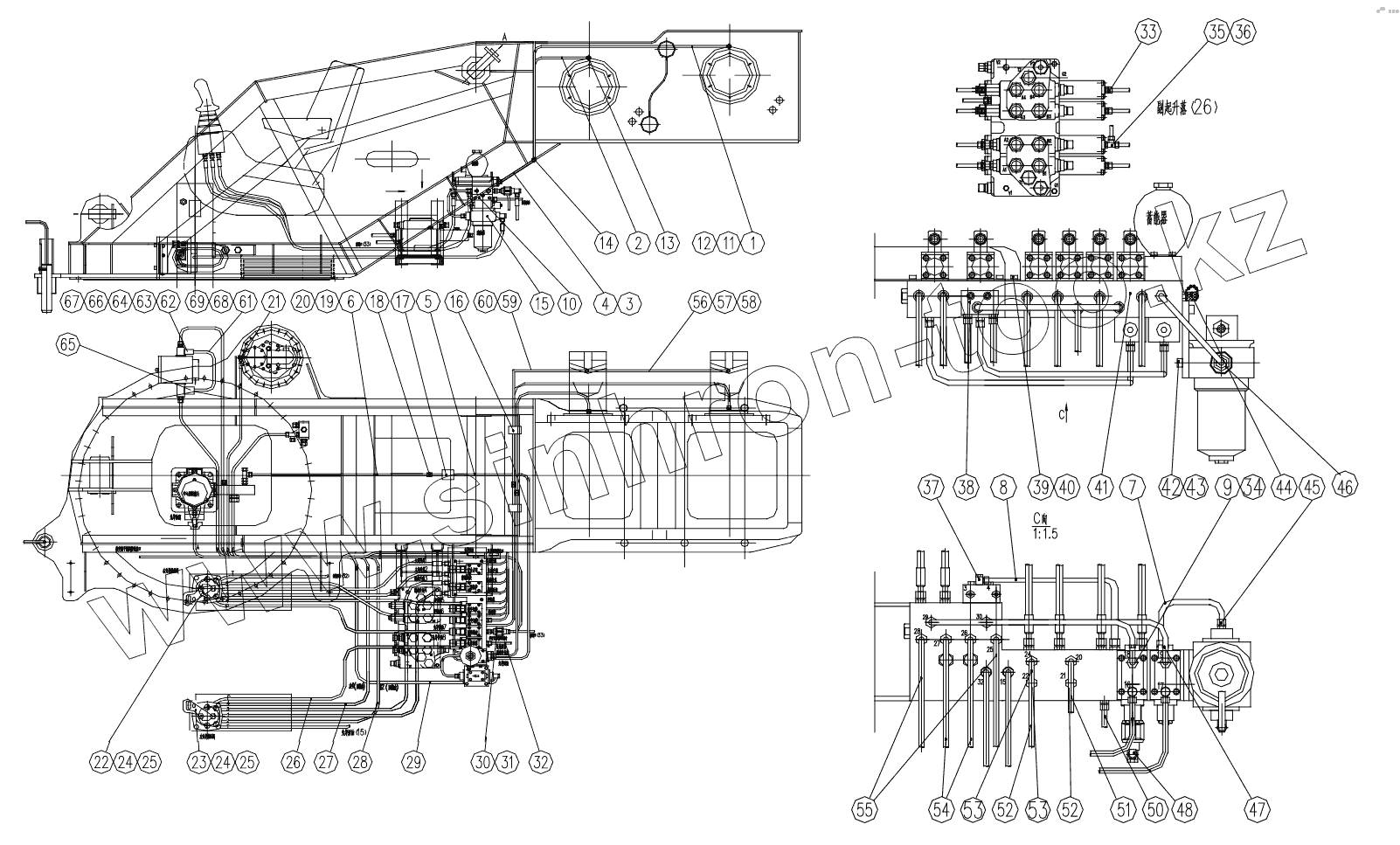

Каталог запасных частей к технике: XCMG QY25K5-I. 111201534 Guide control's Piping Plan
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
50
51
52
52
53
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 111201591 | Seamless tube | |
| 2 | 111201592 | Seamless tube | |
| 3 | 111201593 | Seamless tube | |
| 4 | 111201594 | Seamless tube | |
| 5 | 111201595 | Seamless tube | |
| 6 | 111201596 | Seamless tube | |
| 7 | 111201597 | Seamless tube | |
| 8 | 111201598 | Seamless tube | |
| 9 | 803104594 | Fitting | |
| 10 | 110500394 | Frame | |
| 11 | 805200001 | Nut 8 | |
| 12 | 803100237 | Cutting ring 8 | |
| 13 | 803102691 | Fitting G8 | |
| 14 | 803102711 | Fitting G8 | |
| 15 | 803100041 | Oil filter | |
| 16 | 803108010 | Clipe | |
| 17 | 803108121 | Clipe | |
| 18 | 803100631 | Fitting G10 | |
| 19 | 803100477 | Cutting ring10 | |
| 20 | 805200007 | Nut G10 | |
| 21 | 803103134 | Fitting E8 | |
| 22 | 803001827 | Right guide's contorl | |
| 23 | 803001828 | Left guide's contorl | |
| 24 | 805100058 | Bolt M6x30 | |
| 25 | 805300190 | Washer6 | |
| 26 | 803104575 | Hose | |
| 27 | 803104576 | Hose | |
| 28 | 803104577 | Hose | |
| 29 | 803104578 | Hose | |
| 30 | 803105271 | Fitting | |
| 31 | 803000394 | One-way throttle valve | |
| 32 | 803103853 | Hose | |
| 33 | 803104670 | Fitting | |
| 34 | 803600103 | Fitting | |
| 35 | 803103342 | Fitting | |
| 36 | 803104580 | Hose | |
| 37 | 803104674 | Fitting | |
| 38 | 803000133 | Solenoid valve | |
| 39 | 805100064 | Винт М8х20 | |
| 40 | 805300010 | Шайба 8 | |
| 41 | 803000079 | Control valve | |
| 42 | 805100173 | Bolt | |
| 43 | 805300014 | Шайба 10 | |
| 44 | 803110115 | Surveying pressing con | |
| 45 | 803104669 | Fitting | |
| 46 | 803104520 | Washer 33 | |
| 47 | 803104581 | Hose | |
| 48 | 803104579 | Hose | |
| 49 | Hose | Hose | |
| 50 | 803104582 | Hose | |
| 51 | 803104583 | Hose | |
| 52 | 803104584 | Hose | |
| 53 | 803104585 | Hose | |
| 54 | 803104586 | Hose | |
| 55 | 803104574 | Hose | |
| 56 | 803104484 | Adapter | |
| 57 | 111201604 | Seamless tube | |
| 58 | 111201605 | Seamless tube | |
| 59 | 111201606 | Seamless tube | |
| 60 | 111201607 | Seamless tube | |
| 61 | 12104299 | Seamless tube | |
| 62 | 803109487 | Shuttle Valve Kit | |
| 63 | 803602561 | Relay | |
| 64 | 803105784 | Fitting | |
| 65 | 803104962 | Fitting | |
| 66 | 803106188 | Fitting | |
| 67 | 803110998 | Fitting | |
| 68 | 803107912 | Nut | |
| 69 | 803103320 | Cutting ring | |
| 70 | 803106181 | Fitting |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
