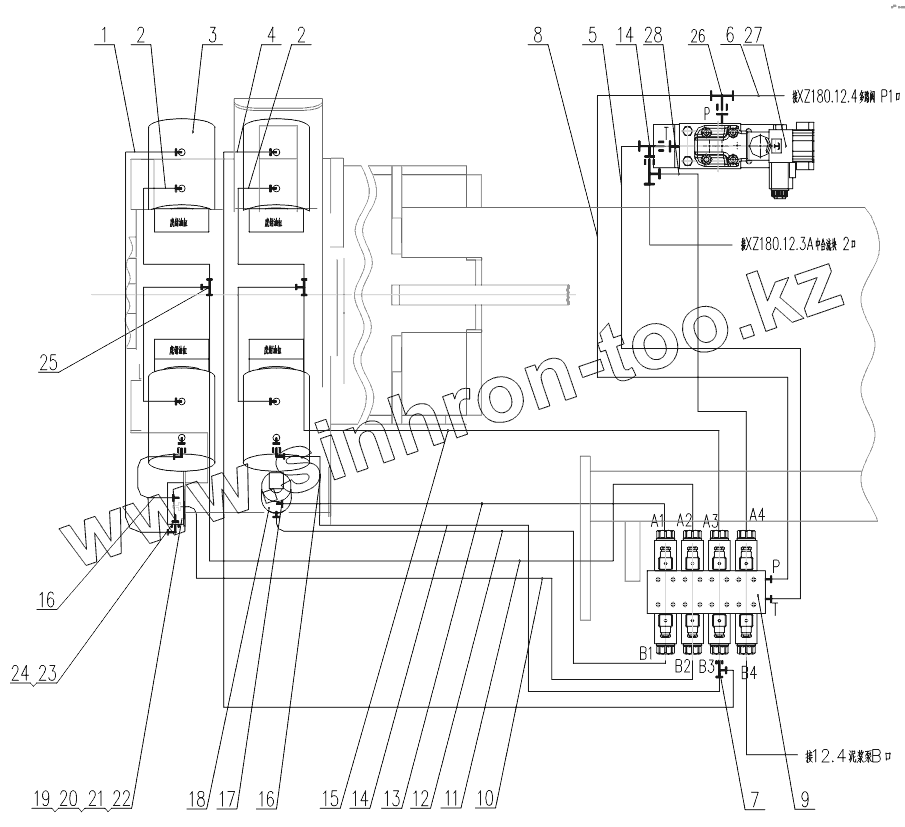

Каталог запасных частей к технике: XCMG ГНБ XZ-180. 0041712000 Hydraulic System
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 101027355 | Hose Assembly | |
| 2 | 101027356 | Hose Assembly | |
| 3 | 101000920 | Cylinder | |
| 4 | 101027566 | Hose Assembly | |
| 5 | 101024154 | Hose Assembly | |
| 6 | 101020833 | Hose Assembly | |
| 7 | 101020202 | Union | |
| 8 | 101024183 | Hose Assembly | |
| 9 | 101001405 | Electromagnetic Valve | |
| 10 | 101027357 | Hose Assembly | |
| 11 | 101027560 | Hose Assembly | |
| 12 | 101027358 | Hose Assembly | |
| 13 | 101027359 | Hose Assembly | |
| 14 | 101020559 | Three Way Joint | |
| 15 | 101027360 | Hose Assembly | |
| 16 | 101027561 | Hose Assembly | |
| 17 | 101025790 | Straight Joint | |
| 18 | 101000224 | Cylinder | |
| 19 | 101000216 | Valve | |
| 20 | 104000431 | Bolt | |
| 21 | 104030065 | Nut | |
| 22 | 104040009 | Washer 6 | |
| 23 | 101023455 | Joint | |
| 24 | 101020525 | Union | |
| 25 | 101020436 | Three Joint | |
| 26 | 101020438 | Three Way Joint | |
| 27 | 101001396 | Relief Alve | |
| 28 | 101020833 | Hose Assembly | |
| 29 | 101020202 | Union | |
| 30 | 101024209 | Hose Assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
