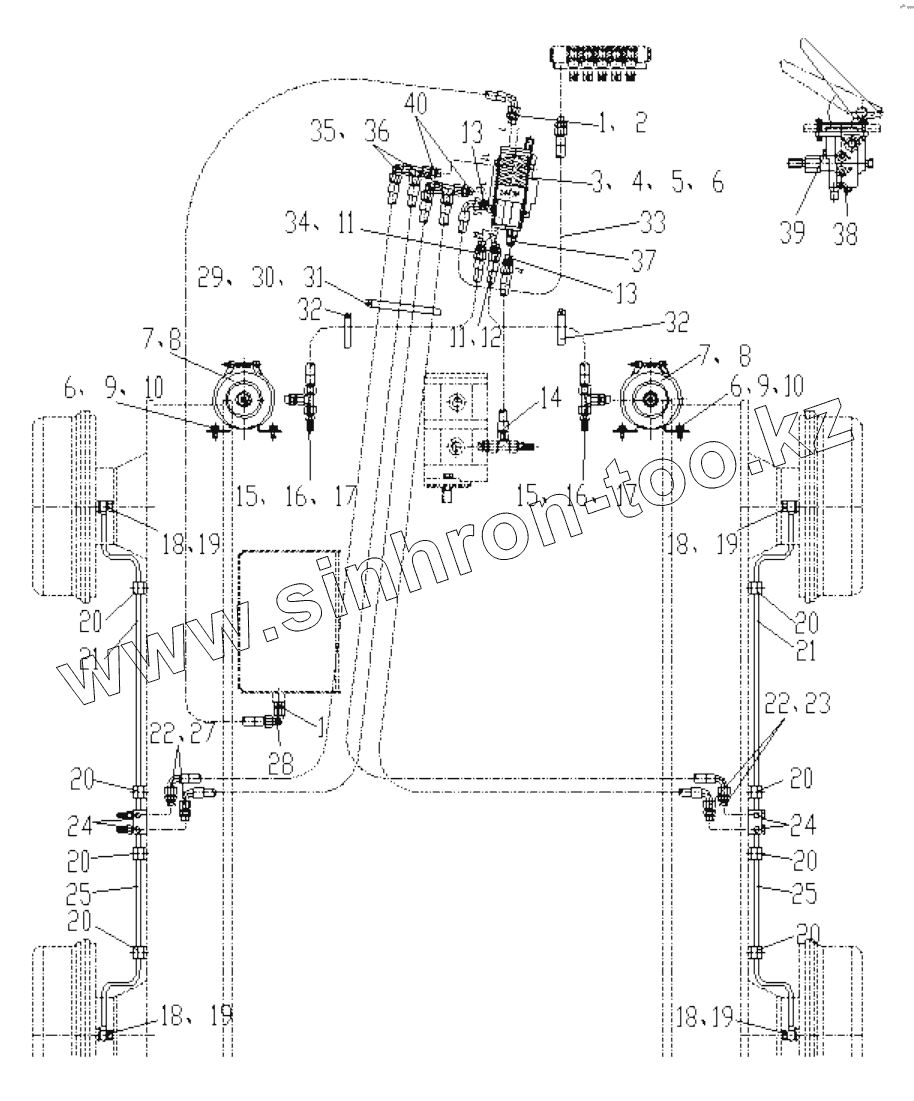

Каталог запасных частей к технике: XCMG Автогрейдер-GR135. 380301157 Brake Hydraulic System
1
1
2
3
4
5
6
6
6
7
7
8
8
9
9
10
10
11
11
12
13
13
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
20
20
20
20
20
20
21
21
22
22
23
24
24
25
25
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 803190517 | Joint | |
| 2 | 803191631 | Hose assembly | |
| 3 | 803010012 | Brake valve | |
| 4 | 380300726 | Plate | |
| 5 | 805100130 | Screw | |
| 6 | 805300010 | Шайба 8 | |
| 7 | 803202752 | Accumulator | |
| 8 | 801907073 | Accumulator clamp | |
| 9 | 805046503 | Bolt | |
| 10 | 805300069 | Шайба 8 | |
| 11 | 380200770 | Joint | |
| 12 | 803191731 | Hose ass'y | |
| 13 | 803190682 | Joint | |
| 14 | 803300139 | Hose ass'y | |
| 15 | 803191163 | Joint | |
| 16 | 803190520 | Triple union joint | |
| 17 | 803131879 | Pressure measure joint | |
| 18 | 805009809 | Bolt | |
| 19 | 805300024 | Шайба 14 | |
| 20 | 803190403 | Clip | |
| 21 | 380300880 | Metal tube assay | |
| 22 | 803190674 | Joint | |
| 23 | 803190811 | Hose ass'y | |
| 24 | 803192111 | Plug | |
| 25 | 380300881 | Metal tube ass'y | |
| 26 | 803190557 | Pressure measure joint | |
| 27 | 803190765 | Hose ass'y | |
| 28 | 803190731 | Right angle union joint | |
| 29 | 803199331 | Clamp | |
| 30 | 805000017 | Болт М8х25 | |
| 31 | 805200045 | Гайка М8 | |
| 32 | 803300171 | Clamp | |
| 33 | 803198202 | Hose ass'y | |
| 34 | 803191630 | Hose ass'y | |
| 35 | 803190764 | Triple union joint | |
| 36 | 803190761 | Right angle union joint | |
| 37 | 803611792 | Accumulator pressure switch | |
| 38 | 803611823 | Stoplight pressure switch | |
| 39 | 915302304 | Plug | |
| 40 | 380200771 | Joint |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
