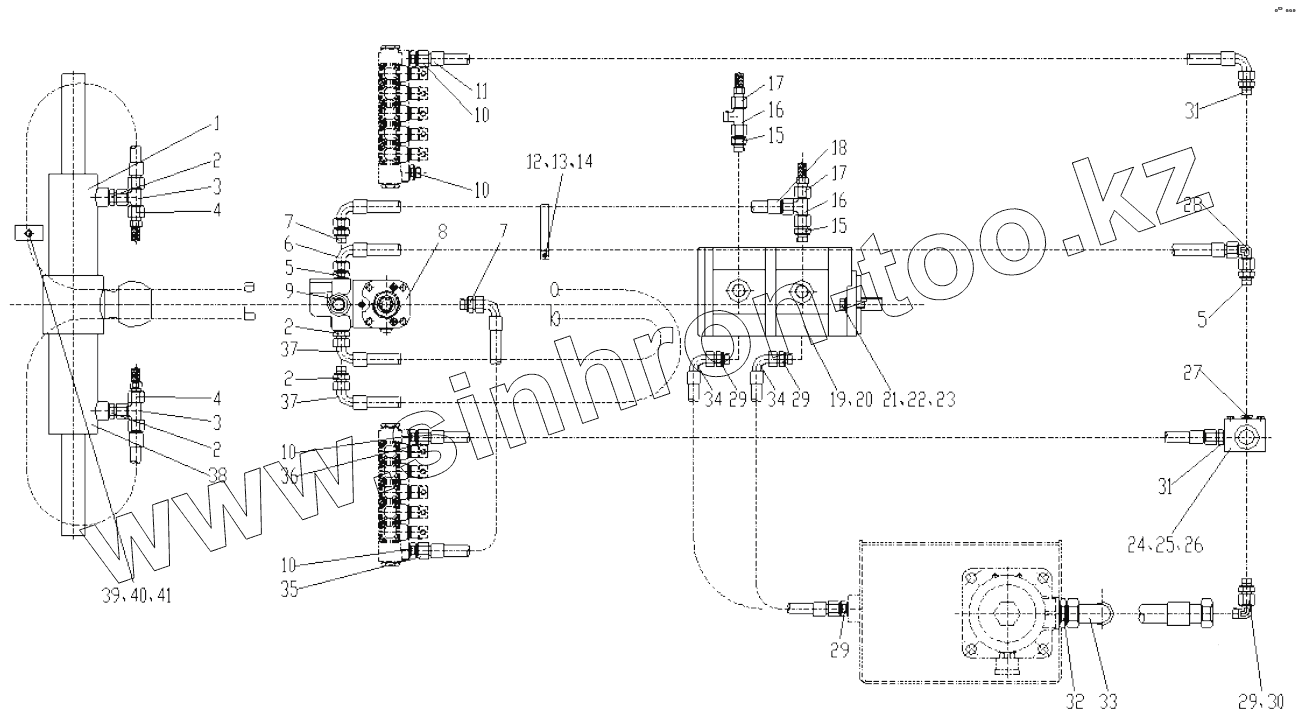

Каталог запасных частей к технике: XCMG Автогрейдер-GR135. 380301156 Steering Hydraulic System
1
2
2
2
2
3
3
4
4
5
5
6
7
7
8
9
10
10
10
10
11
12
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
31
31
32
33
34
34
35
36
37
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 380900708 | Front wheel steering cylinder | |
| 2 | 803190517 | Joint | |
| 3 | 803190777 | Triple union joint | |
| 4 | 803131879 | Pressure measure joint | |
| 5 | 803601023 | Joint | |
| 6 | 803191802 | Hose ass'y | |
| 7 | 803190768 | Joint | |
| 8 | 803010962 | Redirector | |
| 9 | 803010963 | Priority valve | |
| 10 | 803190755 | Joint | |
| 11 | 803300135 | Hose ass'y | |
| 12 | 803199331 | Clamp | |
| 13 | 805000017 | Болт М8х25 | |
| 14 | 805200045 | Гайка М8 | |
| 15 | 803190682 | Joint | |
| 16 | 803190710 | Nipple | |
| 17 | 803131880 | Pressure measure joint | |
| 18 | 803300140 | Hose ass'y | |
| 19 | 803045340 | Duplicate gear pump | |
| 20 | 380300729 | Washer | |
| 21 | 805000048 | Болт M12x35 | |
| 22 | 805300020 | Шайба 12 | |
| 23 | 805300018 | Шайба 12 | |
| 24 | 380300871 | Overflow valve | |
| 25 | 805000395 | Bolt | |
| 26 | 805302894 | Washer | |
| 27 | 803192136 | Plug | |
| 28 | 803190692 | Right angle union joint | |
| 29 | 803190685 | Joint | |
| 30 | 803190694 | Right angle union joint | |
| 31 | 803190445 | Joint | |
| 32 | 803190780 | Joint | |
| 33 | 803193810 | Hose ass'y | |
| 34 | 803191645 | Hose assembly | |
| 35 | 803300134 | Hose ass'y | |
| 36 | 803300136 | Hose ass'y | |
| 37 | 803190824 | Hose ass'y | |
| 38 | 380601235 | Front wheel steering cylinder | |
| 39 | 803190403 | Clip | |
| 40 | 805000525 | Болт М6х20 | |
| 41 | 805200053 | Гайка М6 |
