Каталог запасных частей к технике: XCMG Автогрейдер-GR135. 380301062 Frame
1
2
3
4
4
5
5
6
7
8
8
8
8
8
9
9
9
9
9
9
10
10
11
12
12
13
13
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
43
43
44
44
45
46
46
47
47
48
49
50
51
52
53
54
55
56
57
58
59
60
60
61
62
63
64
65
66
67
67
68
69
71
72
73
74
75
76
77
78

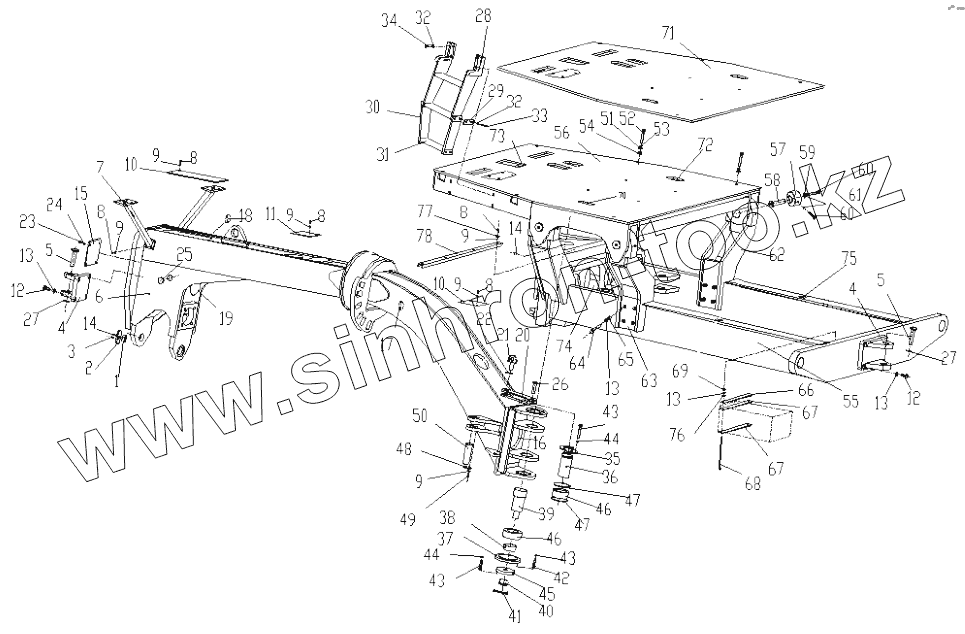

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 380300659 | Bearing | |
| 2 | 380300661 | Cover | |
| 3 | 805100525 | Bolt | |
| 4 | 381600403 | Hook base | |
| 5 | 380300783 | Hook pin | |
| 6 | 380300482 | Frame | |
| 7 | 380300773 | Front lamppost | |
| 8 | 805000018 | Болт М8х20 | |
| 9 | 805300010 | Шайба 8 | |
| 10 | 380300662 | Cover plate | |
| 11 | 380300664 | Cover plate | |
| 12 | 805000599 | Bolt | |
| 13 | 805302510 | Washer | |
| 14 | 801103215 | Oil cup | |
| 15 | 380300226 | Cover plate | |
| 16 | 380300665 | Rubber band | |
| 17 | 380300666 | Rubber ring | |
| 18 | 380300667 | Rubber ring | |
| 19 | 380300668 | Rubber band | |
| 20 | 380300663 | Lever | |
| 21 | 380900917 | Pin | |
| 22 | 805600222 | Cotter pin | |
| 23 | 805002055 | Bolt | |
| 24 | 805300030 | Шайба М6 | |
| 25 | 380300725 | Protective cap | |
| 26 | 805604528 | Pin shaft | |
| 27 | 380300770 | Elastic pin | |
| 28 | 380300813 | Ladder | |
| 29 | 380300682 | Washer | |
| 30 | 380300684 | Rubber band | |
| 31 | 380300683 | Cross pedal | |
| 32 | 805300014 | Шайба 10 | |
| 33 | 805000029 | Болт M10x40 | |
| 34 | 805000043 | Болт М10х30 | |
| 35 | 380300266 | Plate | |
| 36 | 380300669 | Upper joint pin | |
| 37 | 380300267 | Platen | |
| 38 | 380300685 | Sleeve | |
| 39 | 380300686 | Lower joint pin | |
| 40 | 381601130 | Nut | |
| 41 | 805600080 | Cotter pin | |
| 42 | 380300268 | Cover | |
| 43 | 805000727 | Болт М10х25 | |
| 44 | 805300014 | Шайба 10 | |
| 45 | 805100036 | Bolt | |
| 46 | 800515285 | Joint bearing | |
| 47 | 805400009 | Retainer | |
| 48 | 380300687 | Plate | |
| 49 | 805000017 | Болт М8х25 | |
| 50 | 380300269 | Pin shaft | |
| 51 | 380900857 | Washer | |
| 52 | 805000079 | Bolt | |
| 53 | 805300033 | Washer | |
| 54 | 805200067 | Гайка M14 | |
| 55 | 380300397 | Frame | |
| 56 | 380300255 | Cab base | |
| 57 | 380300674 | Vibration absorber | |
| 58 | 805604508 | Pin shaft | |
| 59 | 380300672 | Washer | |
| 60 | 805003889 | Bolt | |
| 61 | 805300018 | Шайба 12 | |
| 62 | 380300676 | Cab rear support | |
| 63 | 380300678 | Cab rear support | |
| 64 | 805000506 | Bolt | |
| 65 | 805200052 | Гайка М20 | |
| 66 | 380300673 | Plate | |
| 67 | 380300675 | Rubber pad | |
| 68 | 380300929 | Closing rod | |
| 69 | 805200048 | Гайка М10 | |
| 70 | 380900847 | Rubber ring | |
| 71 | 380300671 | Rubber | |
| 72 | 380900919 | Rubber ring | |
| 73 | 380900849 | Rubber ring | |
| 74 | 380300680 | Rubber ring | |
| 75 | 380300679 | Rubber cover | |
| 76 | 805300017 | Шайба 10 | |
| 77 | 805300117 | Шайба 8 | |
| 78 | 380300873 | Rubber pad |
