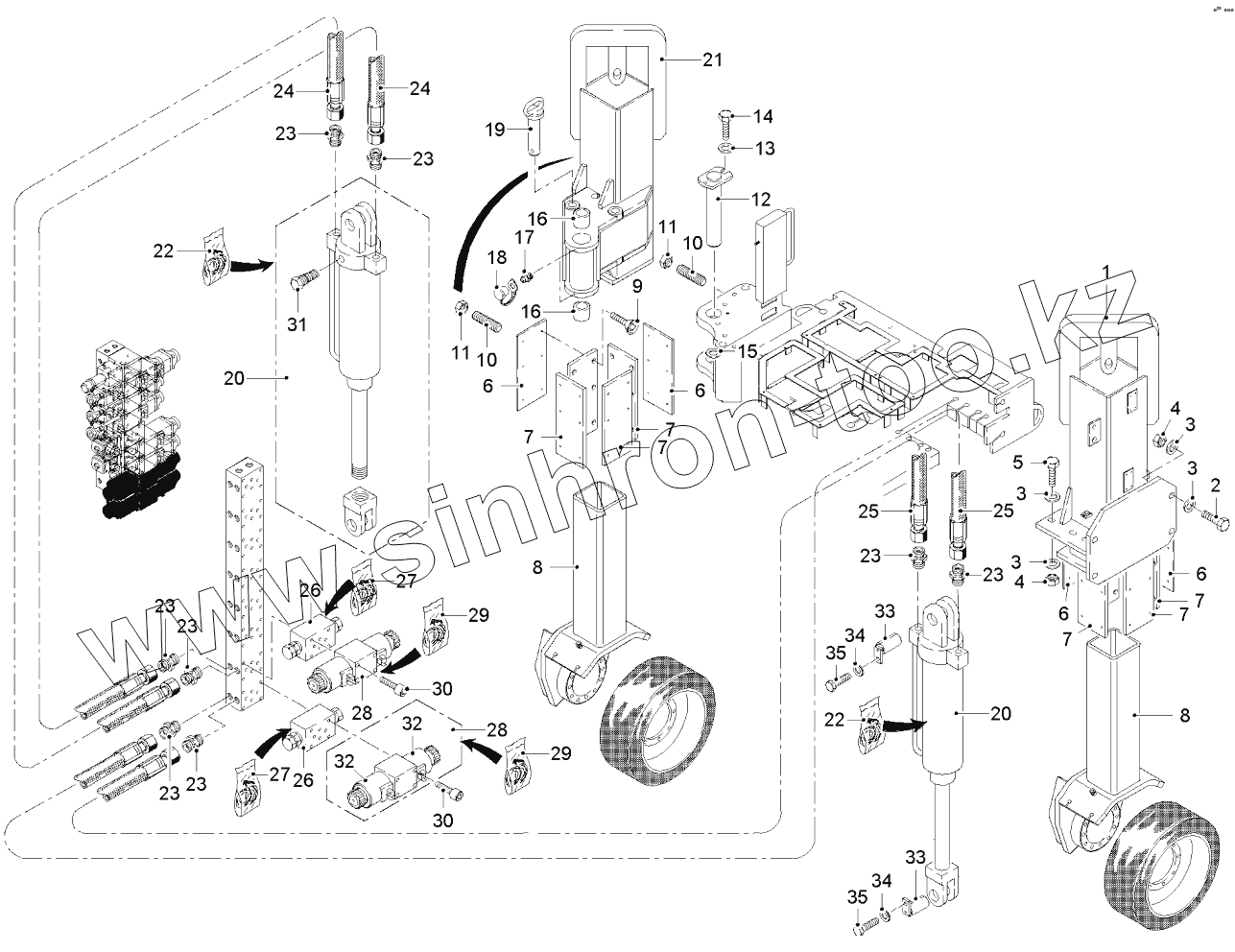

Каталог запасных частей к технике: WIRTGEN W600DC. HEIGHT ADJUSTMENT REAR
1
2
3
3
3
3
4
4
5
6
6
6
6
7
7
7
7
7
7
8
8
9
10
10
11
11
12
13
14
15
16
16
17
18
19
20
20
21
22
22
23
23
23
23
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
32
32
33
33
34
34
35
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 97706 | GUIDE TUBE | |
| 2 | 4619 | SCREW | |
| 3 | 29798 | WASHER | |
| 4 | 30392 | HEXAGON NUT | |
| 5 | 4656 | SCREW | |
| 6 | 89286 | RETAINING PLATE | |
| 7 | 71683 | SLIDING PLATE | |
| 8 | 97710 | WHEEL BRACKET | |
| 9 | 12244 | SCREW | |
| 10 | 89306 | THREADED PIN | |
| 11 | 37831 | HEXAGON NUT | |
| 12 | 97074 | BOLT | |
| 13 | 36126 | WASHER | |
| 14 | 4300 | SCREW | |
| 15 | 63407 | WASHER | |
| 16 | 37611 | BUSHING | |
| 17 | 1105 | GREASING NIPPLE | |
| 18 | 11181 | CAP | |
| 19 | 98330 | BOLT | |
| 20 | 97945 | HYDRAULIC CYLINDER | |
| 21 | 97707 | GUIDE TUBE | |
| 22 | 37904 | SET OF SEALS | |
| 23 | 30243 | MALE STUD COUPLING | |
| 24 | 99990 | HYDRAULIC HOSE | |
| 25 | 1644 | HYDRAULIC HOSE | |
| 26 | 95777 | FLOW REGULATOR VALVE | |
| 27 | 108933 | SET OF SEALS | |
| 28 | 114131 | DIRECTIONAL VALVE | |
| 29 | 114161 | SET OF SEALS | |
| 30 | 58916 | SCREW | |
| 31 | 82552 | NON-RETURN VALVE | |
| 32 | 114160 | SOLENOID | |
| 33 | 53194 | BOLT | |
| 34 | 4218 | SCREW | |
| 35 | 5271 | WASHER |
