Каталог запасных частей к технике: WIRTGEN W600DC. FORM CUTTER FB80 HT2
1
2
3
3
3
4
5
6
7
8
9
10
10
11
11
11
12
12
12
12
13
13
13
13
13
13
13
14
15
16
17
18
18
18
19
19
19
19
20
20
20
21
21
21
22
22
23
24
25
26
26
27
27
28
28
29
29
30
31
32
33
34
34
35
36
37
38
39
40
41
42

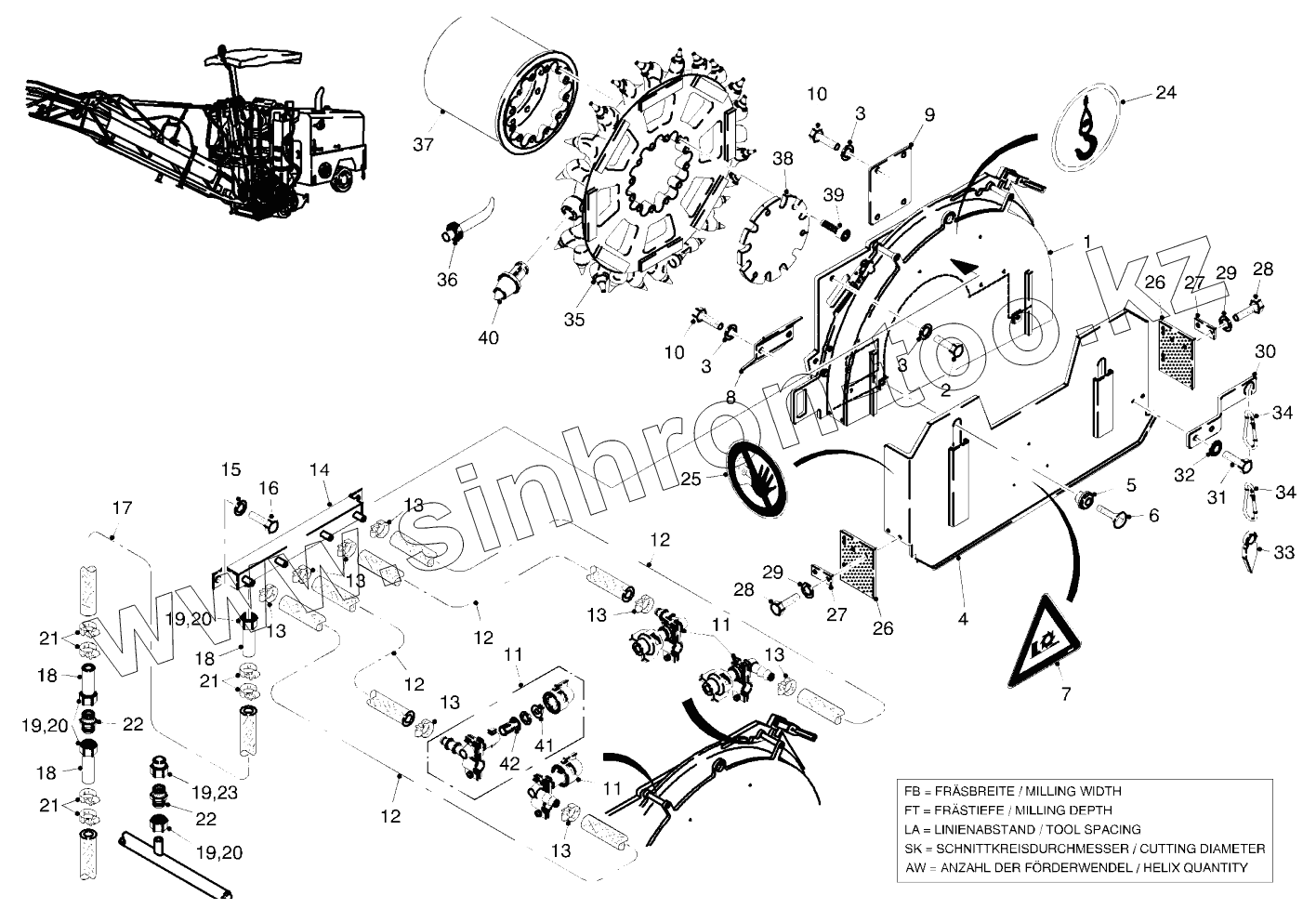

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 103209 | COVER | |
| 2 | 14403 | SCREW | |
| 3 | 5131 | WASHER | |
| 4 | 103232 | FOOT PROTECTOR OUTER | |
| 5 | 55283 | SLEEVE | |
| 6 | 7534 | SCREW | |
| 7 | 78010 | ALUMINIUM SIGN | |
| 8 | 95855 | GUIDE SHEET | |
| 9 | 97736 | PLATE | |
| 10 | 14402 | SCREW | |
| 11 | 72621 | NOZZLE UNIT | |
| 12 | 10860 | PVC HOSE | |
| 13 | 3286 | HOSE CLAMP | |
| 14 | 26763 | DISTRIBUTOR PIPE | |
| 15 | 5206 | WASHER | |
| 16 | 4178 | SCREW | |
| 17 | 24006 | PVC HOSE | |
| 18 | 54325 | PIPE | |
| 19 | 3367 | CAP NUT | |
| 20 | 3342 | CUTTING RING | |
| 21 | 3289 | HOSE CLAMP | |
| 22 | 9087 | MALE STUD COUPLING | |
| 23 | 3358 | DUMMY PLUG | |
| 24 | 55148 | STICKER | |
| 25 | 51212 | STICKER | |
| 26 | 78537 | WIPER RUBBER | |
| 27 | 32552 | STRIP | |
| 28 | 4180 | SCREW | |
| 29 | 5211 | WASHER | |
| 30 | 103607 | BRACKET | |
| 31 | 4179 | SCREW | |
| 32 | 5208 | WASHER | |
| 33 | 105894 | PLUMBLINE | |
| 34 | 10744 | SPRING HOOK | |
| 35 | 103945 | DRUM | |
| 36 | 45275 | EJECTOR DRIFT FOR PICKS | |
| 37 | 103946 | ADAPTER | |
| 38 | 103947 | COVER | |
| 39 | 4630 | SCREW | |
| 40 | 72261 | STANDARD PICKS | |
| 41 | 15827 | NOZZLE | |
| 42 | 74328 | VALVE FOR NOZZLE UNIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
