Каталог запасных частей к технике: WIRTGEN W600DC. DRUM SUSPENSION FB400/500/600
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
20
21
22
23
24
25
26
26
26
27
28
29
29
29
29
30
31
32
32
33
34
35
36
37
38
39
40
40
41
41
42
43
44

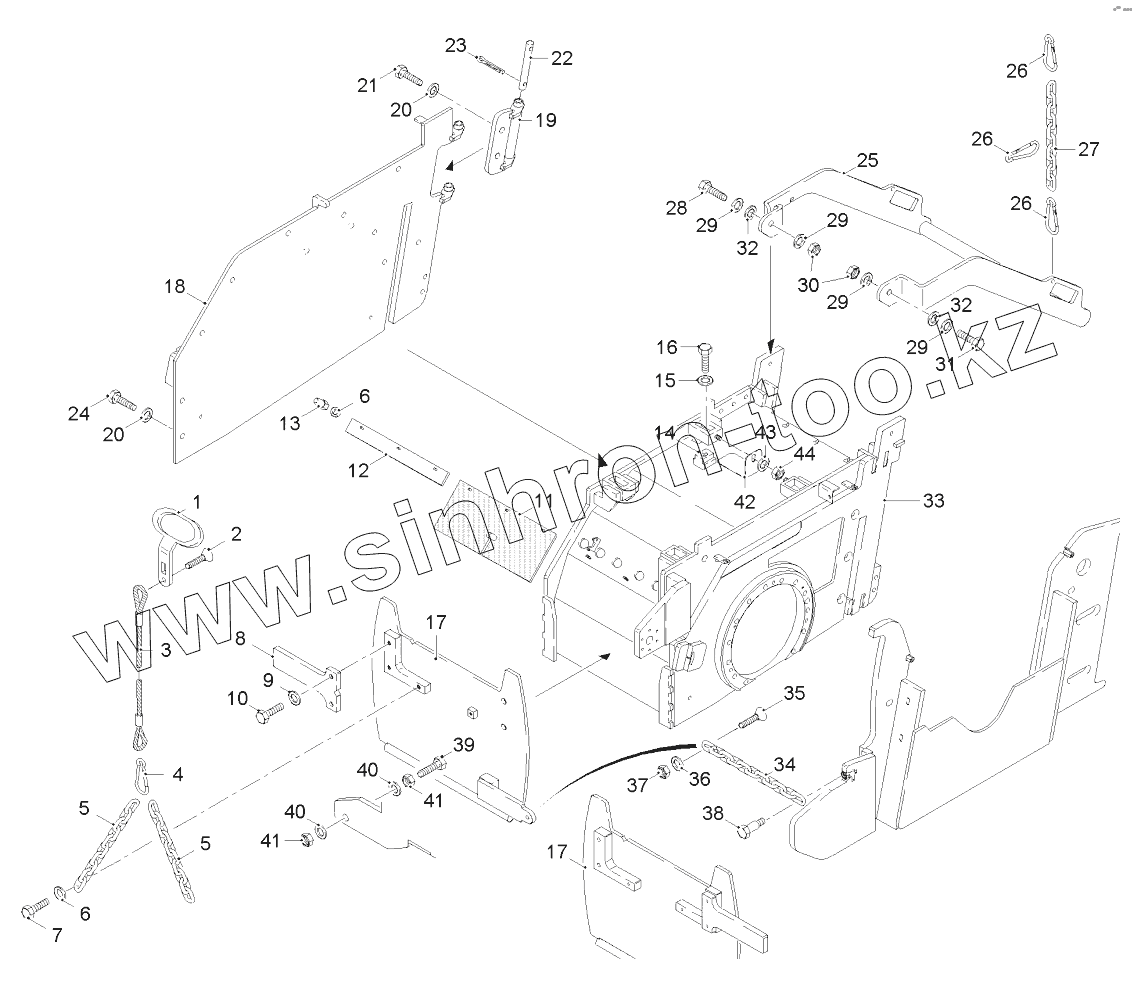

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 72798 | HANDLE | |
| 2 | 12244 | SCREW | |
| 3 | 104676 | WIRE ROPE | |
| 4 | 10744 | SPRING HOOK | |
| 5 | 10518 | CHAIN | |
| 6 | 5206 | WASHER | |
| 7 | 4179 | SCREW | |
| 8 | 106660 | DRIVER | |
| 9 | 5195 | WASHER | |
| 10 | 4262 | SCREW | |
| 11 | 103696 | SEALING RUBBER | |
| 12 | 37573 | RAIL | |
| 13 | 6683 | CAP NUT | |
| 14 | 57294 | T-SLOT NUT | |
| 15 | 32111 | WASHER | |
| 16 | 38470 | SCREW | |
| 17 | 120504 | DRUM SEALING | |
| 18 | 106499 | DRUM DOOR | |
| 19 | 106525 | HINGE | |
| 20 | 5129 | WASHER | |
| 21 | 4301 | SCREW | |
| 22 | 96599 | BOLT | |
| 23 | 5851 | SPLIT PIN | |
| 24 | 4299 | SCREW | |
| 25 | 110163 | PROTECTIVE HOOP | |
| 26 | 10745 | SPRING HOOK | |
| 27 | 110278 | CHAIN | |
| 28 | 4303 | SCREW | |
| 29 | 5131 | WASHER | |
| 30 | 5151 | HEXAGON NUT | |
| 31 | 4294 | SCREW | |
| 32 | 4829 | WASHER | |
| 33 | 97367 | MILLING DRUM HOUSING | |
| 34 | 119947 | CHAIN | |
| 35 | 26034 | SCREW | |
| 36 | 51958 | WASHER | |
| 37 | 5269 | HEXAGON NUT | |
| 38 | 119888 | SCREW | |
| 39 | 4366 | SCREW | |
| 40 | 5158 | WASHER | |
| 41 | 37831 | HEXAGON NUT | |
| 42 | 123614 | BENT PART | |
| 43 | 5211 | WASHER | |
| 44 | 12247 | HEXAGON NUT |
