Каталог запасных частей к технике: WIRTGEN W600DC. DRIVE/MILL.DRUM
1
2
3
4
5
6
7
8
9
9
9
10
10
11
11
12
13
14
15
15
16
17
18
19
20
21
21
22
22
23
24
25
26
27
27
27
27
27
27
27
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
41
41
42
43
44
45
46
47
48
49
50
52
52
52
53
53
54
54
55
56
57
58
61
62
63
64

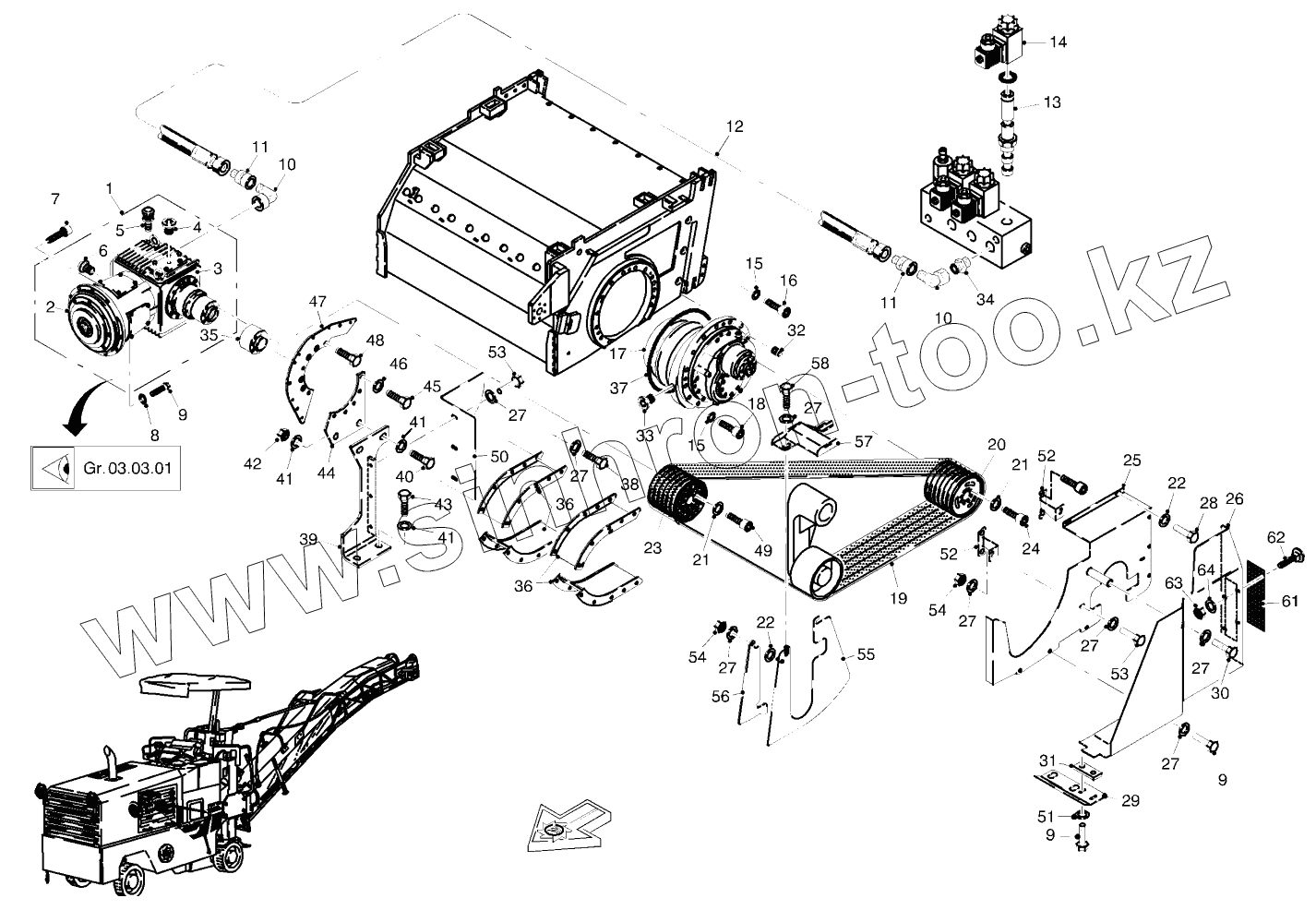

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 95691 | GEARBOX | |
| 2 | 70196 | COUPLING | |
| 3 | 89061 | GEARBOX | |
| 4 | 12186 | SCREWED SEALING PLUG | |
| 5 | 56824 | BREATHER FILTER | |
| 6 | 7164 | SCREWED SEALING PLUG | |
| 7 | 4424 | SCREW | |
| 8 | 5271 | WASHER | |
| 9 | 4220 | SCREW | |
| 10 | 31428 | ADJUSTABLE MALE STUD ELBOW | |
| 11 | 5047 | REDUCING COUPLING | |
| 12 | 20975 | HYDRAULIC HOSE | |
| 13 | 74326 | BASE CARTRIDGE | |
| 14 | 74327 | SOLENOID COIL | |
| 15 | 5160 | WASHER | |
| 16 | 4630 | SCREW | |
| 17 | 70197 | GEARBOX | |
| 18 | 4628 | SCREW | |
| 19 | 97153 | POWER BELT COMPOUND UNIT | |
| 20 | 109646 | V-BELT PULLEY | |
| 21 | 5197 | WASHER | |
| 22 | 5274 | WASHER | |
| 23 | 97146 | V-BELT PULLEY | |
| 24 | 4468 | SCREW | |
| 25 | 121393 | DRIVE BELT COVER | |
| 26 | 121370 | DRIVE BELT COVER | |
| 27 | 5275 | WASHER | |
| 28 | 4220 | SCREW | |
| 29 | 120196 | METAL SEALING SHEET | |
| 30 | 6639 | SCREW | |
| 31 | 114696 | PAD PLATE | |
| 32 | 1105 | GREASING NIPPLE | |
| 33 | 12186 | SCREWED SEALING PLUG | |
| 34 | 3622 | MALE STUD COUPLING | |
| 35 | 97729 | DISTANCE PIECE | |
| 36 | 101072 | V-BELT PROTECTION | |
| 37 | 18802 | O-RING SEAL | |
| 38 | 4218 | SCREW | |
| 39 | 121285 | GEARBOX SUPPORT | |
| 40 | 4360 | SCREW | |
| 41 | 23935 | WASHER | |
| 42 | 20562 | HEXAGON NUT | |
| 43 | 4363 | SCREW | |
| 44 | 103499 | GEARBOX SUPPORT | |
| 45 | 4266 | SCREW | |
| 46 | 5197 | WASHER | |
| 47 | 101071 | HOLDER | |
| 48 | 4265 | SCREW | |
| 49 | 73608 | SCREW | |
| 50 | 121687 | METAL SEALING SHEET | |
| 51 | 51958 | WASHER | |
| 52 | 114724 | HOLDER | |
| 53 | 4219 | SCREW | |
| 54 | 5269 | HEXAGON NUT | |
| 55 | 121334 | CLOSING SHEET | |
| 56 | 121327 | METAL SEALING SHEET | |
| 57 | 121352 | HOLDER | |
| 58 | 4215 | SCREW | |
| 59 | 82052 | SHAFT SEAL | |
| 60 | 79827 | SHAFT SEAL | |
| 61 | 171631 | PERFORATED SHEET | |
| 62 | 170005 | SCREW | |
| 63 | 12247 | HEXAGON NUT | |
| 64 | 5211 | WASHER |
