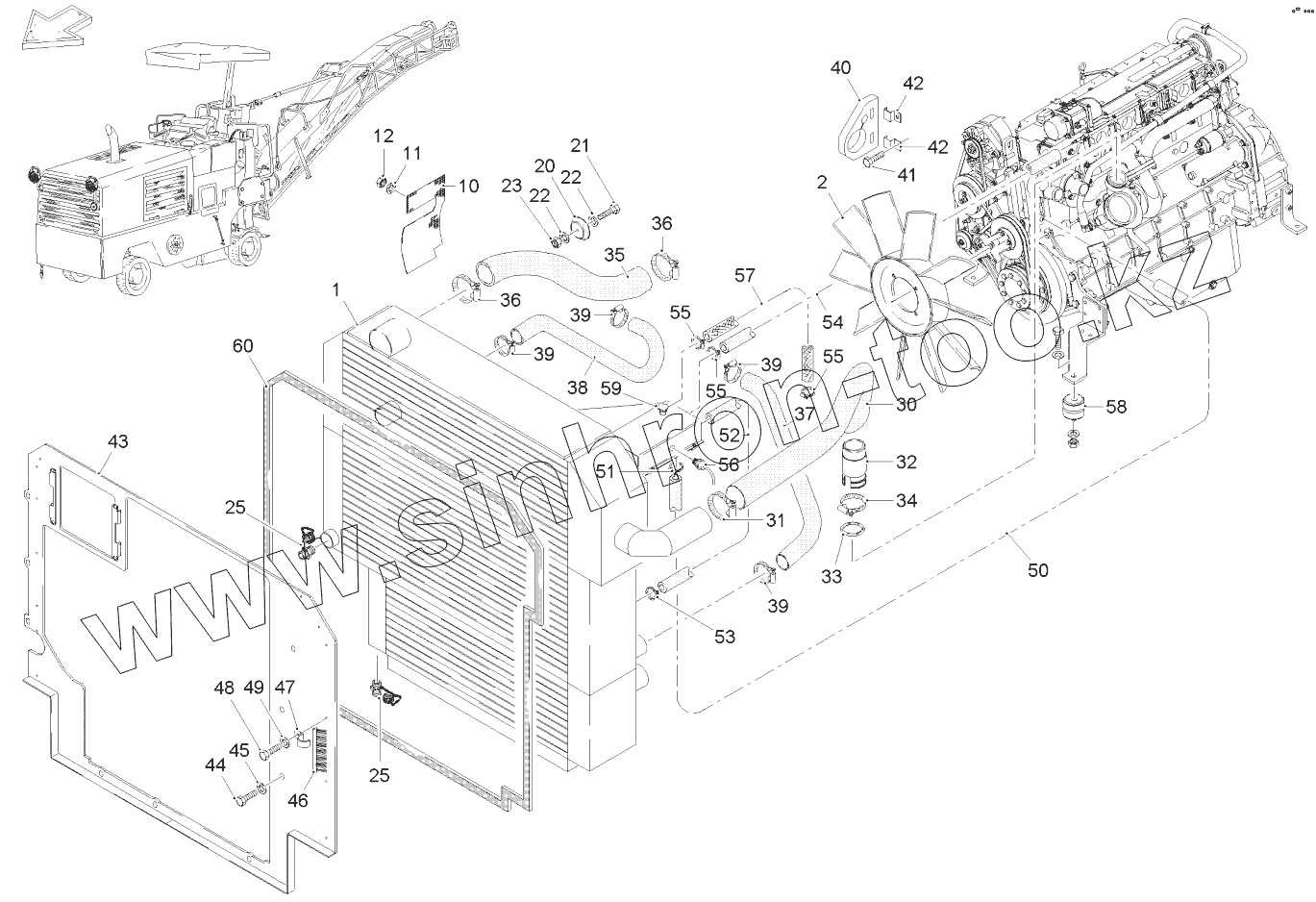

Каталог запасных частей к технике: WIRTGEN W600DC. COOLER / COOLING SYSTEM
1
2
10
11
12
20
21
22
22
23
25
25
30
31
32
33
34
35
36
36
37
38
39
39
39
39
40
41
42
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
55
56
57
58
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 178436 | COMBINED COOLER | |
| 2 | 157446 | FAN | |
| 10 | 175711 | PROTECTIVE GRID | |
| 11 | 5799 | WASHER | |
| 12 | 46115 | HEXAGON NUT | |
| 20 | 195816 | RUBBER BUFFER | |
| 21 | 4271 | SCREW | |
| 22 | 39994 | WASHER | |
| 23 | 5192 | HEXAGON NUT | |
| 25 | 120371 | VALVE | |
| 30 | 166248 | SHAPED RUBBER HOSE | |
| 31 | 146981 | WORM DRIVE HOSE CLIP | |
| 32 | 169699 | EXTENSION | |
| 33 | 82551 | O-RING SEAL | |
| 34 | 140038 | HOSE CLAMP | |
| 35 | 166250 | AIR HOSE | |
| 36 | 146981 | WORM DRIVE HOSE CLIP | |
| 37 | 166256 | WATER HOSE | |
| 38 | 166255 | WATER HOSE | |
| 39 | 148157 | HOSE CLAMP | |
| 40 | 169589 | HOLDER | |
| 41 | 4178 | SCREW | |
| 42 | 169598 | STOP | |
| 43 | 170507 | PARTITION PANEL | |
| 44 | 4179 | SCREW | |
| 45 | 51957 | WASHER | |
| 46 | 59137 | BRUSH STRIP | |
| 47 | 16250 | PIPE CLIP | |
| 48 | 5940 | SCREW | |
| 49 | 5800 | WASHER | |
| 50 | 93118 | COOLING-WATER HOSE | |
| 51 | 3289 | HOSE CLAMP | |
| 52 | 158387 | COOLING-WATER HOSE | |
| 53 | 3287 | HOSE CLAMP | |
| 54 | 158387 | COOLING-WATER HOSE | |
| 55 | 3287 | HOSE CLAMP | |
| 56 | 154819 | LEVEL SWITCH | |
| 57 | 20597 | PVC HOSE | |
| 58 | 195829 | RUBBER BUFFER | |
| 59 | 159864 | COOLER LID | |
| 60 | 77825 | SEALING RUBBER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
