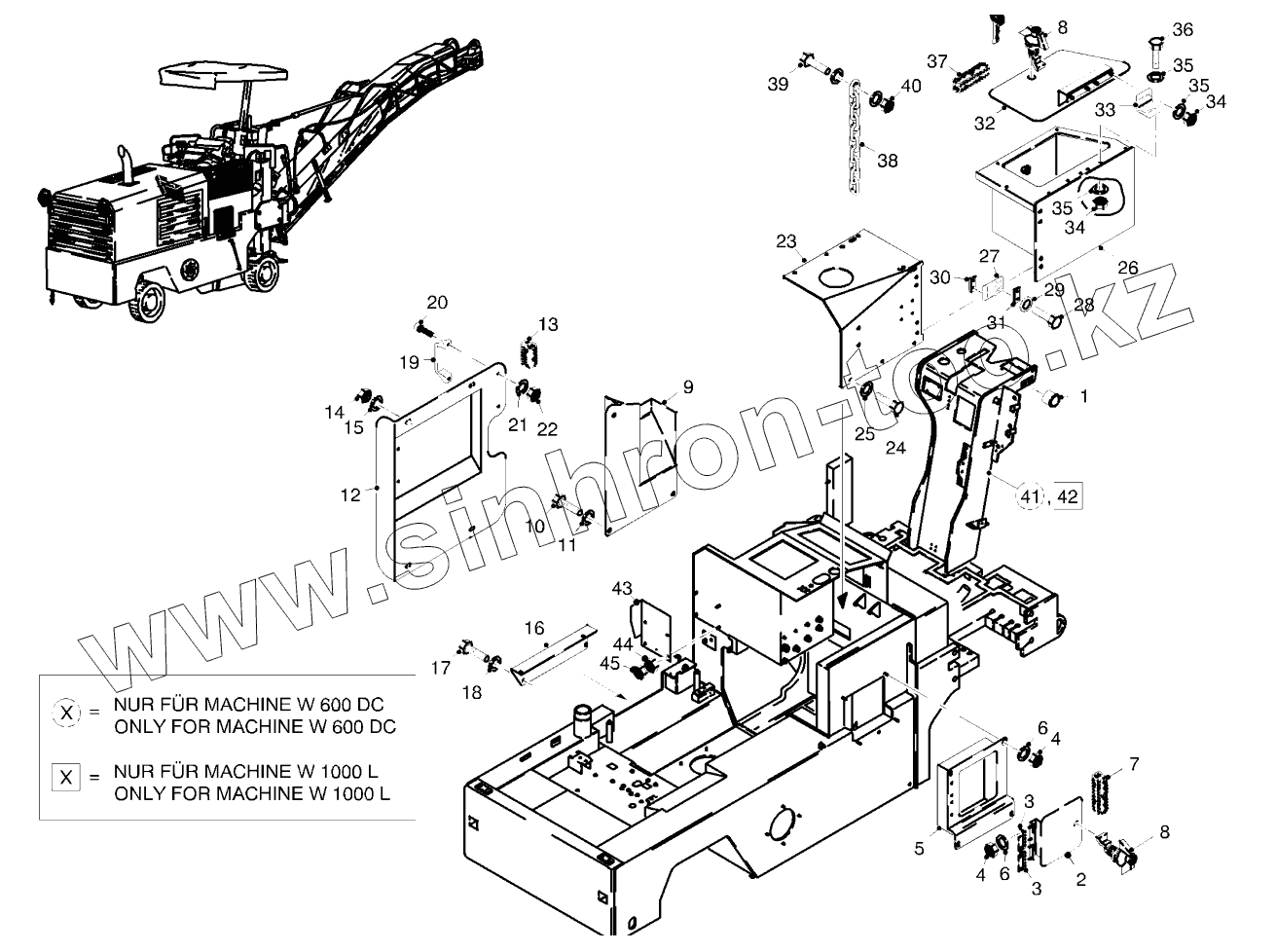

Каталог запасных частей к технике: WIRTGEN W600DC. CHASSIS / COVERS
1
2
3
3
4
4
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
35
35
36
37
38
39
40
41
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 174264 | BUSHING | |
| 2 | 103383 | DOOR | |
| 3 | 60032 | HINGE | |
| 4 | 12247 | HEXAGON NUT | |
| 5 | 98204 | COVER | |
| 6 | 5206 | WASHER | |
| 7 | 21281 | SEALING RUBBER | |
| 8 | 93747 | LOCK | |
| 9 | 98263 | COVER | |
| 10 | 4218 | SCREW | |
| 11 | 5274 | WASHER | |
| 12 | 99132 | COVER | |
| 13 | 21281 | SEALING RUBBER | |
| 14 | 12247 | HEXAGON NUT | |
| 15 | 5511 | HOLDER SYSTEM | |
| 16 | 102088 | COVER | |
| 17 | 4178 | SCREW | |
| 18 | 51957 | WASHER | |
| 19 | 57480 | PLASTIC HANDLE | |
| 20 | 6075 | SCREW | |
| 21 | 5800 | WASHER | |
| 22 | 46115 | HEXAGON NUT | |
| 23 | 104199 | HOOD | |
| 24 | 4219 | SCREW | |
| 25 | 5271 | WASHER | |
| 26 | 104290 | TOOL BOX | |
| 27 | 78841 | FRAME JOINT FOR HOOD | |
| 28 | 4221 | SCREW | |
| 29 | 5274 | WASHER | |
| 30 | 40767 | RAIL | |
| 31 | 72290 | STRIP | |
| 32 | 104321 | DOOR | |
| 33 | 60032 | HINGE | |
| 34 | 12247 | HEXAGON NUT | |
| 35 | 5206 | WASHER | |
| 36 | 4178 | SCREW | |
| 37 | 21281 | SEALING RUBBER | |
| 38 | 58467 | CHAIN | |
| 39 | 5943 | SCREW | |
| 40 | 5810 | HEXAGON NUT | |
| 41 | 165861 | CHASSIS | |
| 42 | 165860 | CHASSIS | |
| 43 | 175208 | HEAT SHIELD | |
| 44 | 5268 | HEXAGON NUT | |
| 45 | 5269 | HEXAGON NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
