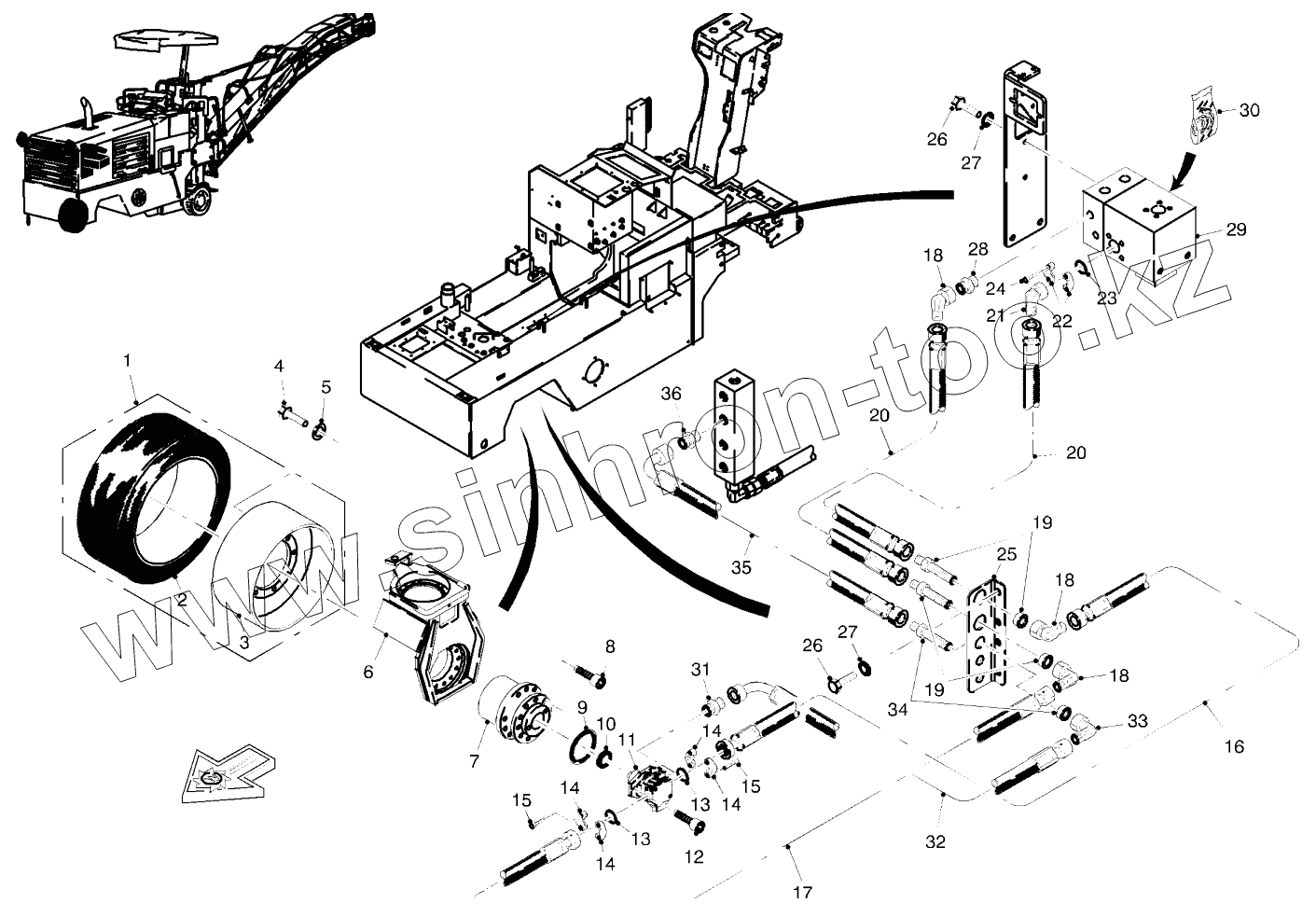

Каталог запасных частей к технике: WIRTGEN W600DC. ADVANCE DRIVE FRONT 3-WHEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
15
16
17
18
18
18
19
19
20
20
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 111868 | WHEEL | |
| 2 | 56052 | SOLID RUBBER TYRE | |
| 3 | 111863 | RIM | |
| 4 | 75899 | SCREW | |
| 5 | 65604 | STRAIN WASHER | |
| 6 | 111854 | WHEEL BRACKET | |
| 7 | 76490 | GEARBOX | |
| 8 | 4490 | SCREW | |
| 9 | 8040 | O-RING SEAL | |
| 10 | 80607 | SHAFT SEAL | |
| 11 | 90051 | HYDRAULIC MOTOR | |
| 12 | 4468 | SCREW | |
| 13 | 11009 | O-RING SEAL | |
| 14 | 4145 | SAE FLANGE | |
| 15 | 4418 | SCREW | |
| 16 | 99935 | HYDRAULIC HOSE | |
| 17 | 99942 | HYDRAULIC HOSE | |
| 18 | 3992 | ADJUSTABLE MALE STUD ELBOW | |
| 19 | 4990 | BULKHEAD COUPLING | |
| 20 | 48953 | HYDRAULIC HOSE | |
| 21 | 61492 | ANGLE FLANGE SCREWING | |
| 22 | 47190 | SAE FLANGE | |
| 23 | 10765 | O-RING SEAL | |
| 24 | 4371 | SCREW | |
| 25 | 102147 | BULKHEAD ANGLE | |
| 26 | 4179 | SCREW | |
| 27 | 5208 | WASHER | |
| 28 | 3547 | MALE STUD COUPLING | |
| 29 | 89083 | FLOW DIVIDER | |
| 30 | 79010 | SET OF SEALS | |
| 31 | 1114 | MALE STUD COUPLING | |
| 32 | 4043 | HYDRAULIC HOSE | |
| 33 | 31428 | ADJUSTABLE MALE STUD ELBOW | |
| 34 | 3928 | BULKHEAD COUPLING | |
| 35 | 54372 | HYDRAULIC HOSE | |
| 36 | 3934 | MALE STUD COUPLING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
