Каталог запасных частей к технике: WIRTGEN W200. VCS DISCHARGE CONVEYOR
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
17
17
18
18
19
19
19
19
20
20
21
22
24
24
25
25
25
25
26
26
27
27
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
29
29
30
30
31
31
32
32
36
36
37
37
37
37
38
38
39
39
40
40
41
42
43
44
46
46
47
48
49
50
52
53
54
55
56
57
60
61
62
63
64

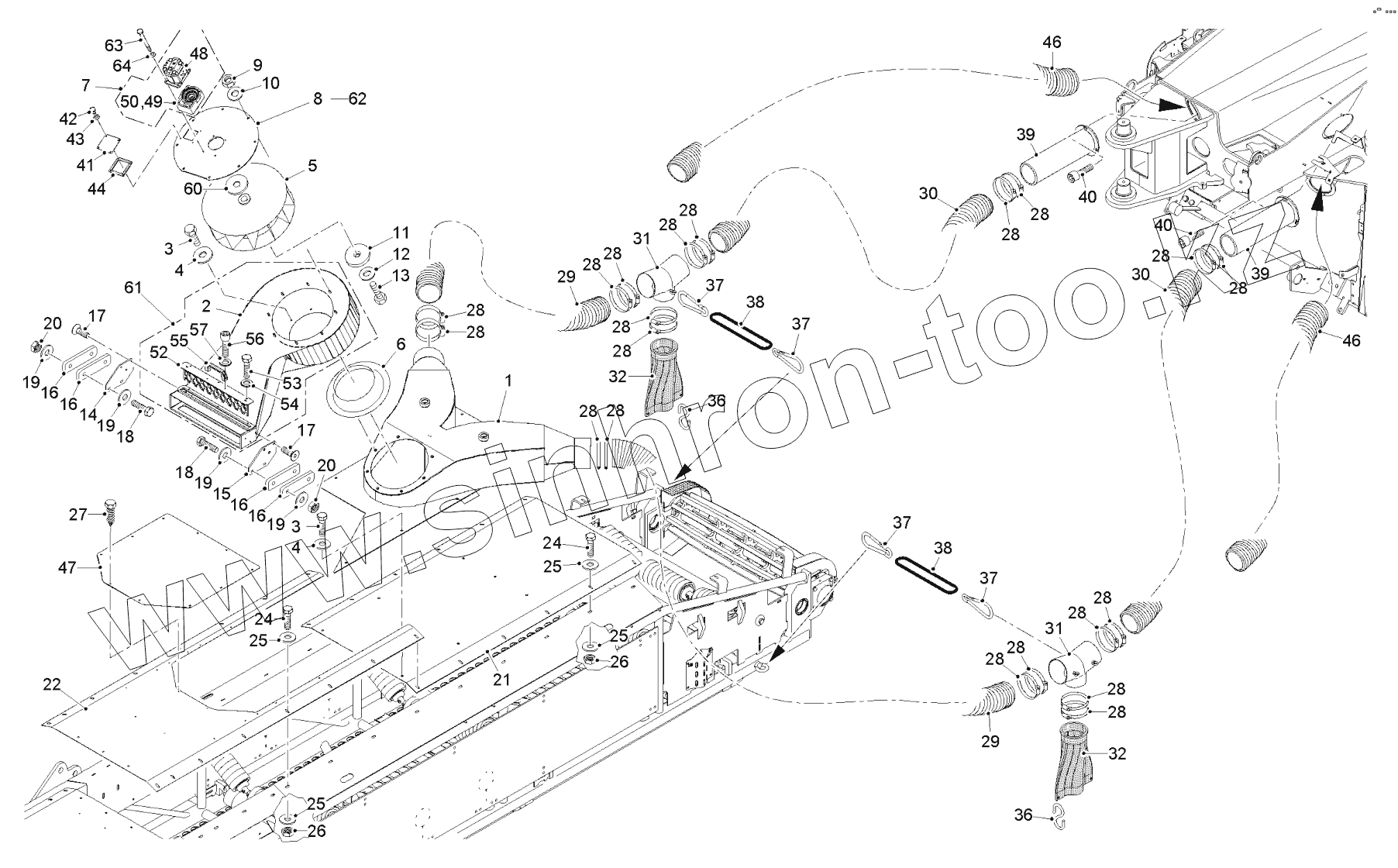

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2326719 | SUCTION PORT | |
| 2 | 171885 | HOUSING | |
| 3 | 4179 | SCREW | |
| 4 | 51957 | WASHER | |
| 5 | 190627 | VENTILATOR WHEEL | |
| 6 | 190628 | NOZZLE | |
| 7 | 2097719 | HYDRAULIC MOTOR | |
| 8 | 2544506 | HOLDER | |
| 9 | 12247 | HEXAGON NUT | |
| 10 | 5206 | WASHER | |
| 11 | 2054705 | WASHER | |
| 12 | 5206 | WASHER | |
| 13 | 4180 | SCREW | |
| 14 | 190664 | ADAPTER RIGHT | |
| 15 | 192513 | ADAPTER LEFT | |
| 16 | 2120222 | DISTANCE PIECE | |
| 17 | 7203 | SCREW | |
| 18 | 4212 | SCREW | |
| 19 | 5275 | WASHER | |
| 20 | 5269 | HEXAGON NUT | |
| 21 | 2120214 | COVER HOOD | |
| 22 | 2166249 | COVER HOOD | |
| 24 | 4180 | SCREW | |
| 25 | 5211 | WASHER | |
| 26 | 12247 | HEXAGON NUT | |
| 27 | 12410 | SCREW | |
| 27 | 12410 | SCREW | |
| 28 | 39569 | HOSE CLAMP | |
| 29 | 2138266 | AIR HOSE | |
| 30 | 2169627 | AIR HOSE | |
| 31 | 185053 | T-PIECE | |
| 32 | 2141373 | TUBE VALVE | |
| 36 | 70204 | HOOK | |
| 37 | 10744 | SPRING HOOK | |
| 38 | 70203 | RUBBER ENDLESS | |
| 39 | 2162423 | AIR PIPE | |
| 40 | 4416 | SCREW | |
| 41 | 2090321 | PLATE | |
| 42 | 5939 | SCREW | |
| 43 | 5800 | WASHER | |
| 44 | 2096815 | SEALING | |
| 46 | 2146835 | AIR HOSE | |
| 47 | 2161616 | LID | |
| 48 | 2097720 | HYDRAULIC MOTOR | |
| 49 | 2096298 | FRONT BEARING | |
| 50 | 2096299 | SLEEVE | |
| 52 | 2435279 | PROTECTIVE GRID | |
| 53 | 4178 | SCREW | |
| 54 | 5206 | WASHER | |
| 55 | 57480 | PLASTIC HANDLE | |
| 56 | 6075 | SCREW | |
| 57 | 5800 | WASHER | |
| 58 | 4181 | SCREW | |
| 59 | 5206 | WASHER | |
| 60 | 2509774 | WASHER | |
| 61 | 2537747 | FAN COVER KIT | |
| 62 | 2097924 | HOLDER | |
| 63 | 4194 | SCREW | |
| 64 | 5206 | WASHER |
