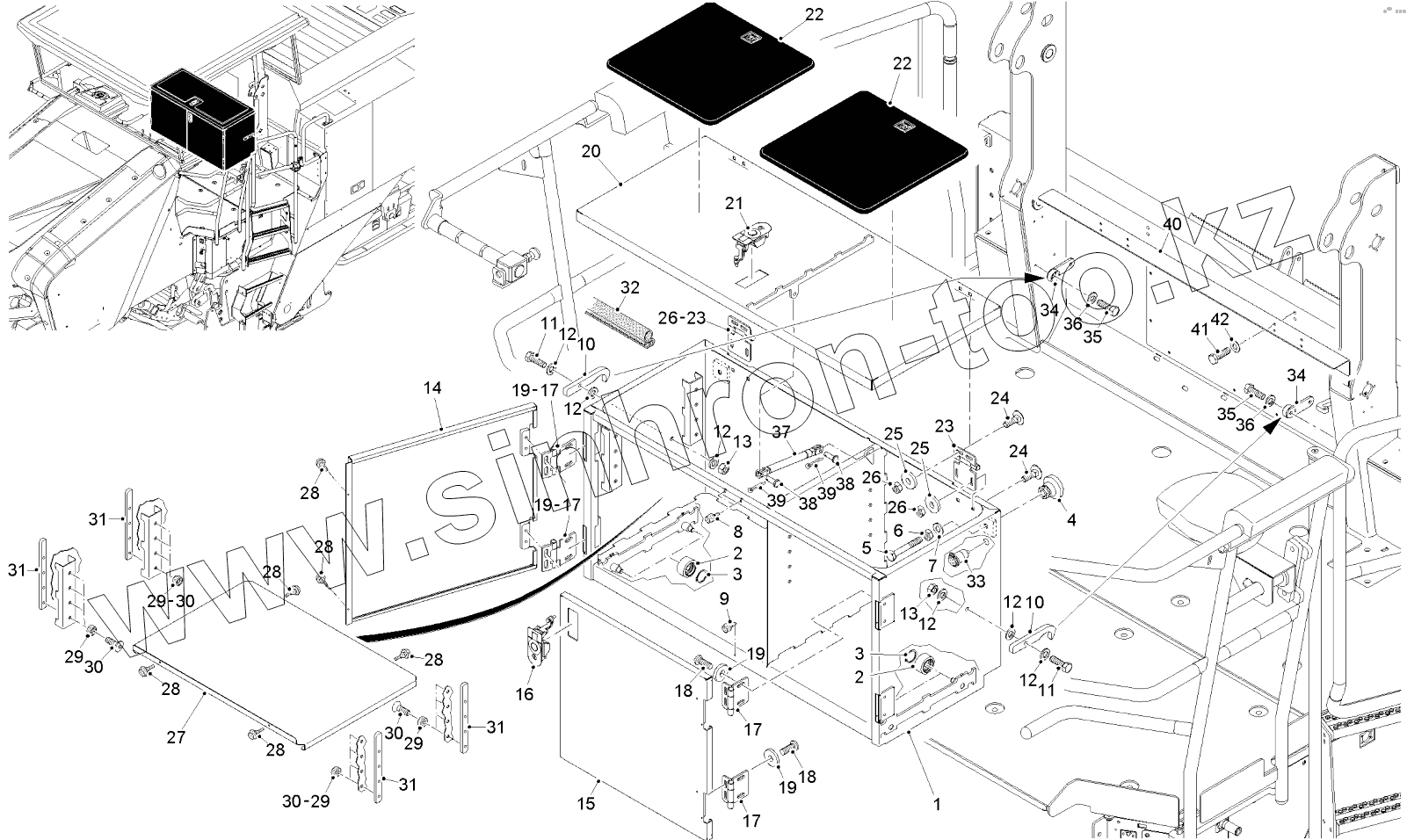

Каталог запасных частей к технике: WIRTGEN W200. STORAGE COMPARTMENT
1
2
2
3
3
4
5
6
7
8
9
10
10
11
11
12
12
12
12
12
12
13
13
14
15
16
17
17
17
17
18
18
19
19
19
19
20
21
22
22
23
23
24
24
25
25
26
26
26
27
28
28
28
28
28
28
29
29
29
29
30
30
30
30
31
31
31
31
32
33
34
34
35
35
36
36
37
38
38
39
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2451650 | CRATE | |
| 2 | 2362556 | TRACK ROLLER | |
| 3 | 10320 | CIRCLIP | |
| 4 | 2488125 | JOINT | |
| 5 | 4215 | SCREW | |
| 6 | 5267 | HEXAGONAL NUT | |
| 7 | 5274 | WASHER | |
| 8 | 2402332 | RUBBER BUFFER | |
| 9 | 2415139 | RUBBER BUFFER | |
| 10 | 2478845 | HOOK | |
| 11 | 4221 | SCREW | |
| 12 | 5274 | WASHER | |
| 13 | 5269 | HEXAGON NUT | |
| 14 | 2488417 | DOOR LH | |
| 15 | 2488418 | DOOR RH | |
| 16 | 2404318 | FASTENER | |
| 17 | 2432386 | HINGE | |
| 18 | 183371 | SCREW | |
| 19 | 51957 | WASHER | |
| 20 | 2451649 | FLAP | |
| 21 | 2404318 | FASTENER | |
| 22 | 2563384 | SEAT SUPPORT | |
| 23 | 2432386 | HINGE | |
| 24 | 160477 | SCREW | |
| 25 | 51957 | WASHER | |
| 26 | 12247 | HEXAGON NUT | |
| 27 | 2488415 | INSERTED PART | |
| 28 | 2201133 | RUBBER BUFFER | |
| 29 | 176485 | WASHER | |
| 30 | 7698 | SCREW | |
| 31 | 2504377 | STRIP | |
| 32 | 21281 | SEALING RUBBER | |
| 33 | 7909 | PLUG SOCKET | |
| 34 | 2487764 | HOLDER | |
| 35 | 4179 | SCREW | |
| 36 | 5206 | WASHER | |
| 37 | 2314261 | GAS SPRING | |
| 38 | 64591 | BOLT | |
| 39 | 9843 | SPLIT PIN | |
| 40 | 2478823 | COVER | |
| 41 | 5941 | SCREW | |
| 42 | 5800 | WASHER |
