Каталог запасных частей к технике: WIRTGEN W200. SCRAPER FB2200
1
2
2
3
3
4
4
5
6
7
9
9
10
10
11
11
12
12
13
13
15
16
17
17
18
18
18
18
19
19
19
19
20
20
21
21
22
22
22
22
22
22
23
24
25
26
27
27
28
28
29
30
30
31
32
33
33
34
34
35
35
36
36
37
37
38
38
39
40
40
41
42
43
44
45
46
47
48
49
50
58
59
60
61
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
71

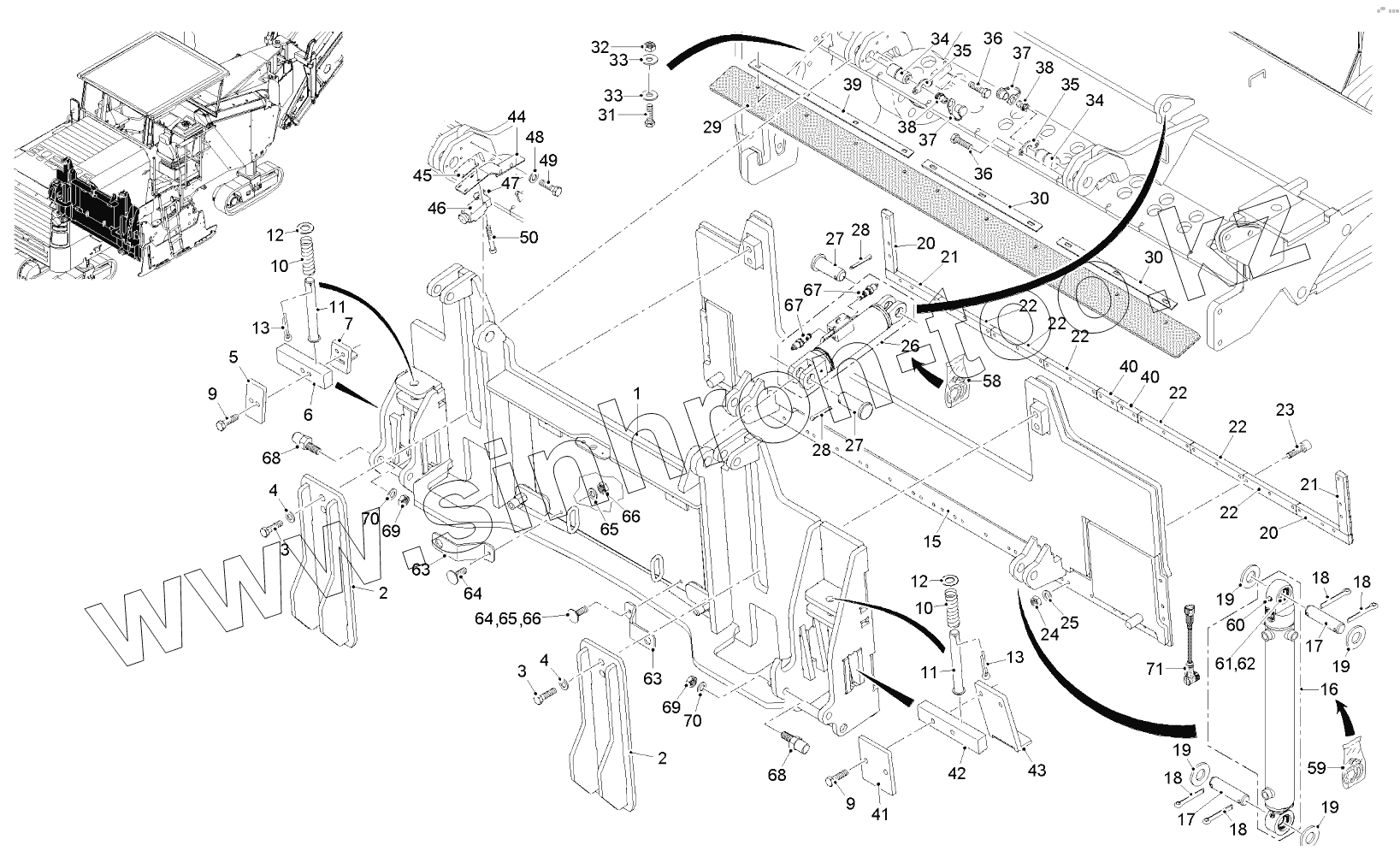

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2115725 | SCRAPER BLADE,TOP PART | |
| 2 | 2127678 | GUIDE RAIL | |
| 3 | 4616 | SCREW | |
| 4 | 4822 | WASHER | |
| 5 | 2103778 | GUIDE PLATE | |
| 6 | 2103779 | GUIDANCE | |
| 7 | 2103782 | GUIDING SHEET | |
| 9 | 4309 | SCREW | |
| 10 | 2111036 | COMPRESSION SPRING | |
| 11 | 2111037 | BOLT | |
| 12 | 4826 | WASHER | |
| 13 | 5854 | SPLIT PIN | |
| 15 | 2115582 | SCRAPER BLADE,BASE PART | |
| 16 | 2103460 | HYDRAULIC CYLINDER W POSITION MEASURING | |
| 17 | 2130449 | BOLT | |
| 18 | 5854 | SPLIT PIN | |
| 19 | 4826 | WASHER | |
| 20 | 44639 | SCRAPER BLADE | |
| 21 | 44638 | SCRAPER BLADE | |
| 22 | 43408 | SCRAPER BLADE | |
| 23 | 4418 | SCREW | |
| 24 | 5269 | HEXAGON NUT | |
| 25 | 5274 | WASHER | |
| 26 | 2232627 | HYDRAULIC CYLINDER | |
| 27 | 110316 | BOLT | |
| 28 | 5854 | SPLIT PIN | |
| 29 | 2116591 | SEALING RUBBER | |
| 30 | 37573 | RAIL | |
| 31 | 5616 | SCREW | |
| 32 | 5268 | HEXAGON NUT | |
| 33 | 5275 | WASHER | |
| 34 | 134474 | BOLT | |
| 35 | 134475 | SUPPORT | |
| 36 | 4218 | SCREW | |
| 37 | 9065 | GREASING NIPPLE | |
| 38 | 11181 | CAP | |
| 39 | 2100531 | STRIP | |
| 40 | 56731 | SCRAPER BLADE B 100 | |
| 41 | 2137259 | GUIDE PLATE | |
| 42 | 2115745 | GUIDANCE | |
| 43 | 2115829 | GUIDING SHEET | |
| 44 | 2125991 | BENT PART | |
| 45 | 2118311 | PLATE | |
| 46 | 137941 | LIMIT SWITCH | |
| 47 | 17000 | ROLLER LEVER | |
| 48 | 5274 | WASHER | |
| 49 | 4219 | SCREW | |
| 50 | 5493 | SCREW | |
| 58 | 2111746 | SET OF SEALS | |
| 59 | 2113310 | SET OF SEALS | |
| 60 | 1105 | GREASING NIPPLE | |
| 61 | 61960 | PIVOTING BEARING | |
| 62 | 61961 | LOCKING RING | |
| 63 | 2154582 | HOLDER | |
| 64 | 159621 | SCREW | |
| 65 | 5275 | WASHER | |
| 66 | 5269 | HEXAGON NUT | |
| 67 | 133385 | VALVE CARTRIDGE | |
| 68 | 2256124 | ECCENTRIC BOLT | |
| 69 | 30392 | HEXAGON NUT | |
| 70 | 4822 | WASHER | |
| 71 | 2139608 | ADAPTER CABLE |
