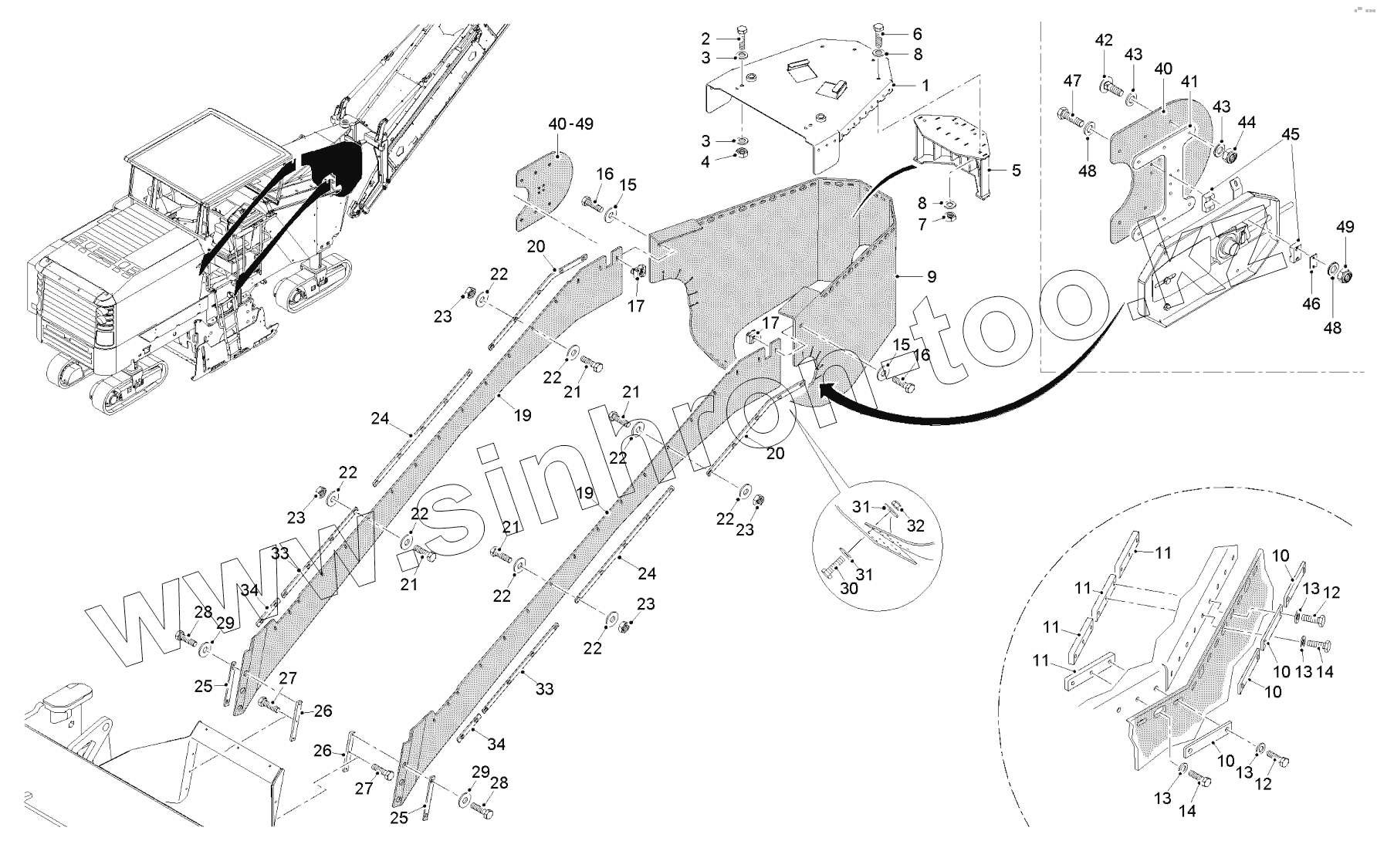

Каталог запасных частей к технике: WIRTGEN W200. PRIM.CONVEYOR MATERIAL GUIDING
1
2
3
3
4
5
6
7
8
8
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
19
19
20
20
21
21
21
21
22
22
22
22
22
22
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
31
31
32
33
33
34
34
40
40
41
42
43
43
44
45
46
47
48
48
49
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2116355 | CONVEYOR UNIT | |
| 2 | 4307 | SCREW | |
| 3 | 5131 | WASHER | |
| 4 | 5151 | HEXAGON NUT | |
| 5 | 2116236 | IMPACT SHEET | |
| 6 | 15717 | SCREW | |
| 7 | 5151 | HEXAGON NUT | |
| 8 | 5131 | WASHER | |
| 9 | 2115950 | COVERING RUBBER | |
| 10 | 144760 | RAIL | |
| 11 | 2128143 | STRIP | |
| 12 | 4221 | SCREW | |
| 13 | 5274 | WASHER | |
| 14 | 4218 | SCREW | |
| 15 | 5275 | WASHER | |
| 16 | 4222 | SCREW | |
| 17 | 2112628 | NUT | |
| 19 | 2113448 | RUBBER | |
| 20 | 2113371 | HOLDER | |
| 21 | 4221 | SCREW | |
| 22 | 5275 | WASHER | |
| 23 | 5269 | HEXAGON NUT | |
| 24 | 2103395 | STRIP | |
| 25 | 2186446 | STRIP | |
| 26 | 2199014 | STRIP | |
| 27 | 4179 | SCREW | |
| 28 | 4181 | SCREW | |
| 29 | 5275 | WASHER | |
| 30 | 4264 | SCREW | |
| 31 | 4828 | WASHER | |
| 32 | 5192 | HEXAGON NUT | |
| 33 | 2229127 | STRIP | |
| 34 | 45570 | STRIP | |
| 40 | 2556146 | SEALING RUBBER | |
| 41 | 2556136 | HOLDER | |
| 42 | 131753 | SCREW | |
| 43 | 5211 | WASHER | |
| 44 | 12247 | HEXAGON NUT | |
| 45 | 4119 | PIPE CLIP | |
| 46 | 4128 | COVER PLATE | |
| 47 | 5967 | SCREW | |
| 48 | 5800 | WASHER | |
| 49 | 46115 | HEXAGON NUT |
